YWF2E-400 Air Louver Diffuser Gravity Louvred Grill Vent Fan

YWF2E-400 Air Louver Diffuser Gravity Louvred Grill Vent Fan thumbnail-1
YWF2E-400 Air Louver Diffuser Gravity Louvred Grill Vent Fan photo-1
US$ 20 - 75 MOQ: 1 Piece
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Cast Iron
Contact Supplier Request Quote Chat Now
Taizhou Hangda Electromechanical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Cast Iron
Place of Origin Zhejiang, China
Brand Name hangyan
Model Number YWF2E-400
Voltage 220v
Power 530W
Air Volume 6480m3/h
Speed 2350r/min
Certification CCC, CE

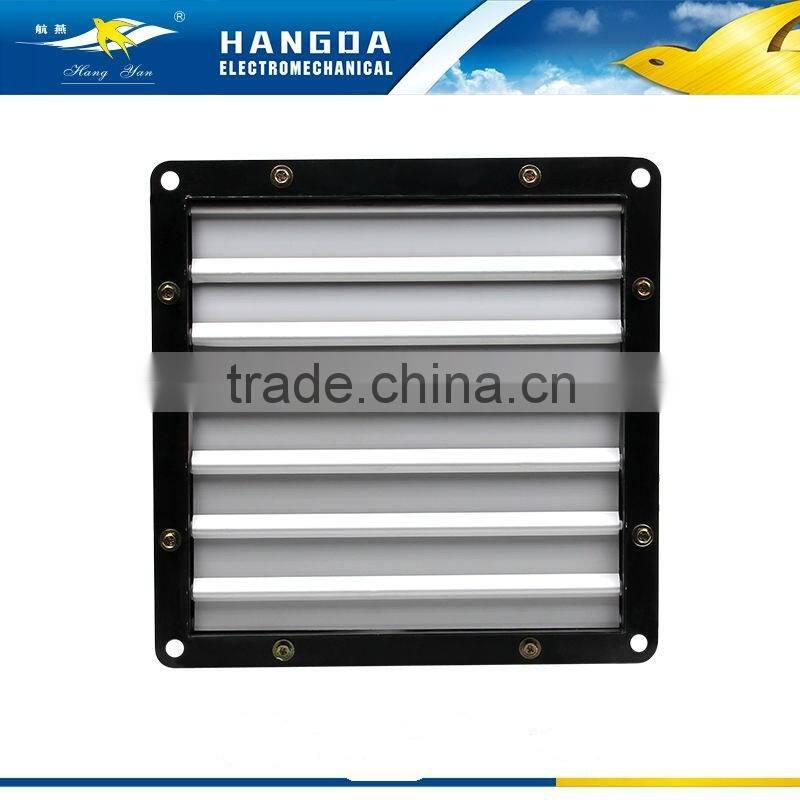

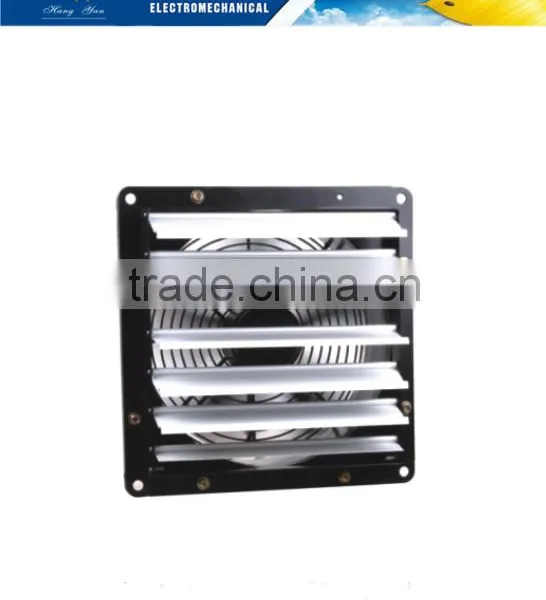

◊ Product picture



YWF2E-400 Air Louver diffuser Gravity louvred grill vent fan

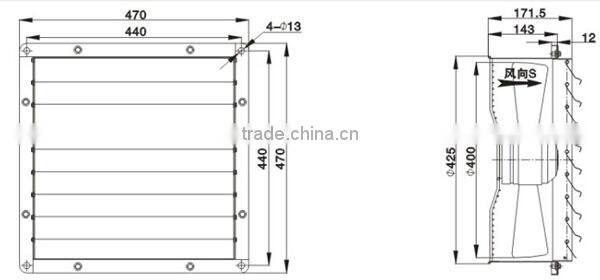

◊ Drawing



YWF2E-400 Air Louver diffuser Gravity louvred grill vent fan

YWF2E-400 Air Louver diffuser Gravity louvred grill vent fan



YWF2E-400 Air Louver diffuser Gravity louvred grill vent fan

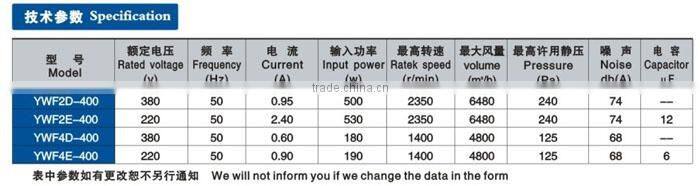

◊ Specification



YWF2E-400 Air Louver diffuser Gravity louvred grill vent fan

◊ Model Description



YWF

4

E

-

400

S

-

5

L

-

G

1.

2.

3.



4.

5.



6.

7.



8.

1.YWF-External Rotor Axial Fan

2.Motor pole number:2-2poles,4-4poles.6-6poles,8-8poles

3.D:3-phases motor,E-single-phase motor

4.Blade diameter:400-blade diameter is 400mm

5.Wind code:S-induced draft,B-blow

6.Blade number:5-5blades

7.Wind leaf shape:L--falciform,F--aquare type,LT--continuum

8.Fan type:G-pipeline gaotong,A-short barrel,

           Fa-terms of frame short barrel,Fg-aspects box

           Gaotong,W-meshenclosure type.

◊ application



Due to the features of high efficiency,low noise,low vibration,short axial length and maintenance-free,this series fan can be used in a broader application scope including in the fields of air-conditioning,refrigeration,ventilation and etc.

This series of motor is applicable for an environment temperature among-30°C-60°C,with an altitude below 1000 meters.

◊ Features

1.29 years production experience

2. high efficiency,low noise,low vibration,short axial length and maintenance-free

3.100% copper wire

4.1 year warranty

5.CCC,CE

◊ Company Introdution & Production Process



YWF2E-400 Air Louver diffuser Gravity louvred grill vent fan





 YWF2E-400 Air Louver diffuser Gravity louvred grill vent fan
