external rotor vane axial fan oscillating fan
- 100000 Piece / Pieces per Month
- ningbo/shanghai
- T/T Credit Card
You May Like
Product Details
Electric Current Type | AC | Mounting | Duct Fan | |
Blade Material | Stainless Steel | Place of Origin | Zhejiang, China | |
Brand Name | hangyan | Model Number | YWF4D-450 oscillating fan | |
Voltage | 380V | Power | 210w | |
Air Volume | 5410m³/h | Speed | 1390rpm | |
Certification | CCC, CE | After-sales Service Provided | No overseas service provided |
Product Description
YWF | 4 | E | - | 400 | S | - | 5 | L | - | G |
1. | 2. | 3. |
| 4. | 5. |
| 6. | 7. |
| 8. |
1.YWF-External Rotor Axial Fan
2.Motor pole number:2-2poles,4-4poles.6-6poles,8-8poles
3.D:3-phases motor,E-single-phase motor
4.Blade diameter:400-blade diameter is 400mm
5.Wind code:S-induced draft,B-blow
6.Blade number:5-5blades
7.Wind leaf shape:L--falciform,F--aquare type,LT--continuum
8.Fan type:G-pipeline gaotong,A-short barrel,
Fa-terms of frame short barrel,Fg-aspects box
Gaotong,W-meshenclosure type.

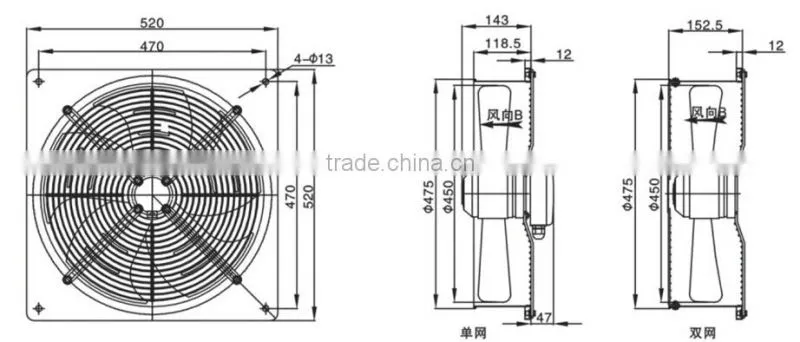

◊ Oscillating fan Drawing

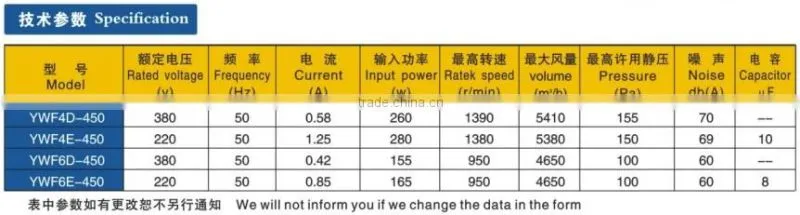

◊ Oscillating fan Specification
What is the detail of our advantage ?
Structure: The new outer rotor fan’s impeller is mounted directly on a rotating outer rotor’s excircle , impeller rotates together with the external rotor motor, motor’s main shaft is stationary.
Stability: impeller and external rotor are fasten to the outer rotor’s excircle by soldering or press fitting to form a whole. No secondary assembly errors, greater reliability and stability, less vibration.
Performance: more energy efficient, the national energy efficient products.
Noise: impellers after aerodynamic design again to ensure that the premise of wind capacity, lower noise, high efficiency, energy saving effect is more obvious.
Cooling: The motor is mounted in the middle of the fan impeller, better thermal performance, The motor itself has reached the maximum cooling effect and longer life.
Shape and weight: whole elegant appearance, elaborate design, the fan’s axial length is much shorter, compact structure, saving installation space, the installation more convenient and flexible. Due to optimize the product structure design, small size, lighter weight.
What is our services ?
1. 100% copper wire
2. 1 year warranty
3. 29 years production experience
4. Compact structure,high capacity and easy installation.
5. It has moisture resistance and can be installed in moist environment.
6. products used in unconventional environment also can be customized.
Company information
Taizhou Hangda Electromechanical Co.,Ltd is founded in 1985, and experienced 20-plus years ups and downs, the company has been developed as a high-tech enterprise integrating the R&D,manufacturing and sales of motors and fans
The company attaches great importance to scientific management and technological innovation, and has a team of highly qualified technical staff,meanwhile,
The company also carry out technical cooperation with University of Shanghai for Technology and Dalian University Of technology, and some other institutions of higher education.
The products of our company have passed the European CE authentication and the Chinese CCC authentication.The good quality of our products has won the customer's trusting all over the word.
We will make great efforts ceaselessly, take the customer as the guidance, regard quality as life, innovates strives for the development, wholeheartedly provides the high quality product and the good service for the customer.
Aims:
1. Cooperation aims: Integrity, Fair,Win-win.
2. Service aims: Professionalism, Preciseness, Patience
3. Product aim: High quality, Reasonable price, Customer-oriented.
Missions:
1. We are the bridge between customers & manufacturers.
2. To provide more choices for customers.
3. To help the quality & honest manufacturer to attend products in the world-wide markets and obtain orders.
Hangyan oscillating fan Will keep going, and hope we will be your best choice!
FAQ
Q1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ
Q3. Can you do OEM for us?
Yes, the product packing can be designed as you want.
Q4. Can I change the voltage and frequency ?
Yes, we can make 220v, 50Hz, 110v, 60Hz, 220v and 110v.
Q5. How about MOQ?
100 pcs for carton box.
Q6. What is your main market?
Eastern Europe, Southeast Asia, South America.
How to contact us?
Tell:86-0576-86259178
Fax:86-0576-86259166 Cellphone number:+8618357629866
Wechat:+8618357629866
WhatsApp:+8618357629866
QQ:3082669298
Thank you!
