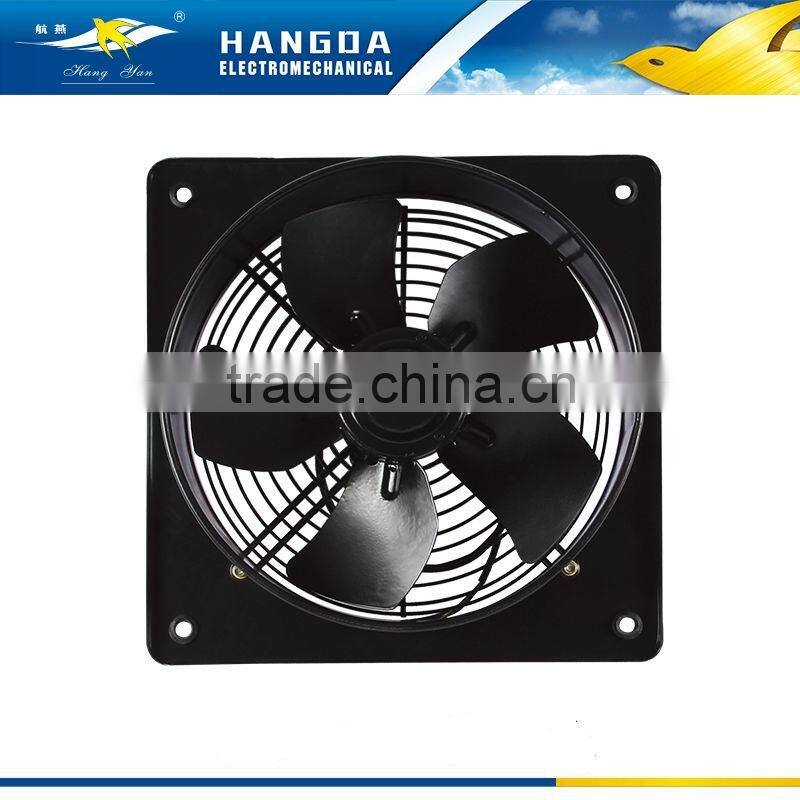

Help CenterGreenhouse Chicken House Warehouse Cooling Exhaust Fan
Related Products
-
High Performance YWF6D-450 Kitchen Adjust FanUS$ 20 - 75MOQ: 1 Piece -
Electrical Square Industrial Roof Exhaust Fan With External RotorUS$ 20 - 80MOQ: 1 Piece
-
YWF2E-300 Compact Wall External Out Rotor Industrial Axial FanUS$ 18 - 26MOQ: 1 Piece
-
Wall Mounted Exhaust Fan(nets Covered)US$ 20 - 75MOQ: 1 Piece
-
Air Blower Fan AC Axial Cooling Fan Flow Ventilation 110VUS$ 20 - 110MOQ: 1 Piece
YWF |
4 |
E |
- |
400 |
S |
- |
5 |
L |
- |
G |
1. |
2. |
3. |
|
4. |
5. |
|
6. |
7. |
|
8. |
1.YWF-External Rotor Axial Fan
2.Motor pole number:2-2poles,4-4poles.6-6poles,8-8poles
3.D:3-phases motor,E-single-phase motor
4.Blade diameter:400-blade diameter is 400mm
5.Wind code:S-induced draft,B-blow
6.Blade number:5-5blades
7.Wind leaf shape:L--falciform,F--aquare type,LT--continuum
8.Fan type:G-pipeline gaotong,A-short barrel,
Fa-terms of frame short barrel,Fg-aspects box
Gaotong,W-meshenclosure type.
◊ Cooling exhaust fan Drawing
◊ Cooling exhaust fan Specification
What is the detail of our advantage ?
Structure: The new outer rotor fan’s impeller is mounted directly on a rotating outer rotor’s excircle , impeller rotates together with the external rotor motor, motor’s main shaft is stationary.
Stability: impeller and external rotor are fasten to the outer rotor’s excircle by soldering or press fitting to form a whole. No secondary assembly errors, greater reliability and stability, less vibration.
Performance: more energy efficient, the national energy efficient products.
Noise: impellers after aerodynamic design again to ensure that the premise of wind capacity, lower noise, high efficiency, energy saving effect is more obvious.
Cooling: The motor is mounted in the middle of the fan impeller, better thermal performance, The motor itself has reached the maximum cooling effect and longer life.
Shape and weight: whole elegant appearance, elaborate design, the fan’s axial length is much shorter, compact structure, saving installation space, the installation more convenient and flexible. Due to optimize the product structure design, small size, lighter weight.
What is the detail of our outer rotor axial fan ?
Material:
Net: cast iron, surface treatment and powder painting or painting
Air duct: cast iron, surface treatment and powder painting or painting
Material of wind blade: cast iron, surface treatment and powder painting or painting
Bearing: Maintenance-free bearing,L10
Insulation class: “B”“F”
Protection class: IP54
About the product:
Flow direction:suction and blowing
Operate mode: Continuous duty
Installation: Horizontal or vertical installation
Main parts: Case, Impeller, Motor, Protective screening.
Fan Size :200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm
Usage: kitchens, industrial and mining factories and other places with serious oil, soot and dust.
Operating Environment:
Elevation: below 4,000m,
Air humidity: less than 90ºC
Ambient temperature: -25ºC~+60ºC for general products,
Products used in unconventional environment also can be customized.
Feature
1.A new product developed by our company by combining technology and talent advantages of many domestic colleges through repeated research and trail production.
2.The impeller is directly fixed on the outer circle to make axial size smaller. Its successful development is a key breakthrough of axial flow fan and achieves internationally advanced level.
3.Advantage: high efficiency, whole sealing, low noise and vibration, short axial size and maintenance prevention, can replace the conventional axial flow fan.
