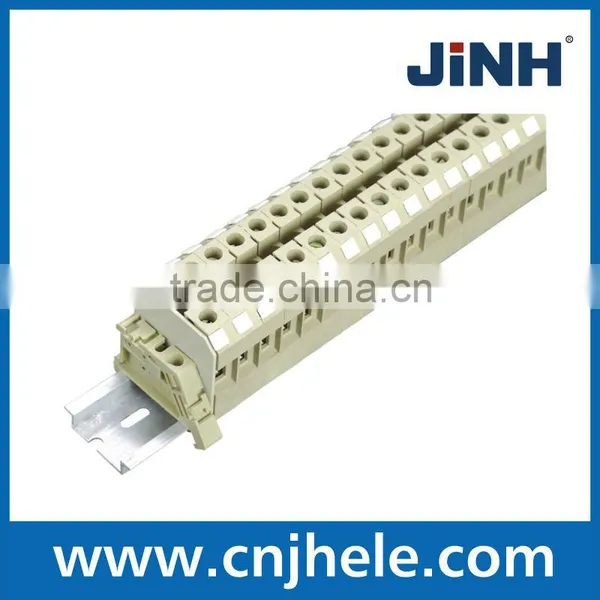

Double Level type Terminal Blocks
DK 4 Q/EN
SAK terminal with screw connection, feedthrough terminal, rated cross-section: 4 mm²,
screw connection, PA 66, beige, Direct mounting
Technical data
Dimensions
Length 54 mm Width 6.5 mm Height: 60.5 mm
Additional technical data
Color of insulating material: beige Flammability class UL 94: V-2
Installation advice: Direct mounting Insulating material: PA 66
No. of clamping points per level: 2
Number of levels: 2 Operating temperature range: -50 °C-100 °C
Type of connection: Screw connection Type of mounting: Snap-on
Conductors for clamping
Conductor connection cross-section AWG, min. AWG 26
Conductor connection cross-section AWG, max. AWG 10
Rating data
Rated cross-section 4 mm² Rated voltage 500 V
Rated current: 32 A Standards: IEC 60947-7-1
Approvals
Approvals: CE, ISO9001, CQC
SAK 2.5, 4, 6, 10,16, 25, 35, 70 SAK-WTK test type
SAK RD fuse type SAK groung terminal
