din screw connector, electric terminal block
- 10000000 Piece / Pieces per Month
- SHANGHAI/NINGBO
- T/T D/P D/A
- SAK SERIES TERMINALS ATTALHMENT
- SAK/JXB SERIES CONNECTING-GROUND TERMINAL BLOCK
- UKK-520A unipolar terminal block with blue cover
- Terminal Block with 2 way 4 way power distribution box connector box
- 2016 new unipolar junction box terminal box
- Made in China Distribution junction plastic waterproof Terminal Block
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | JINH terminal block | Model Number: | JXB 2.5/EN terminal block |
Number of Contacts: | 1 - 10 | Conductor Size: | Other, 26-12AWG | Type: | Screw |
Packaging Details
IN STANDARD EXPORTING CARTON of terminal block
50pcs in one box and 2500pcs in one carton
Product Description

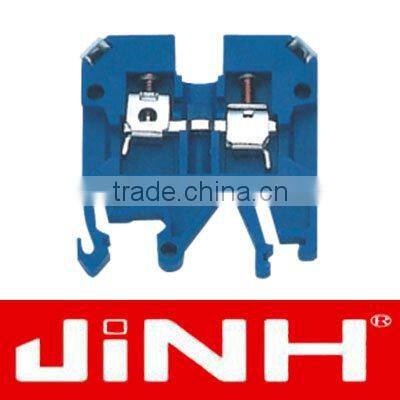

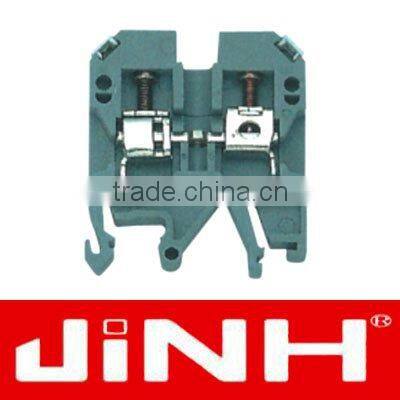

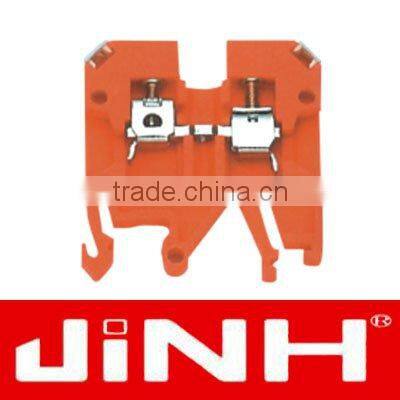

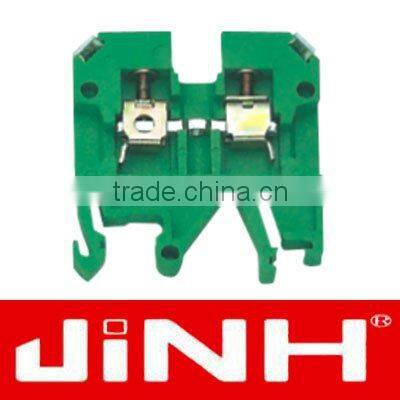

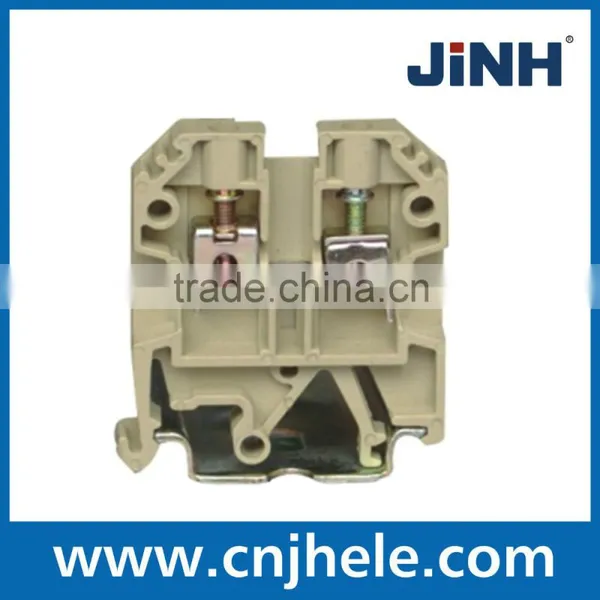

screw connector, electric terminal block
SAK 2.5/EN
Technical data
Dimensions
Length: 44.5mm Width: 6.1mm Height: 46.5mm
Rating data
Voltage: 800 V Current: 24 A
Conductor cross-section, max. 2.5 mm2
Additional technical data
Colour of insulating material: beige Flammability class UL 94: V-2
Insulating material: PA 66 No. of clamping points per level: 2
Number of levels: 1 Operating temperature range: -50 °C-100 °C
Type of connection: Screw connection Type of mounting: Snap-on
Conductors for clamping
Conductor connection cross-section AWG, min. AWG 26
Conductor connection cross-section AWG, max. AWG 12
Approvals
CE, ISO9001, CQC
Accessories

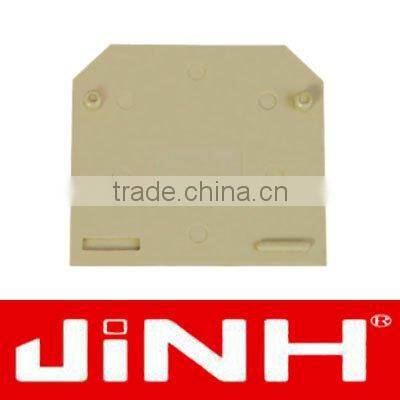

AP2.5 End and intermediate plate, 1.5 mm, beige, direct mounting

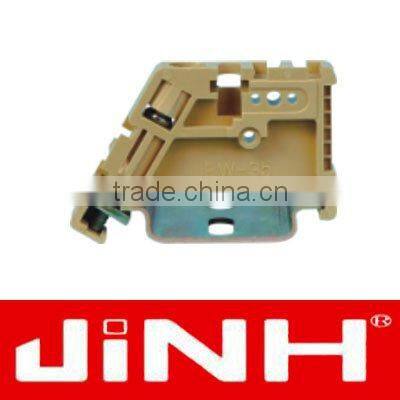

JHEW35 End clamp, for assembly on TH35/7.5 DIN rail
TH35/7.5 DIN rail, aluminum, Length: 1m, Width: 35mm, Height: 7.5 mm
SAK-B1 Marking stand, width: 10mm, thickness: 9.5mm
Company Profile
Zhejiang Jinghong Electric Co., Ltd. has been a professional manufacturer of electric accessories for more than 20 years. We pay attention to quality control in all production processes to ensure the good quality of products. Our company carries out normative operation on development, production, sale, finance and personnel management, which enhances the efficient work of our management department. We follow market trends to meet customers' requirements through fully using modern technological information and networks.
With strong technical capabilities and excellent inspection equipment, we insist on the tenet of "technology prospering the enterprise", and develop new products. Our company has passed the evaluation of ISO9001:2000 international quality system certification, and three hundred types of our products are manufactured according to IEC60947-1 standards. Our main products are plastic terminal blocks, connectors and cable ties which have attained CE certification.
We adhere to the management concept of "innovate with technology, serve with sincerity" to bravely face the challenges of global economic integration. We hope to cooperate with customers from at home and abroad for a splendid future.
