Specifications
Precision Mold Parts Ball PlungerMaterial:JIS S45C
Hardness: HV32
Temperature:-30~250C

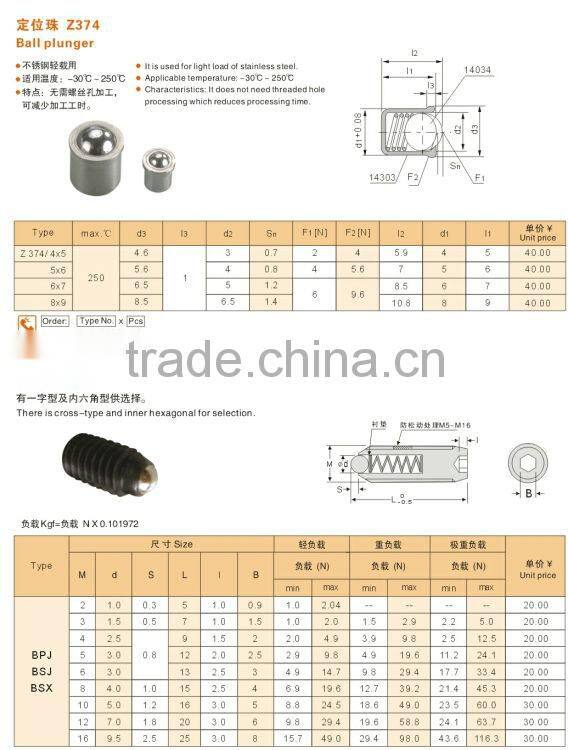

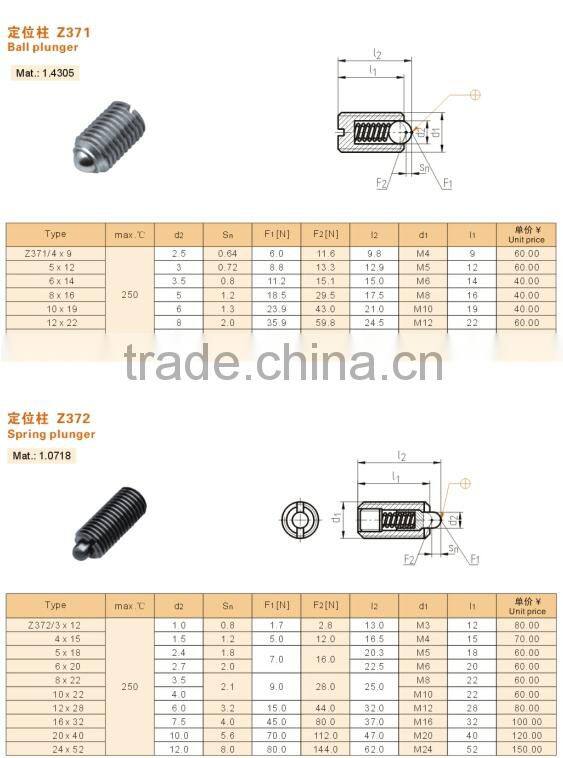

Precision Mold Parts Ball Plunger
BORUN MOULD Information:
1.Manufacturer locates in Changsha and Foshan with more than 10 years production experience.
2.Strict implementation of ISO9001:2008 Standard
3.Advanced technology, Stable quality and Powerful productivity
4.Has obtained 3 utility model patents
5.The professional team and first-rate service
6.Own export right
Ball Plunger/Spring Plunger:
Slide Retainer:
1. PPSM Slider Retainer
Material: 8620 steel
Hardness: 58-62 HRC
The difference from English system PPSL series is: for PPSM series, metric standard is adopted for its screw and locking pin.
2.PPSR Slide Retainer
Material: H-13 steel
Hardness: 48-52HRC
It has independent design and integrated device. Installation is simple. Although appearance is small, it has certain load.
3.RC Slider Retainer
Material: 1.8159
Hardness: 45+/-3HRC
It is very simple and practical, and can be fixed in a very small space.
4.RRM Slider Retainer
Material: 1.8159
Hardness: 45+/-3HRC
The standard limiting location chip is very useful to delay the dividing and closing of mould, and it can increase the load of limiting
location chip by increasing the number of chips.
Mode Locking Components:
1.Z170 Latch lock
Designed simple, easy to install, the height is adjustable when operating. Test proved that you can choose one from Z170 and
Z171.
2.PPL Latch Lock
It with small frame, but open mold exactly and no counteractive. No lock load, apply to low pressure lock molding.
It’s action irrespective of compound molding sequence. Locking blocks have back function when hot runner plate close
before devide face.
3.DTP08A Latch Lock
Surface Treatment: Yellow Paint Drying
Borun Mould Co.,Ltd Exhibition and Certificates:
