Specifications
PYG Series stone cone crusher;1.High quality crushing cavity;
2.High crushing ratio crusher;
3.ISO9001:2008&SGS certificated

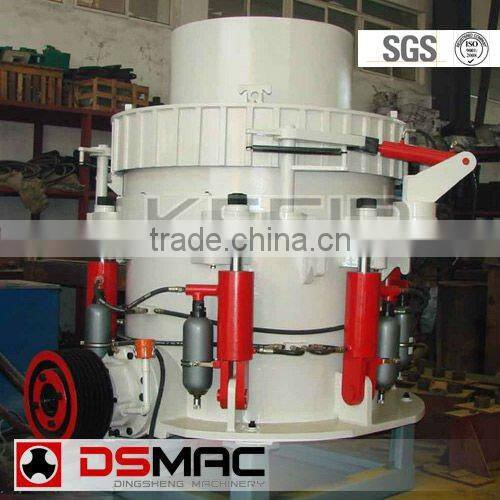

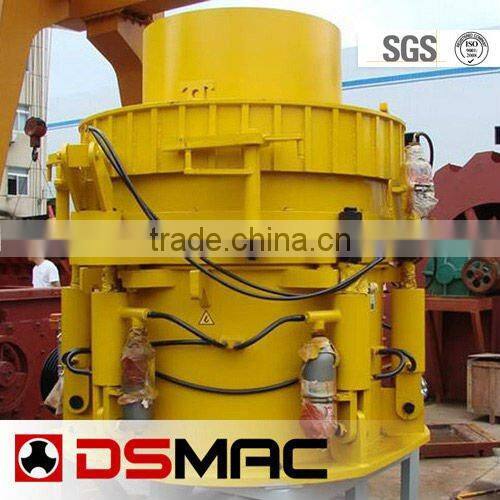

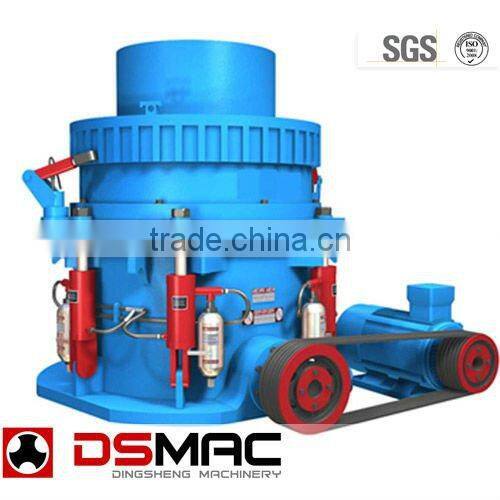

New Design Hydraulic Stone Cone Crusher With Special Design of Conecave
The hydraulically adjusted PYG cone crushers are characterized by robust design and high performance. A combination of Constant Liner Performance crushing chambers and high motor power give these crushers very high capacity. the PYG Series Hydraulic Cone Crusher combines the highest crushing efficiency and end product quality with the lowest per ton production costs.
Feature of stone cone crusher
- High Performance - Low Operating Costs
- Easy Adjustment for Production Requirements
- Total Control of Crusher and Process
- Little Dust and Low Noise Levels
Application of stone cone crusher
1.Aggregates production and mines
2.Secondary, tertiary and fine crushing stages
3.Stationary and mobile applications
Payment & shipping terms:
1.Price:FOB USD 5000-99999/Set(negotiation)
2.Minimum Order Quanlit(MOQ):1 Set
3.Port:Shanghai;tianjin;qingdao
4.Packaging Details:Standard Container, Nude Packs or in Bulk.
5.Delivery Time:15-30 days
6.Payment Terms:L/C,T/T
7.Supply Ability:100 Set/Sets per Month
Specification of Hydraulic Stone Cone Crusher
Type |
Model |
Chamber Type |
Diameter of Large End of Crushing Cone (mm) |
Adjustable Range of Discharge Opening (mm) |
Max Feed Size |
Capacity (t/h) |
Motor Power (kw) |
Weight (kg) |
Dimension (L×W×H)(mm) |
900 |
PYGB-0913 |
Standard fine type |
950 |
14-38 |
110 |
130-250 |
160 |
17000 |
2007×2225×1950 |
PYGB-0916 |
Standard medium type |
18-38 |
132 |
145-250 |
|||||
PYGB-0921 |
Standard coarse type |
22-38 |
178 |
155-250 |
|||||
PYGD-0907 |
Short coarse type |
8-25 |
60 |
80-220 |
|||||
PYGD-0909 |
Short head medium type |
10-25 |
76 |
90-220 |
|||||
PYGD-0912 |
Short head coarse type |
12-25 |
100 |
120-220 |
|||||
1100 |
PYGB-1114 |
Standard fine type |
1100 |
16-45 |
115 |
180-445 |
220 |
18500 |
2520×2620×2400 |
PYGB-1121 |
Standard medium type |
20-45 |
180 |
200-445 |
|||||
PYGB-1124 |
Standard coarse type |
26-45 |
200 |
230-445 |
|||||
PYGD-1107 |
Short coarse type |
8-25 |
60 |
120-220 |
|||||
PYGD-1110 |
Short head medium type |
12-25 |
82 |
120-220 |
|||||
PYGD-1112 |
Short head coarse type |
14-25 |
105 |
120-220 |
If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials,feeding size, you required output size,capacity and other special requirement.Our engineer will choose the optimum type and our saleman will send you the resonable price.
