Specifications
Stone crushing plant,stone crusher;1.ISO9001:2008&SGS certified;
2.Export to 120 Countries;
3.Low energy consumption.
Stone Crushing Plant with ISO9001 (DSMAC)
Capacity: 100-120 TPH
Daily Production: 2000-2400T
Materials: Limestone Barite
Granite, Kaolinite ,Calcite, Tombarthite, Bentonite, Basalt ,Lignite ,Silica, Tin Ore Mine gravel sand, gold ore, etc.
Raw Materials Max Feed Size: <1000 mm
Discharge Size: 0-5mm / 5-20mm /20-40mm(according to the client’s demands)
Crushing Plant Scheme:
Crushing plant with production capacity from 100-120 t/h is suitable for small scale production line. DSMAC Machinery has designed jaw & cone crushing plant, jaw & impactor crushing plant for hard, medium hard minerals. According to the clients’ demands, dust catcher, VSI crusher will be equipped.
Production capacity from 100t/h - 120t/h for medium hard rocks, stones, minerals
PF series impact crusher is a kind widely used impactor crushing equipment at present. DSMAC Machinery supplies impact crusher of low cost, robust structure, low energy consumption etc. We also can supply PFW series impact crusher with hydraulic system for the clients.
Crushing Plant process:
The Equipments of Crushing Plant
Vibrating Feeder ZSW 380 X96
Max Feeding Size: ≤500mm
Power: 37 kw

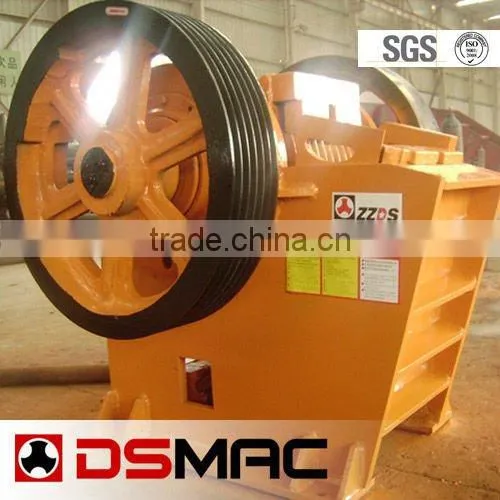

Jaw Crusher PE-600 X 900
Max Feeding Size: ≤500mm
Power: 75kw
Impact Crusher PF-1214
Max Feeding Size: ≤350mm
Power: 160kw
Vibrating Screen 3YK1860
Sep1=40mm Sep2=20mm Sep3=5mm
Power: 18.5kw
Auxiliary Components:
Belt Conveyor
B650 X 16M
B650 X 19M
B650 X 21M
B650 X 16M
B650 X 16M
B650 X 16M
Control system
Electronic Control Cabinet
NO. |
Equipment |
Model |
Motor(KW) |
Number |
|
Hopper |
LC3000X4000 |
|
1 |
I |
Vribrating Feeder |
ZSW380×96 |
11 |
1 |
II |
Jaw Crusher |
PE600×900 |
55 |
1 |
III |
Impact Crusher |
PF1214 |
132 |
1 |
IV |
Vribrating Screen |
3YK1860 |
22 |
1 |
Belt Conveyor | ||||
NO. |
Width(mm) |
Length(m) |
IxtIotor(KW) |
Number |
1 |
B800 |
20 |
7.5 |
1 |
2 |
B800 |
23 |
11 |
1 |
3 |
B500 |
25 |
7.5 |
1 |
4 |
B500 |
20 |
5.5 |
3 |
5 |
B500 |
15 |
5.5 |
1 |
Total Power (KW) |
257 |
|||
