Pcl Sand Maker With Good Gravel Particle Shape and Low Investment
US$ 5,000 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
20-400t/h
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sand Maker Equipment With Good Gravel Particle Shape and Low InvestmentUS$ 5,000 - 99,999MOQ: 1 Set -
Sand Maker Machines With Good Gravel Particle Shape and Low InvestmentUS$ 5,000 - 99,999MOQ: 1 Set
-
Granite Sand Maker With Good Gravel Particle Shape and Low InvestmentUS$ 5,000 - 99,999MOQ: 1 Set
-
Artificial Sand Maker With Good Gravel Particle Shape and Low InvestmentUS$ 5,000 - 99,999MOQ: 1 Set
-
Sand Maker Plant With Good Gravel Particle Shape and Low InvestmentUS$ 5,000 - 99,999MOQ: 1 Set
Condition
New
Production Capacity
20-400t/h
Place of Origin
Henan, China
Brand Name
DSMAC
Model Number
PCX
Power(W)
220*2 kw
Dimension(L*W*H)
5340*2940*3650 (largest)
Weight
According to the capacity
Certification
ISO9001:2008&SGS certified, ISO9001:2008&SGS
Warranty
For whole using life
Specifications
DSMAC pcl sand maker1.Capacity:20-400t/h
2.Max feeding size:50mm
3.ISO9001:2008&SGS certified
4.Delivery:15-30

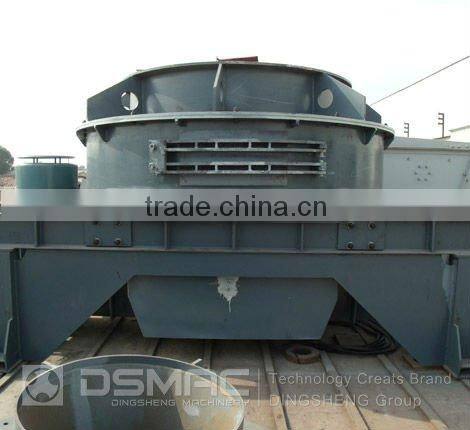

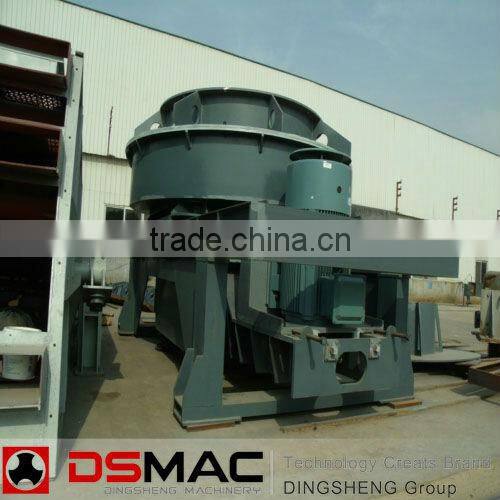

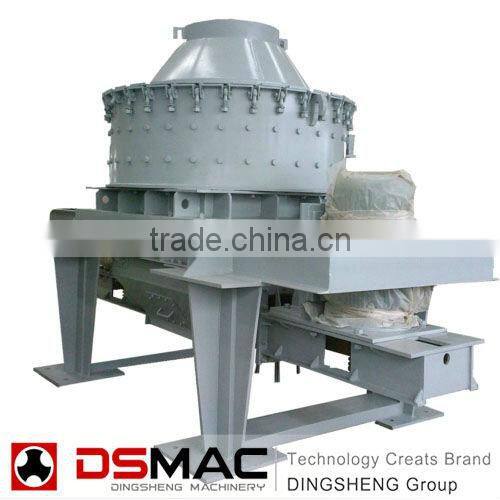

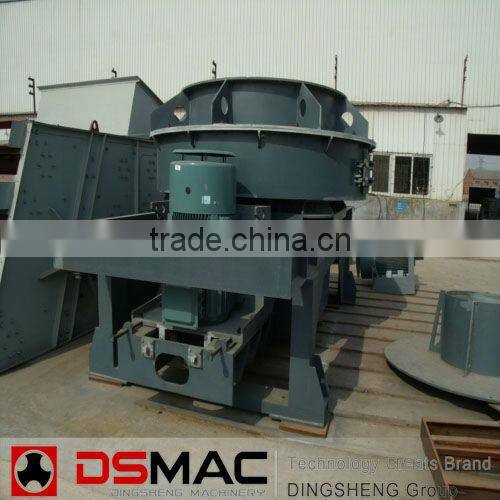

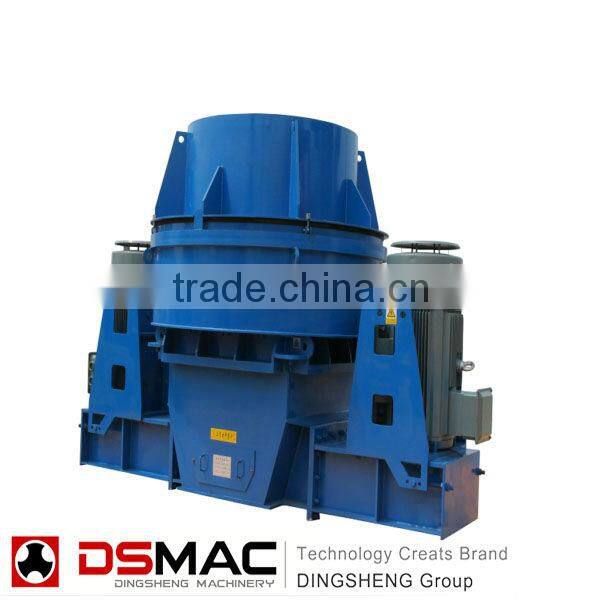

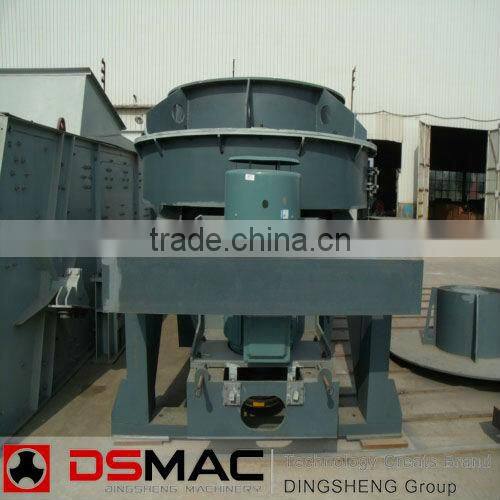

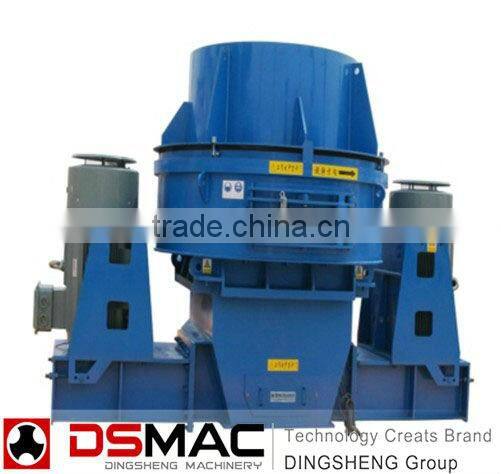

pcl sand maker with good gravel particle shape and low investment
The DSMAC pcl sand maker is unique due to its crushing process. Whereas most other types of crusher use metallic parts to crush rock, the pcl sand maker uses the rock fed into the machine to crush itself. This autogenously crushing process produces the best-shaped aggregate on the market today.
1. pcl sand maker Technical Parameter:
Type |
Max feed (mm) |
Power (kw) |
Impeller Speed (r/min) |
Production Capacity(t/h) |
Dimension(mm) |
PCX-600 |
35 |
22~55 |
2000~3000 |
12~30(-0.8mm30%)(-0.8mm60~90%) |
2500*1600*2260 |
PCX-850 |
50 |
90~180 |
1200~2000 |
55~100(-0.8mm30%)(-0.8mm60~90%) |
3900*2160*2770 |
PCX-1050 |
55 |
150~264 |
1000~1700 |
100~160(-0.8mm30%)(-0.8mm60~90%) |
4660*2450*3660 |
PCX-1280 |
60 |
264~440 |
850~1450 |
160~300(-0.8mm30%)(-0.8mm60~90%) |
5600*2950*4000 |
PCX-1400 |
80 |
400~500 |
800~1193 |
200~400(-0.8mm30%)(-0.8mm60~90%) |
5340*2940*3650 |
2. pcl sand maker features
- The theory of stone hitting ensures low energy consumption and high crushing efficiency.
- The process of crushing is intense with high crushing efficiency. Presently, this type of sand maker is the most popular in the market.
- The consumption of quick-wear parts is low. The sand maker is designed with the best crushing angle within the cavity and causes little friction with wear-resistant parts.
- The sand maker is so environmentally-friendly that it causes little noise and pollution when operating. The operating sound is below 75 db and no dust is created.
3. pcl sand maker application
- Aggregates and sand. The quarry industry has been the traditional home of the DSMAC VSI. VSIs are particularly successful in producing road-base, top dressing chip, concrete and asphalt aggregates, and manufactured sand;
- Industrial minerals. With features such as controlled product grading, preferential crushing, low production costs and the ability to produce finely graded products, the addition of VSI can optimize the performance of most industrial mineral processing installations;
- Mining. High capacity to produce finely graded products such as mill feed, sinter feed or material for heap leach operations, is an ideal machine to replace high cost, inefficient crushing and milling equipment;
- Construction Waste recycling. Recycled materials not only take the form of mineral aggregates for the construction industry, but also glass, slags and other waste products that can be processed and profitably sold. The DSMAC VSI provides the perfect means of treating these materials.
4. To Get Process Benefits of pcl sand maker
- Lower wear costs per ton. In some cases average wear part lives have increased by 50%. This means less maintenance time and higher crusher availability;
- Highest flakiness/shape index of aggregates produced;
- Crushing ratio easy adjustable as per rotation speed modification (the machine can be quickly tuned to face process needs);
- High capacity (up to 400 TPH). A denser particle population in the chamber will give more effective reduction and improved shape;
- Possibility to re-crush unsold small materials (2-6 mm; 4-8 mm,…) and single fraction round materials (16-32mm,…).

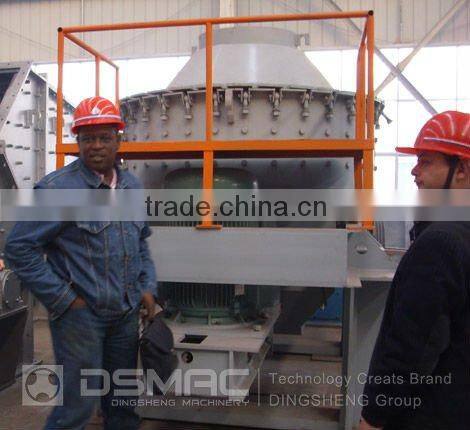

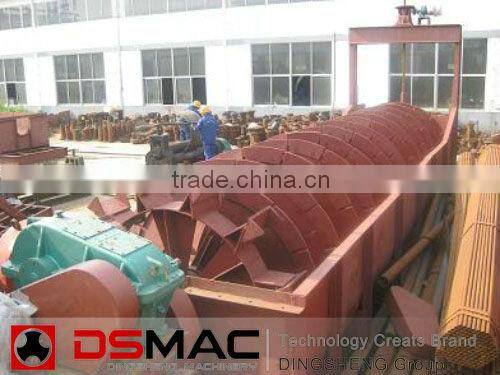

5. Factory View and Certificates of pcl sand maker
