7 Inch Touch Screen, RF Smart Home System, Input Node DTBIN, IP-based Distributed Controlling and Switching System
AS-7
7inch wireless IPS touch panel, communicates with central controller via Wifi/RF/wired, user-friendly and graphical interface for programming supports pictures, graphics, text, animation, 3D buttons and so on, with a high graphical performance.
Input node DTBIN
Input node is for collecting signals and preprocessed data, encoding it into IP streaming, that are to be transmitted over Ethernet. every input node is independent, responsible for collecting and controlling of 1 signal devices. It access to network switch via twisted pair cable.
E-CP3R
E-CP3R is a modular controller which is driven by the market need. Ithas a unique dual-system structure, with hot backup function, independent modules design, simply enable the custom-made to be so easy, flexible function modules can be widely applied in various fields such as large exhibition hall, smart villa, government conference etc.
Input node DTBIN
l Transmitting all Audio, video, and RS232 signals simply by twisted pair cable.
l Distributed structure, no physical central controller required, every output node is independent, greatly reducing the risk of system operation, and maintenance costs.
l Each output node is with one video signal (HDMI,VGA or SDI) input, bi-directional RS232 port, 3 I/O and 1 IR port
l Output resolution supports 800*600 to 1920*1080 60Hz
l Bidirectional RS232 serial port, realtime device status can be collected for testing, responding and implementing the realtime instructions from data center

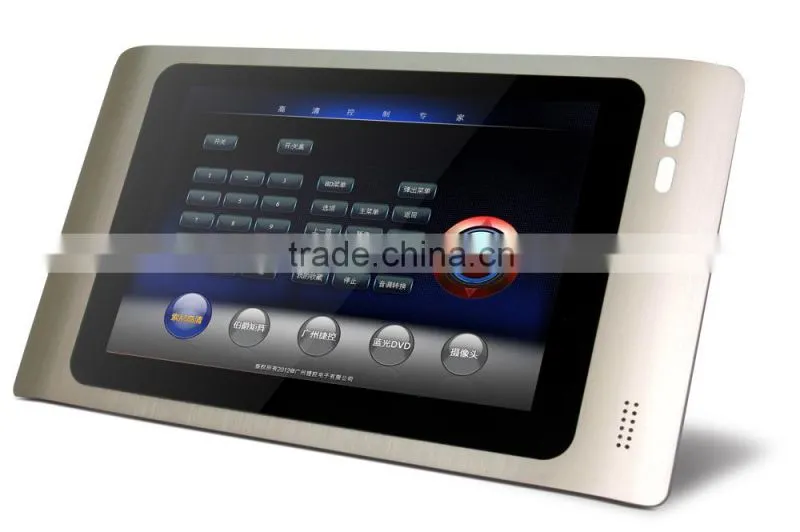

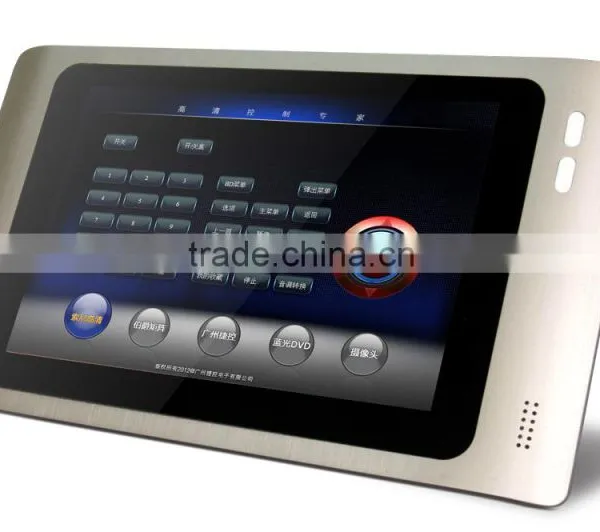

AS-7
1.7-inch IPS touch screen, touch-screen resolution is 1280*800 pixels;
2.Communicates with central controller via Wifi (Maximum distance depending on router), Jump page and subpage display function;
3.With English and Chinese version;
4.Graphical interface for programming is editable, supports pictures, graphics, text, animation, 3D buttons and so on;
5.Large-capacity lithium-ion battery, DC 5V power supply;
6.Data downloading by USB, standby delay, network ID, volume and brightness is adjustable;

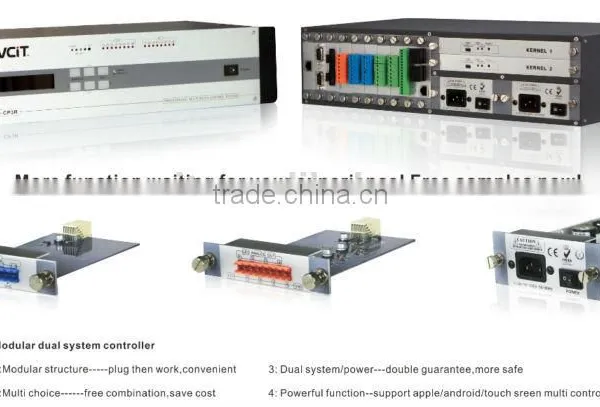

E-CP3R
1. Dual system backup efficient embedded ARM processors, a powerful dual processing capabilities to protect the host system;
2. Dual mother board configuration enhanced integrated motherboards, something wrong with one motherboard, the other continue to work;
3. Dual power supply modules 2 high performance wide-voltage power supply to ensure reliability;
4. Custom made functions Revolutionary modular and flexible structure, functions can be custom made according to your project;
5.Support iOS/Android and AVCIT touch panels Works with all iOS/Android devices, like iPad, iPhone, and our own wired/wireless/RF touch panels;
Application
Exhibition hall
Command center for government/military
Club, ballroom
Smart house
Smart campus
Number of video channel 1 channel
Video specificationHDMI, DVI, VGA, SDI
The maximum levelsT.M.D.S 3.3V
Output levelT.M.D.S 2.9V
1. Why work with us?
1). Rich experience of working with foreign customers.
2). All product we providing are the best quality, comply with CE, FCC and RoHS
3). Rapid and timely service, 24 hours available.
4). 1-5 years guarantee for all our product.
5). World-leading tech, strong technical support team.
6). A company with CE/ROHS
2. How to order?
It is very easy to order if you can determine which product and quantity you need. But if you can't sure which product can best suitable for your needs, our sales will give you best recommend.
3. How to make payment
We support TT / Western Union / MoneyGram for payment, you can chosse the one best suit for you.
You can get account information from our sales.
