OEM/ODM Service, AV Solution, Smart Home Automation System, IP-based Distributed Controlling and Switching System
The output node is in charge of decoding the streaming data, processing data, and display on terminal devices. Every output node is independent, it access to network switch via twisted pair cable.
1. Transmitting all Audio, video, and RS232 signals simply by twisted pair cable.
2.Distributed structure, no physical central controller required, every output node is independent, greatly reducing the risk of system operation, and maintenance costs.
3.Each output node is with one video signal (HDMI,VGA or SDI) input, bi-directional RS232 port, 3 I/O and 1 IR port
4.Output resolution supports 800*600 to 1920*1080 60Hz
5.Bi-directional RS232 serial port, real time device status can be collected for testing, responding and implementing the realtime instructions from data center.
6.Each output node comes with 3 I/O port, all are with 5V voltage output, available to control high current devices by relays. they also access to variety of sensors, collect data and transmit to data center;
7.Deploy high performance logical and coding chips, ensure well running of system, and high-fidelity of audio and video signals;
8.Streaming data from network switch will be decoded into high quality HDMI,VGA or SDI video signals;

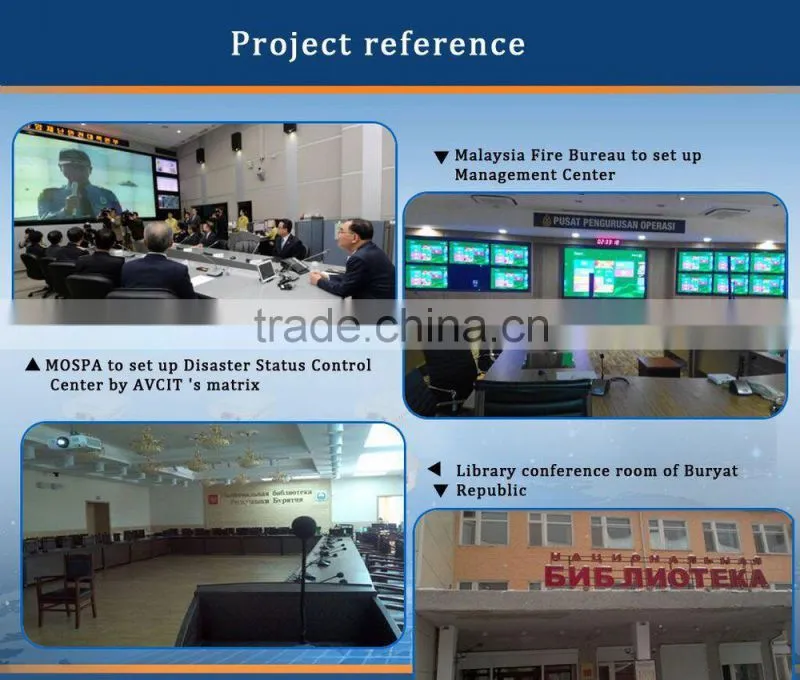

Exhibition hall
Command center for government/military
Club, ballroom
Smart house
Smart campus
Number of video channel 1 channel
Video specificationHDMI, DVI, VGA, SDI
The maximum levelsT.M.D.S 3.3V
Output levelT.M.D.S 2.9V
Control Protocol
RS232Any formats is available, any baud rate from 300 to 500 is ok, to modify while running, length available from 1 to 1000
IR Automatic analysis of IR carrier, no limited carrier frequency,
Input and output resolution
PC: 1600*1200@60_24bit
HDPC: 1920*1200@60_24bit
HDTV:1920*1200@60_36bit
1. Why work with us?
1). Rich experience of working with foreign customers.
2). All product we providing are the best quality, comply with CE, FCC and RoHS
3). Rapid and timely service, 24 hours available.
4). 1-5 years guarantee for all our product.
5). World-leading tech, strong technical support team.
6). A company with CE/ROHS
2. How to order?
It is very easy to order if you can determine which product and quantity you need. But if you can't sure which product can best suitable for your needs, our sales will give you best recommend.
3. How to make payment
We supportTT / Western Union / MoneyGram for payment, you can chosse the one best suit for you.
You can get account information from our sales
