Feature

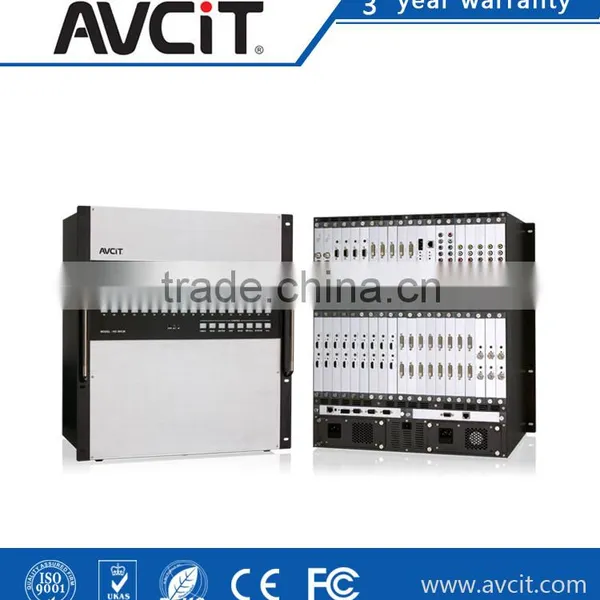

1.Support 16nput,16output.
2.Interface bandwidth 1.65Gbps, video bandwidth 225MHz,support 1080p HD signal.
3.Use HD digital exchange technology,solve interference,double image,tailling situation.
4.Support video type: DVI1.0 agreement DVI-D full digital T.M.D.S signal.

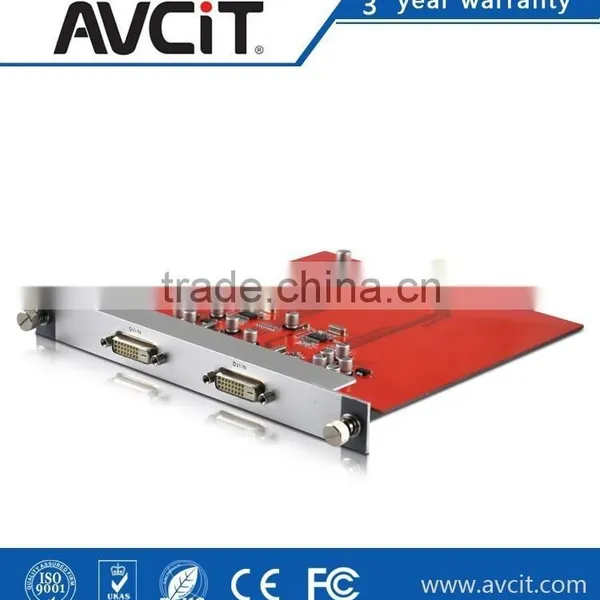

5.Video signal input ,output adapt to full digital DVI-D interface.
6.Long wire drive function: input automatic balanced,output pre-emphasis.
7.Extend network control: extend central contral,then have programmable central contral RS232 interface ,3 infrared emitting ports, support iphone ,ipad, android control.
8.With power fail and scene menory function.
9.1 RS-232 interface,openly control agreement.
10.Build-in international power.
Video
| Gain | 0dB |
| Bandwidth | 225 MHz, full digital |
| Max support resolution | 1080p |
| Clock Jitter | <0.15 Tbit |
| Rise time | <0.3 T bit(20%~80%) |
| Fall time | <0.3 T bit(20%~80%) |
| Max transmit delay | 5ns(+/-ns) |
| Switch speed | 200ns(longest time) |
| Signal type | DVI1.0 agreement(DVI-D full digital T.M.D.S signal |
Video input
| Interface | DVI-D female connection |
| Signal power | T.M.D.S +/- 0.4 Vpp |
| Min/max levle | T.MD.S 2.9V/3.3V |
| Impedance | 50Ω |
| Max direct current biasing error | 15mv |
| Recommend max input distance | max 36m |
Video output
| Imterface | DVI-O famale connection |
| Min/max level | T.M.D.S 2.9V/3.3V |
| Impedance | 50Ω |
| Suggest max transmit distance | less than 7m, recommended to use the certified DVI delicated wire,such as Molex TM |
| Siganl type | stereo,balaced or unbalanced method |
| Impedance |
input:>10KΩ (balanced or unbalanced method) output:50Ω (unbalanced) 100Ω(balanced) |
| Max input level | +19.5dBu (balanced/unbalanced) |
| Gain error | +/-0.1 dB |
| Max input level | +19.5dBu(balanced or unbalanced) |
Cotrol types
| Control interface | RS-232 ,9 pin D type connection |
| Baud rete and agreement |
Band rate:9600 data bits:8 stop bit:1 no odd-even check bit |
| Serial comtrol port strunture | 2=TX.3=RX.5=GND |
| Control program | DVI Matrix switcher 2.0 |
Specification
| Power | 100vAC~240vAC,50/60 Hz |
| Tempture | store ,tempture:-20°c~+70°c |
| Capacity | max 50w |
| Size(L×W×H)(mm) | 482.6×310×135 |
| Average mistake interval time | 50,000 hours |
| Quanlity assurance | one year repair free,safeguard forever |
