1080P, 7 Inch Touch Screen, Auto Tracking Function Conference System, Desktop Ceiling Dome CCTV Camera

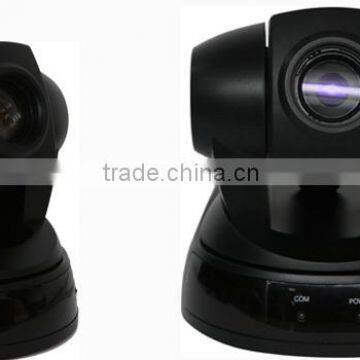

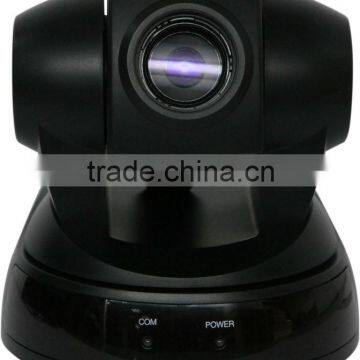

HD Camera
1.Functional high-performance digital DSP design, performance very stability
2.Internal setting data is not lost after power failure
3.Integrated design , compact structure , high reliability
4.64 preset arbitrary storage , positioning accuracy , customizable 128 preset positions
5.Automatic cruise monitoring
6.Using the RS-485 bus control
7.DC motor , smooth low speed operation
8.Precision motor drive , smooth , responsive
9.Auto iris , auto focus , auto white balance
10.No surveillance blind spots: 360 degrees continuous rotation , 180 degrees vertical direction to achieve
11.Auto Flip continuous monitoring
12.Rotation speed is automatically adjust according to multiple conversion lens .
13.Backlight compensation function , a strong light source in the background you can see all objects.
HD Camera
Video Image Sensor 1/4" Color CCD
Effective Pixels 752HX582V(440000pixels)PAL
Synchronization System Internal Synchronization
Video Output Composite signal
WB Auto / Manual
Camera functions Scanning System 15.625KHZ,50HZ(V)
Horizontal Resolution 480TV lines
SNR >48dB
Basic Horizontal rotation 0--300° /S
Up and down the rotation 0--60° /S
Preset 64,up to 128
Patrol function storing at least six visits to the track
Line scan speed 0.5--30° /S
Self-study 40second
Lens parameters Zoom range 18x optic zoom , 12x digital zoom
Aperture Auto / Manual
Zoom Auto / Manual
Power supply AV24V±10%1.25A
Power 30W
Installation Indoor ceiling-mounted , wall-mounted
Relative Temperature 10—75%(non-condensing case)
Operating Temperature 0C° ~40° C(normal rang)
Electronic Shutter 1/3—1/10000 second
Mini illumination 0.01—1Lux(F1.6)
AS-7
Touch panel type Industrial grade IPS LCD ;
Size 7 inch
Resolution 1280*800 pixels
Brightness Adjustable
Memory512M (DDR2)
Contrast9 levels adjustable
Backlighting LED
Screen ratio 16:9
Touch panel life 10,000,000 times
CPU 1GHz 32-bit embedded (Samsung S5PV210)
User storage 1G
SpecificationsPower supply DC5V
Battery 4.2V lithium battery
