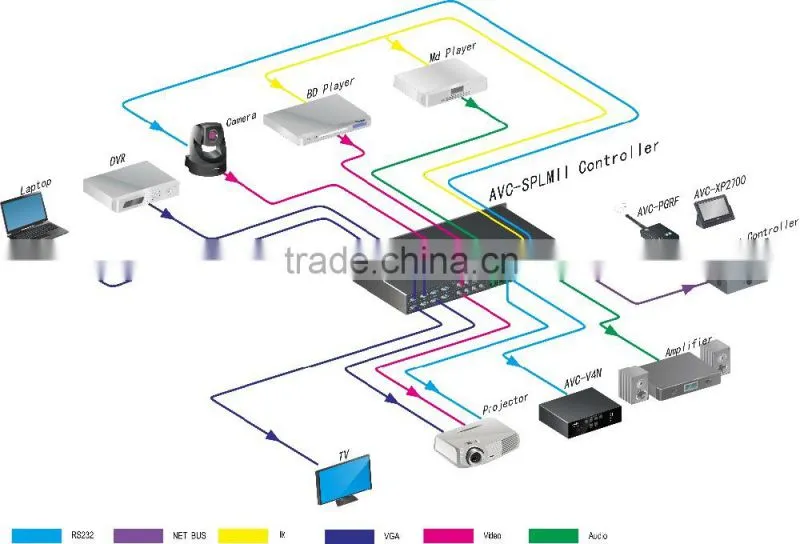

Audio and Video hybrid With Video Matrix, Programmable Central Remote Controller AVC-SPLM-II
AVC-SPLM-II is programmable controller with infrared emission port, IO input port, programmable bidirectional serial port, using the 32-bit embedded microprocessor core, support for complex logic operations , support for all AVCIT brands of wireless / wired touch screen. It is an economical intelligent-type central control system, can be widely used into small and medium sized multifunctional conference rooms, video conferencing systems medium and large academies, intelligent home and other occasions.
(1)Using the latest 32-bit Samsung ARM embedded processor, processing speed up to 533MHZ;
(2)Extensive use of highly integrated coprocessor chip, elegant LAY OUT let the system run very stable, smooth;
(3)Host 8MB RAM and 16MB of built-in large capacity FLASH memory;
(4)Programmable control platform, interactive control structure;
(5)4X4 matrix switching system of computer signals, VGA 15HDF Interface;
(6)4X4 video switching system, BNC Interface;
(7)8X4 audio switching system 3 3.8 Phoenix plug;
(8)2 programmable output port, can expanded 4, DB9 / M Interface;
(9)1 user program download serial, DB9 / F Interface;
(10)1 CRV-NET Internet port;
(11)Audio output volume 32digital adjustable;
(12)Support CREATIVE wireless touch screen;
(13)Front panel provides key operating functions;
(14)Front panel LCD display with operating status;
(15)100-240VAC adaptive power.
Name |
Intelligent Central Control Host SPLM-II |
|
VGA Output |
Signal type |
4 -VGA VIDEO |
Connection type |
DB15/F |
|
Min input level |
0.5Vp-p |
|
Max input level |
2.0Vp-p |
|
Bandwidth |
300MHz(-3dB),full load |
|
Video Input |
Signal type |
4 VIDEO |
Connection type |
BNC |
|
Min input level |
0.5Vp-p |
|
Max input level |
2.0Vp-p |
|
Bandwidth |
150MHz(-3dB),full load |
|
Input impedance |
75Ω |
|
Genlock |
0.3V-0.4Vp-p |
|
Return loss |
-30dB@5MHz |
|
Max DC compensation |
1.5V |
|
Video Output |
Signal type |
4- VIDEO |
Connection type |
BNC interface |
|
Min output level |
0.5Vp-p |
|
Max input level |
2.0Vp-p |
|
Bandwidth |
150MHz(-3dB),full load |
|
Output impedance |
75Ω |
|
Return loss |
-30dB@5MHz |
|
Audio Input |
Genlock |
0.3V-0.4Vp-p |
Signal type |
8-channel AUDIO |
|
Connection type |
3 bit 3.8 phoenix interface |
|
Max input level |
+19.5dBu |
|
SNR |
-80dB |
|
Input impedance |
10K |
|
Frequency Response |
20Hz ~ 20KHz |
|
Audio Output |
Bandwidth |
150MHz(-3dB),full load |
Signal type |
4-channel AUDIO |
|
Connection type |
3 bit 3.8 phoenix interface |
|
Max input level |
+19.5dBu |
|
Output impedance |
50Ω |
|
Specification |
Bandwidth |
150MHz(-3dB),full load |
Power |
110-220V/50Hz |
|
Capacity |
7W |
|
Install |
Standard rack mount |
|
Size |
485L x 236W x 44.5H(mm) |
|
Weight |
2.8(Kg) |
|
