Home > Consumer Electronics > Audio & Sets > Professional Audio > For RF Touch Screen Systen Digital Central Controller

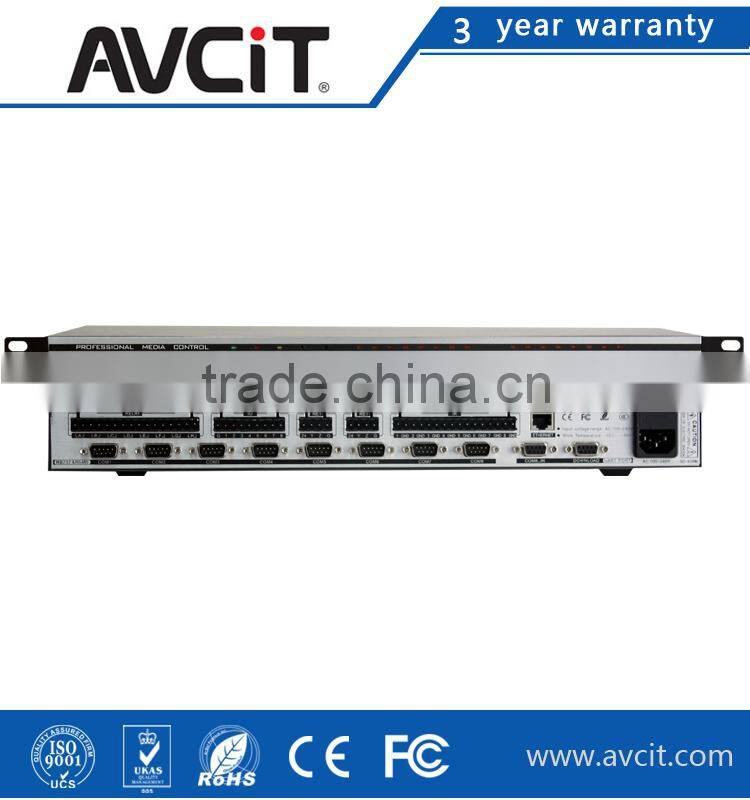

For RF Touch Screen Systen Digital Central Controller

Name: For RF Touch Screen Systen Digital Central Controller
Brand: AVCIT
SKU: 134842345
Availability: InStock

For RF Touch Screen Systen Digital Central Controller thumbnail-1

For RF Touch Screen Systen Digital Central Controller thumbnail-2

For RF Touch Screen Systen Digital Central Controller thumbnail-3

For RF Touch Screen Systen Digital Central Controller photo-1

For RF Touch Screen Systen Digital Central Controller photo-2

For RF Touch Screen Systen Digital Central Controller photo-3

US$ 850 - 995 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

AVCIT

Model Number:

CPLM-PRO

Contact Supplier Request Quote Chat Now

Guangzhou Meishi Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name AVCIT

Model Number CPLM-PRO

Product Description

1.4×4 computer signal switch system,VGA 15HDF interface.

2.4×4/5×3/6×2/7×1optional composite video matrix switch system,BNC interface.

3.Any composite video input can frequency doubling RGB signal to VGA signal output,resolution:1280*1024@60Hz,1024*75Hz,

1024*768@Hz,800*600@60Hz.(PLUS-B specific function)

4.8×4 audio matrix switcher system,3 bit 3.8mm phoneix.

5.Volume audio 32 level digital can adjust.

6.Adopt high-grade shining key style,with operate condition indicate function.

7.Serior port RS232 agreement control.

8.With wire IR interface,can guide the IR receiver to outside of cabinet .

9.100-240VAC self adaptation power.

VGA input

Connection type	BNC
Min input level	0.5Vp-p 2.0Vp-p+19.5dBu
Max input level	2.0Vp-p 2.0Vp-p+19.5dBu
Bandwidth	150MHz(-3dB)
Input impedance	75Ω
Output impedance	75Ω
Return loss	<-30dB@5MHz
B/N	>90dB

OUTPUT

Signal type	4 port VGA video
Connection type	DB 15/F interface
Min output level	0.5Vp-p
Max input level	2.0Vp-p
Output impedance	75Ω
Bandwidth	300MHz(-3dB),full load

VIDEO input

Signal type	4 port VIDEO
Connection type	BNC interface
Min input level	0.5Vp-p
Max input level	2.0Vp-p
Input impedance	75Ω
Genlock	0.3V-0.4Vp-p
Return loss	-30dB@5MHz
Max DC compedance	1.5v
Bandwidth	150MHz(-3dB),fulll load

OUTPUT
Singal type	4 port VIDEO
Connection type	BNC interface
Min output level	0.5Vp-p
Max input level	2.0Vp-p
Output impedance	75Ω
Return loss	-30dB@5MHz
Bandwidth	150MHz(-3dB),full load

AUDIO INPUT

Signal type	8 port AUDIO
Connection type	3 bit 3.8 phoenix interface
Max input level	+19.5dBu
S/N ratio	-80dB
Input impedance	10k
Frequency response	20Hz~20KHz
Bandwidth	150MHz(-3dB),full load

OUTPUT

Singal type	4 port AUDIO
Connection type	3 bit 3.8 phoenix interface
Max input level	+19.5dBu
Output impedance	50Ω
Bandwidth	150MHz(-3dB),full load

Specification

Power	110V-220V/50Hz
Capacity	7w
Install	standard cabinet mounting frame
Size	485×236×44.5(L×W×H)mm
Weight	2.8(KG)

Company Information

1. More than 10 years of experience.One of the top professional brands in China

2. Various kinds of specifications can be customized. Own product development team with 11 people.

3. We have been used in more than 100 goverments’ project,such as 2008 Beijing Olympic Games,

EXPO 2010 Shanghai China, 2010 Guangzhou Asian Games etc

4. Better cost control: Relatively cheap labor and strict quality control,own ROHS, CE certifate

5. Shorter lead time: Our company enjoys stable pool of young staff, which improves our efficiency in production

and enables us to guarantee prompt shipment, shortening lead time for your shipment

2 Well-trained & experienced staff is to answer all your inquiries in English

3 Your business relationship with us will be confidential to any third party

Our Services

1. Why work with us?
1). Rich experience of working with foreign customers.
2). All product we providing are the best quality, comply with CE, FCC and RoHS
3). Rapid and timely service, 24 hours available.
4). 3 year guarantee for all our product.
5). World-leading tech, strong technical support team.
6). A company with CE/RoHS

2. How to order?
It is very easy to order if you can determine which product and quantity you need. But if you can't sure which product can best suitable for your needs, our sales will give you best recommend.
