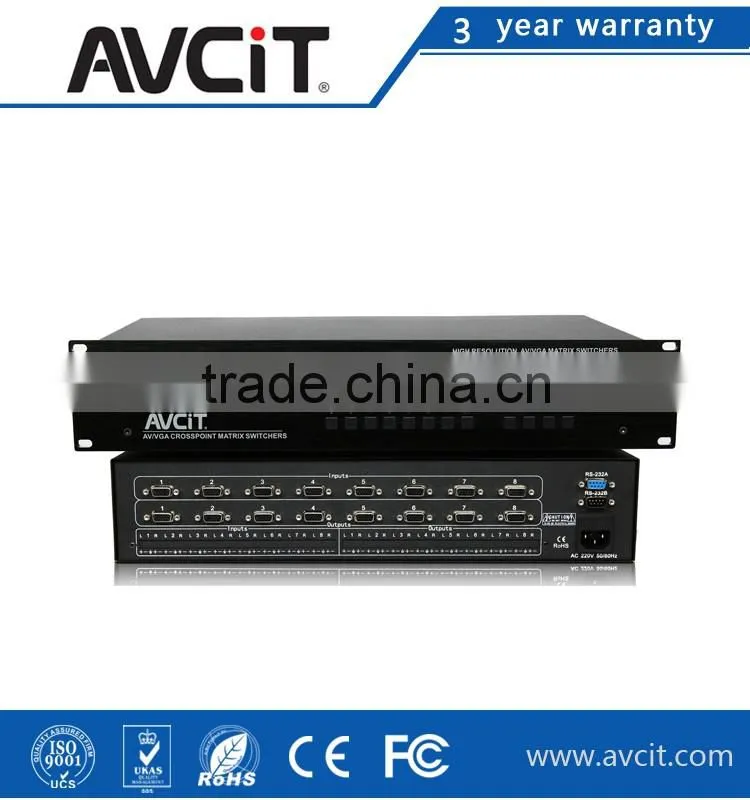

8x8 Video VGA matrix switches VGA Switches for home theatre
Description
AVCVGA0808 is an 8x8 VGA matrix switch , to route high resolution computervideo ,RGB, VGA signal source. signals. Allow any input to be routed to any output; or the same input to be routed to all outputs or any combination.
Features
Video bandwidth up to 350MHz (-3dB), fully loaded. Resolution support 1920 × 1440 @ 85Hz;
LCD time display switching operation status, and can query the current matrix input / output channels connected contact state;
Provide multiple sets of default save option, the current switching state power and memory;
Front panel with touch-button interface, ergonomic;
Compatible with multiple control methods: CRVNET bus,RS232, button operation, supporting software, Infrared remote control (optional).
Parameter
Video Input |
Signal Type: |
RGBHV,RGBS,RGsB,RsGsBs |
Input impedance: |
75Ω |
Audio Input |
Signal Type: |
Unbalanced stereo |
Input impedance: |
10k |
|
Connection Type: |
15-pin HD female |
Genlock |
0.3V-0.4Vp-p |
Connection Type: |
RCA or 3.8mm Screw lock |
Frequency Response: |
20Hz ~ 20KHz |
|||
RGB Min Input level: |
0.5Vp-p |
Return Loss |
< - 40dB@5MHz |
Max Input level: |
+19.5dBu |
SNR |
≈80dB |
|||
RGB Max Input level: |
2.0Vp-p |
Max DC Compensation: |
1.5V |
Audio Output |
Signal Type: |
Unbalanced stereo |
Output impedance: |
50Ω |
||
HV Min Input level: |
0.5Vp-p |
HV Input impedance |
510Ω |
Connection Type: |
RCA or 3.8mm Screw lock |
Max Input level: |
+19.5dBu |
|||
HV Max Input level: |
5.0Vp-p |
Frequency Response: |
20Hz ~ 20KHz |
SNR |
≈80dB |
|||||
Video Output |
Output impedance: |
75Ω |
Signal Type: |
Composite Video |
Bandwidth performance |
Bandwidth: |
Video 350MHz(-3dB) fully loaded |
Differential phase error |
0.1%,3.58 - 4.43MHz |
|
Return Loss: |
< - 40dB@5MHz |
RGB Min Input level: |
0.5Vp-p |
Audio 150MHz(-3dB) fully loaded |
Switching speed |
200nS(Maximum time) |
||||
HV Min Input level: |
0.5,|/Vp-p |
RGB Max Input level: |
2.0Vp-p |
Brightness crosstalk: |
- 50dB@5MHz |
Differential gain error: |
0.1,3.58 - 4.43MHz |
|||
HV Max Input level: |
5.0Vp-p |
Connection Type: |
15-pin HD female |
Horizontal Frequency Response: |
15 kHz ~ 145 kHz |
Vertical frequency response: |
30 Hz ~ 170 Hz |
|||
HV Output impedance: |
75Ω |
|||||||||
Specification |
Switching delay: |
200nS(Maximum time) |
Working humidity: |
10% ~ 90% |
Switching delay: |
200nS(Maximum time) |
Working humidity: |
10% ~ 90% |
||
Mean time between failure: |
50000 hours |
Power Supply: |
100VAC~240VAC, 50/60Hz |
Maximum transmission delay: |
5nS ( ±1nS ) |
Operating Temperature: |
-20 ~ 45°C |
|||
