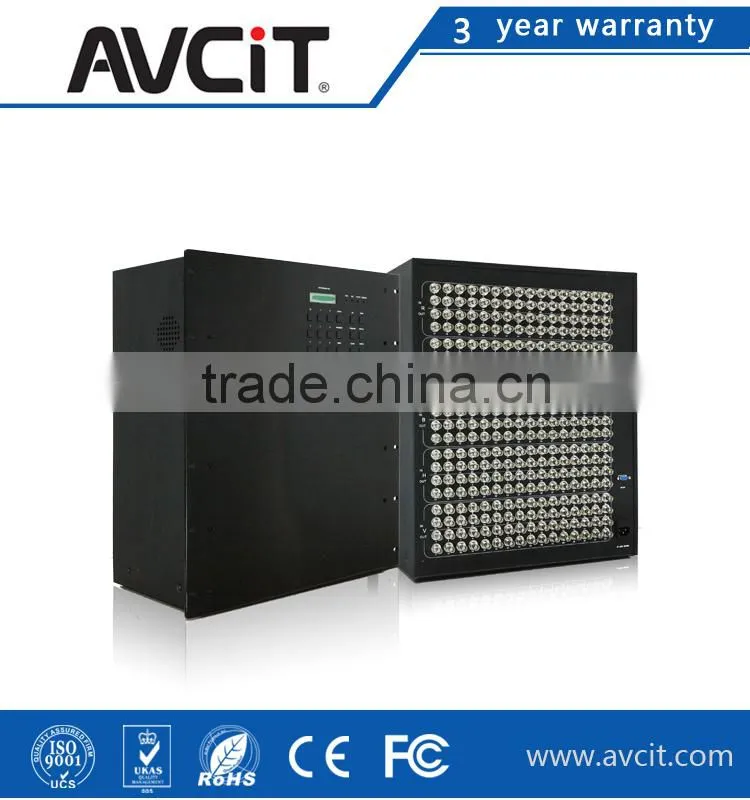

Audio Equipment 32x24 With Audio RGB Matrix Switcher
- 10000 Piece / Pieces per Month
- Guangzhou
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Avcit | Model Number: | AVC-RGB3224-A |
Product Description
Audio Equipment, 32x24 Matrix, With Audio RGB Matrix Switcher
AVC-RGBHV3224-A is matrix switcher for RGBHV,RGBS,RGsB,RsGsBs,HDTV,S-video,Composite video signals. It can route any 32 or all 32 inputs to any 24 or all 24 outputs simultaneously.Embedded intelligent control and management software, RS232 control interface.
(1)Video bandwidth up to 450MHz (-3dB), fully loaded. Resolution support 1920 × 1440 @85Hz;
(2)Provide multiple sets of default save option, the current switching state power and memory;
(3)LCD time display switching operation status, and can query the current matrix input / output channels connected contact state;
(4)Front panel with touch-button interface, ergonomic;
(5)Compatible with multiple control methods: AVC-NET bus,RS232, button operation, supporting software,Infrared remote control (optional).
Parameter Name | RGB3224-A | |
Signal input | Signal Type | computer RGBHV |
Connection Type | RGBHV BNC input | |
Input/output level | 0.5V~2.0Vp-p | |
IO Impedance | 75Ω | |
Echo loss | -30dB @ 5MHz | |
Maximum DC Compensation | 1.5V | |
Signal output | Signal Type | computer RGBHV |
Input/output level | 0.7V~2.0Vp-p | |
IO Impedance | 75Ω | |
Echo loss | -30dB@5MHz | |
Maximum DC Compensation | +5mV-0 | |
Bandwidth performance | Bandwidth | 450MHz(-3dB) fully loaded |
Brightness crosstal | -50dB@5MHz,-45dB@10MHz | |
Maximum propagation delay | 5 ns (+1 ns) | |
Switching speed | 200 ns (maximum time) | |
Specification | Power supply | 220V/50Hz |
Power: | 28W | |
Installation | With a standard rack mount | |
Mean time between failur | 50,000 hours |
