Specifications

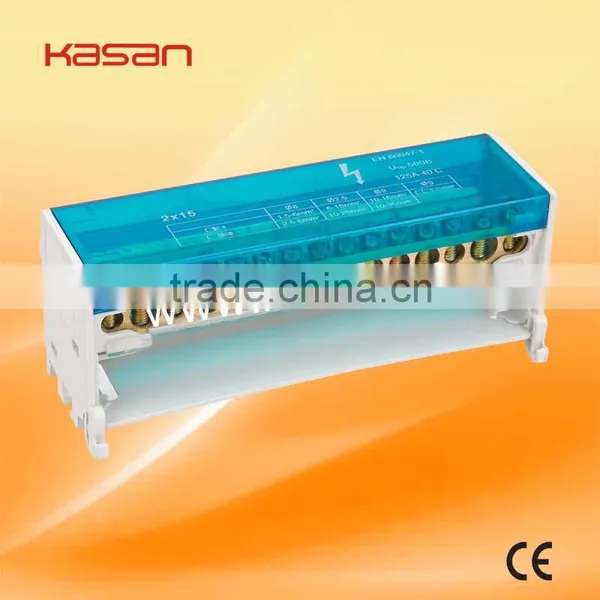

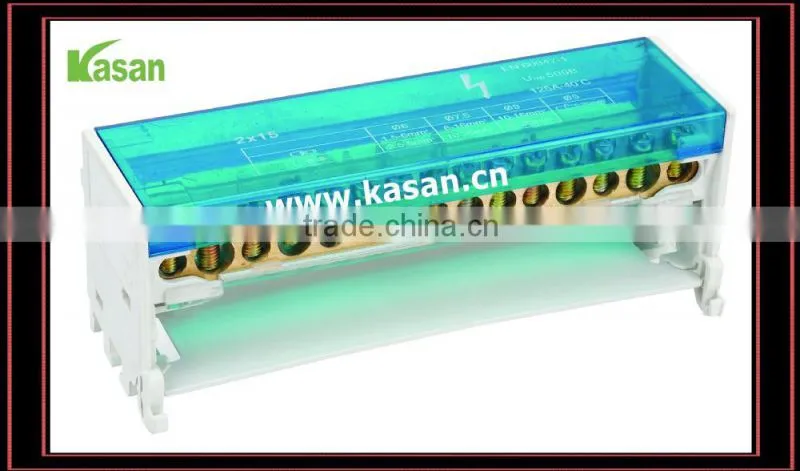

2 x 15 Plastic Terminal Block with Brass Parts2 x 15 Plastic Terminal Block with Brass Parts
Specifications
2 x 15 Plastic Terminal Block with Brass Parts
1,Small Order Accept
2,High Quality & design
3,CE Ceritificate
4,OEM service
2 x 15 Plastic Terminal Block with Brass Parts
Application:
Supplied with insulated back plate and transparent protective front cover,self-extinguishing 960 mounting methods
on rail
on plate with 2 screw
When installing under a front plate,a blanking plate can be clipped onto the front plate
Material
• PA, Polyamide 66, 94-2 grade. Inflaming retarding.
Working Temperature: -30°C to 110°C
• Brass, screw: iron plated zinc
• Voltage: 250V-450V
• Color: blue and transparent white
Technic Data
Item No. |
Spec. |
Rated current ( A ) |
Rated voltage ( V ) |
L1 |
L2 |
H |
W |
Max. section |
Hole. Qty |
Plastic Setting |
W×H |
mm |
|||||||||
207 |
6.5 x 12 |
125A |
500V |
67 |
48 |
50 |
45 |
35mm2 |
2 x 7 |
PA |
211 |
100 |
86 |
50 |
45 |
2 x 11 |
|||||
215 |
134 |
118 |
50 |
45 |
2 x 15 |
|||||
407 |
67 |
48 |
50 |
90 |
4 x 7 |
|||||
411 |
100 |
86 |
50 |
90 |
4 x 11 |
|||||
415 |
134 |
118 |
50 |
90 |
4 x 15 |
|||||
413 |
8 x 17 |
160A |
180 |
168 |
73 |
138 |
50mm2 |
4 x 13 |
||
Product and Packing:
