SM2-95 Waterproof Insulation Piercing Wire Connector
IPC-Insulation Piercing Connector
(1) IPC ( insulating piercing clamp) are suitable for connecting hign-low voltage insulating line which quote tap line from the main line, or connecting the jumping conductor between the two tension phase.
(2) Insulation connector/piercing connector/insulation piercing connector(IPC):With specially designed contact teeth and special insulation plastic cover.
(3)All components are connected with the flame of fire-retardant properties
(4)Using corrosion-resistant shell, Anti-climate change, high-intensity ultraviolet insulation materials.
Material
1.Body Material : UV-resistant plastic
2. Nut Material : Hot-dip galvanized steel
3. Teeth material: The piercing teeth could be copper or aluminium
Detail specification
Model |
Main line section |
Branch section |
Nominal current |
Outline size |
Weight |
Piercing depth |
SM756 |
0.75-6 |
0.75-6 |
41 |
21 X 27 X 23 |
10 |
1-1.5 |
SM041 |
6-10 |
1.5-6 |
41 |
26 X 39 X 54 |
85 |
1.5-2 |
SM101 |
1.5-2.5 |
1.5-10 |
55 |
27 X 41 X 62 |
55 |
1.5-2 |
SMEP |
16-95 |
1.5-10 |
55 |
27 X 41 X62 |
55 |
1-2 |
SM2-95 |
16-95 |
4-35(50) |
157 |
46 X 52 X87 |
160 |
1.5-2 |
SM2-150 |
50-150 |
6-35(50) |
157 |
46 X 52 X 87 |
162 |
1.5-2.5 |
SM3-95 |
25-95 |
25-95 |
214 |
50 X 61 X 100 |
198 |
1.5-2 |
SM4-150 |
50-150 |
50-150 |
316 |
50 X 61 X 100 |
219 |
1.5-2.5 |
SM6 |
120-240 |
25-120 |
211 |
52 X 68 X 100 |
360 |
1.5-2.5 |
SM7 |
150-240 |
10-25 |
102 |
52 X 68 X 100 |
336 |
1.5-2.5 |
SM240 |
95-240 |
95-240 |
425 |
83 X 130 X 130 |
1040 |
1.5-2.5 |
SM300 |
300 |
ANY |
425 |
83 X 130 X 130 |
1040 |
1.5-2.5 |

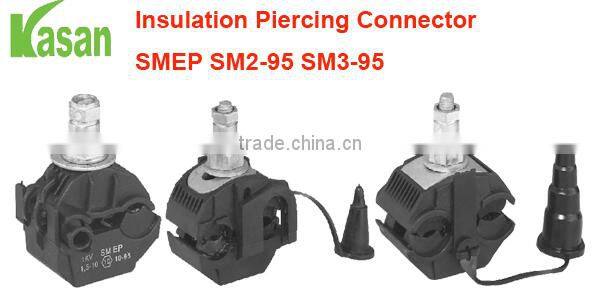

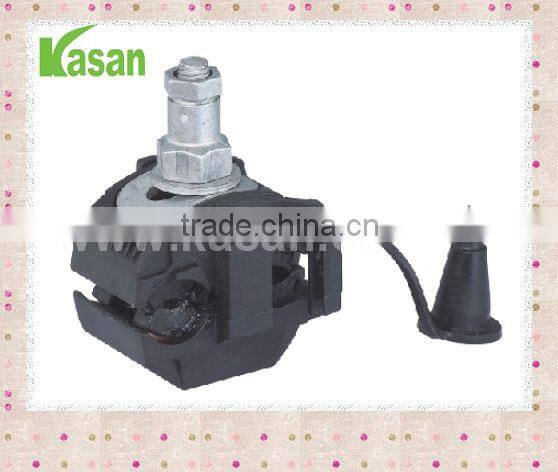

Photo of Item:
Yueqing KASAN Electric Co.,LTD, is one of the best manufacturer and exporter companies in Liushi,Wenzhou. We specialize in export various low voltage electrical products with over 50 series and more than 6000 specifications have been producing electrical goods for more than 10 years in this line, which also a BV assessed gold supplier on Alibaba.
Our Promise to customer:
1. Quality Guarantee
2. Delivery time guarantee
3. Provide superior service to fit customer need
Q 1: what is your minimum order quantity for whole of your products ?
A1: Most of the items no have MOQ requirement, you can even buy 1pc
Q 2: how about the delivery time ?
A 2: It depend on your order quantity, some items we have in stock, but some items need produce.
Q 3: Could you offer Form A or C/O ?
A3: It totally no problem. We can issue Form A and C/O as per customer’s need once boat leave.
Q 4: Would you accept OEM ?
A 4: OEM. totally no problem for us. But it require bigger Q’ty than normal.
Q 5: We want to know month capacity.
A 5: 360000pcs/month
Q 6: Where is your market?
A6:Our products are popular in US,UK,Ireland,Sweden,France,South of America, Asia, many of Africa countries and so on.
Q 7: what kind of certificate you have ?
A 7: Our company already achieve ISO, and for products, we have CE, SEMKO,CB, VDE(pending) .
Q 8: what kind of payment terms can you offer ?
A 8: Normal terms of payment in international business such as T/T, Western Union, Paypal, L/C at sight
Usual way of payment for by sea goods:
30% advance ,70% balance before shipment
Compensation term:
Q9: If we bought your products, but found quality problem, how to solve?
A9: After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
