Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > S-35 Single Output Swtiching Power Supply
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KASAN
Model Number:
S-35
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
KASAN
Model Number
S-35
Output Power
1 - 50W
Output Type
Single
Input Voltage
Other, full range
Output Voltage
full range
Specifications
1.Universal input voltage2..10Years Experience Factory
3.2 years warranty
4.12V switching power supply

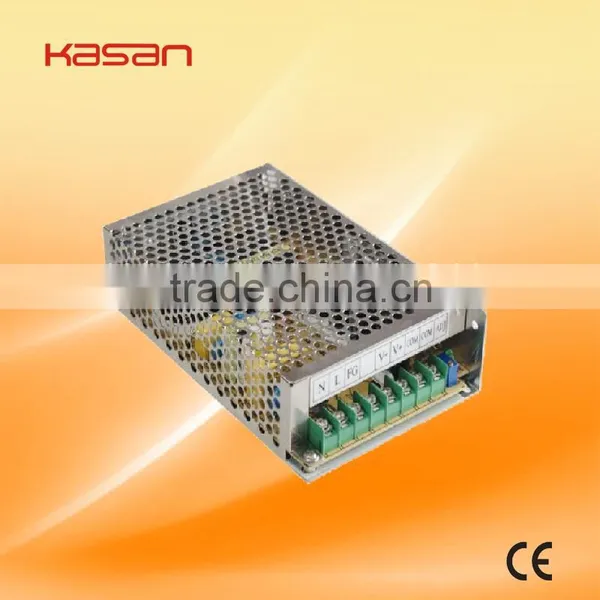

AC/DC DC/DC Switching Power Supply (SMPS) 35W Single Output S-35
Features:
1) AC input range selected by switch.
2) Protections: Short circuit/Over load.
3) Cooling by free air convection.
4) 100% full load burn-in.
5) Lost cost.
6) High reliability.
1. INPUT: 85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC 47 ~ 63Hz
2. SETUP, RISE, HOLD TIME: 200ms, 100ms, 30ms
3. WORKING TEMP.: -10 ~ +60 C 20 ~ 90% RH
4. WITHSTAND VOLTAGE: I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
5. ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
6. DIMENSION: 129*98*38mm (L*W*H)
7. PACKING: 0.4Kg; 45PCS/18.1Kg/0.57CUFT
| Model /Specification | S-35-5 | S-35-12 | S-35-15 | S-35-24 | |
| DC output voltage | 5V | 12V | 15V | 24V | |
| Output voltage error(Note2) | ± 2% | ± 1% | ± 1% | ± 1% | |
| Rated output current | 7A | 3A | 2.4A | 1.5A | |
| Output current rage | 0-7A | 0-3A | 0-2.4A | 0-1.5A | |
| Wave and noise(Note3) | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| Inlet stability(Note4) | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | |
| Load stability(Note5) | ± 1% | ± 0.5% | ± 0.5% | ± 0.5% | |
| DC output power | 35W | 36W | 36W | 36W | |
| Efficiency | 70% | 76% | 78% | 78% | |
| Adjustable range for DC voltage | ± 10, -5% | ± 10% | ± 10% | ± 10% | |
| AC input voltage range | 85~132VAC/170~264VACselected by switch | ||||
| Input current | 0.85A/115V 0.45A/230V | ||||
| AC impulse current | Cold-start current 18A/115V 36A/230V | ||||
| Leakage current | < 0.5mA/240VAC | ||||
| Overload protection | 105%~150% Type: current limiting; Reset; auto recovery | ||||
| Over-voltage protection | … … | ||||
| High-temperature protection | … … | ||||
| Temperature coefficient | ± 0.03% degrees Celsius (0~50 degrees Celsius) | ||||
| Setup rise hold up time | 200ms, 100ms, 30ms | ||||
| Vibration | 10~500Hz, 2G 10min. /1cycle, Period for 60min, Each axes | ||||
| Withstand voltage | Input and output interval: 1.5KVAC, Input and enclosure: 1.5KVAC, Output and enclosure: 0.5KVAC | ||||
| Isolation resistance | Input and output interval, Input and enclosure, Output and enclosure: 0500VAC/100M Ohms | ||||
| Working temperature and humidity | -10 degrees Celsius~+60 degrees Celsius, 20%~90%RH | ||||
| Store temperature and humidity | -20 degrees Celsius~+85 degrees Celsius, 10%~95RH | ||||
| Overall dimension | 129*98*38mm | ||||
| Weight | 0.4Kgs | ||||
| Safety standards | MeetUL1012 | ||||
| EMC standards | … … | ||||
| Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25 degrees Celsius 70%Rh, Humidity 2. Error, include the setting error, line stability and load stability. (Note: 5) 3. Wave test: adopting“ A12” double wire for 20MHz, and 0.1uF& uF capacitor short-circuit for interrupting 4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5. Load stability test: The load is from 0% to 100%, others 60%. 6. C2, 3, 11must be knocked down. | |||||
