Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > S-400Swtiching Power Supply

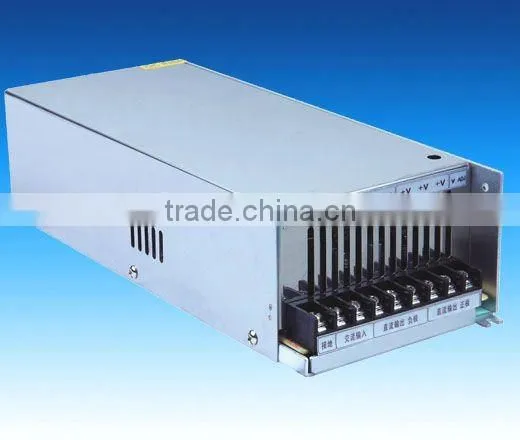

S-400Swtiching Power Supply

Name: S-400Swtiching Power Supply
Brand: KASAN
SKU: 134833461

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

KASAN

Model Number:

S-320

Contact Supplier Request Quote Chat Now

Yueqing Kasan Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name KASAN

Model Number S-320

Output Power 301 - 400W

Output Type Single

Input Voltage Other, full range

Output Voltage full range

Specifications

1.Universal input voltage
2..10Years Experience Factory
3.2 years warranty
4.12V switching power supply

1. Our company is a professional manufacture and OEM.
Our products obtain CE and ISO9001 Certificate and according to IEC 521 international standard to.
2. Low price and high reliability
105 C output capacitor
AC input power suitable for the world
Hight efficiency and low operation temperature
Soft-start current can reduce the AC input impact effecticly
With Short-circuit and owwerload protection
Compact size, light weight
100% full-load burning test
Installed with EMI filter, minimum wave

Model / Specification	SP-400-9	SP-400-12	SP-400-13.5	SP-400-24	SP-400-48
DC output voltage	9V	12V	13.5V	24V	48V
Output voltage error	± 1%	± 1%	± 1%	± 1%	± 1%
Rated output current	43A	33A	29A	17A	8.3A
Output current rage	0-43A	0-33A	0-29A	0-17A	0-8.3A
Wave and noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p
Inlet stability	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Load stability(Note5)	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
DC output power	387W	396W	400W	400W	400W
Efficiency	78%	83%	85%	85.5%	86%
Adjustable range for DC voltage	± 10%	± 10%	± 10%	± 10%	± 10%
AC input voltage range	170~264VAC
AC Input current	5.6A/115V 2.8A/230V
AC impulse current	40A/230V
Leakage current	< 3.5mA/240VAC
Overload protection	105%~135% Type : PULSING HICCUP SHUTDOWN Reset: auto recovery
Over-voltage protection	13.8~16.2V	15.5~18.2V	18~21V	27.6~32.4V	31~36.5V	57.6~67.2V
Fan control, O. T. P.	RTH3> =60º C~70º C FAN ON, < =55º C~60º C FAN OFF, > =80º C~85º C Cut off output
Temperature coefficient	± 0.03%º C(0~50º C)
Setup rise hold up time	1.5s, 50ms, 20ms
Vibration	10~500Hz, 2G 10min. /1cycle, Period for 60min, EACH AXES
Withstand voltage	Input and output interval : 3KVAC, Input and enclosure : 1.5KVAC Output and enclosure : 0.5KVAC
Isolation resistance	Input and output interval , Input and enclosure , Output and enclosure : 500VDC/100M Ohms
Working temperature and humidity	-10º C~+50º C, 20%~90%RH
Store temperature and humidity	-20º C~+85º C, 10%~95%%RH
Overall dimension	241 x 124 x 65mm
Weight	1.2Kgs
Safety standards	UL1950, TUV EN60950
EMC standards	EN55022, EN1000-4, 2, 3, 4, 5, 6, 8, 11 IEC100-3-2
Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25º C 70%Rh, Humidity 2. Error, include the setting error, line stability and load stability. (Note: 5) 3. Wave test: adopting“ A12” double wire for 20MHz, and 0.1uF& uF capacitor short-circuit for interrupting 4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5. Load stability test: The load is from 0% to 100%, others 60%. 6. C2 , 3, 11must be knocked down.
