Specifications
Capillary electric oven thermostatCapillary electric oven thermostat
Specification
Certificates:CE
Temperature range:-35~ 350centigrade
Experience:19years
Credit no1
Welcome all friends
Parameter:
1)Designed temperature range: -35°C ~ 350 °C
2)Capillary Length: 300-3000mm
3)On-off temperature difference: 3°C- 10°C
4)Fitting size:28±0.25mm
5)Rated at 16A/250V 50/60Hz
6)Main body temperature: T90 / T150
7)Electric strength: 800v/s between two pin.
8)Insulation resistance≥100MΩ
9)Control type: mechanical temperature controller
10)Contact resistance:≤50MΩ
11)Operating life: ≥ 100,000times
12)Certification: CE
13)Used for electric water heater, washer, electric oven, fried pan and refrigeration industryetc.
14)Manufactured on customers' request
Temperature Characteristic form

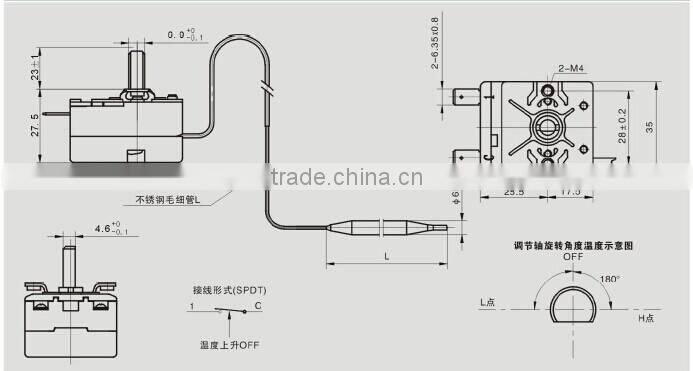

Technical Drawing
