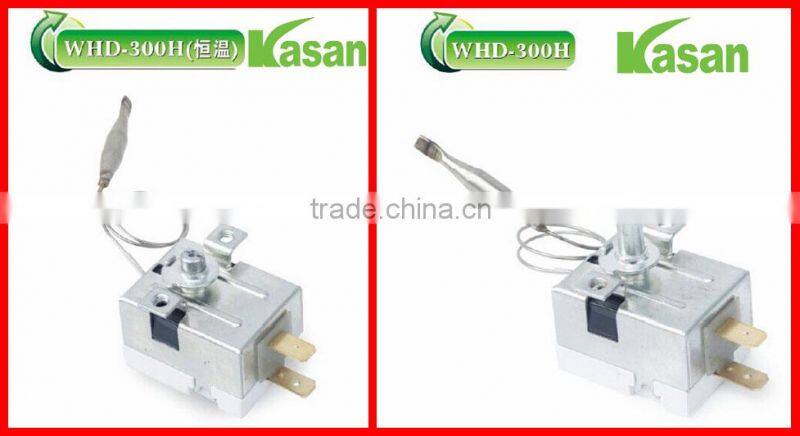

Bulb Capillary Temperature Controller and Flat Thermostat

Specifications

Bulb Capillary Temperature Controller and Flat Thermostat

Specification

Certificates:CE
Temperature range:-35~ 350centigrade
Experience:19years
Credit no1
Welcome all friends

Parameter:

1)Designed temperature range: -35°C ~ 350 °C

2)Capillary Length: 300-3000mm

3)On-off temperature difference: 3°C- 10°C

4)Fitting size:28±0.25mm

5)Rated at 16A/250V 50/60Hz

6)Main body temperature: T90 / T150

7)Electric strength: 800v/s between two pin.

8)Insulation resistance≥100MΩ

9)Control type: mechanical temperature controller

10)Contact resistance:≤50MΩ

11)Operating life: ≥ 100,000times

12)Certification: CE

13)Used for electric water heater, washer, electric oven, fried pan and refrigeration industryetc.

14)Manufactured on customers' request

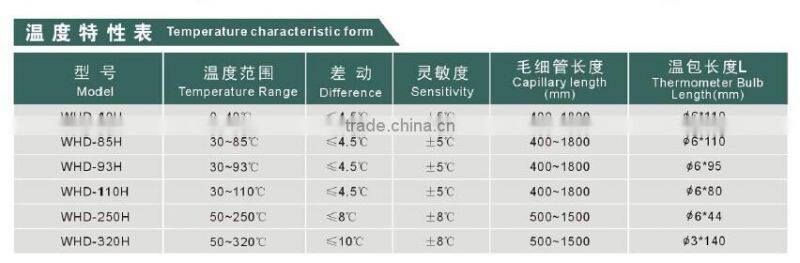

Temperature Characteristic form

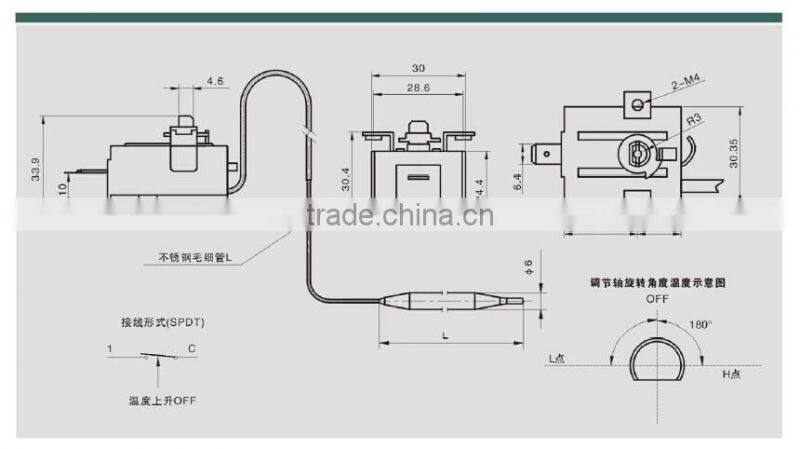

Technical Drawing
