Specifications

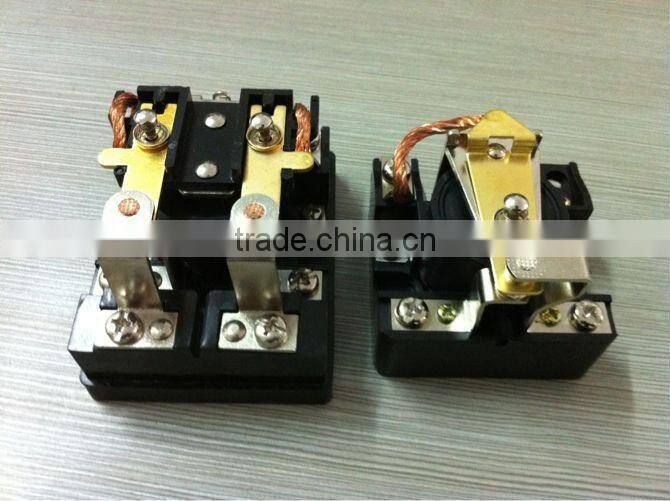

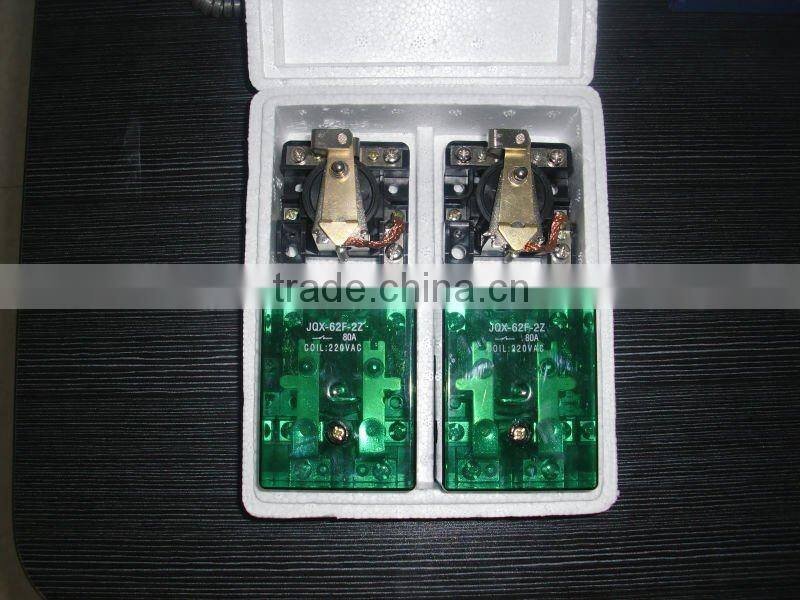

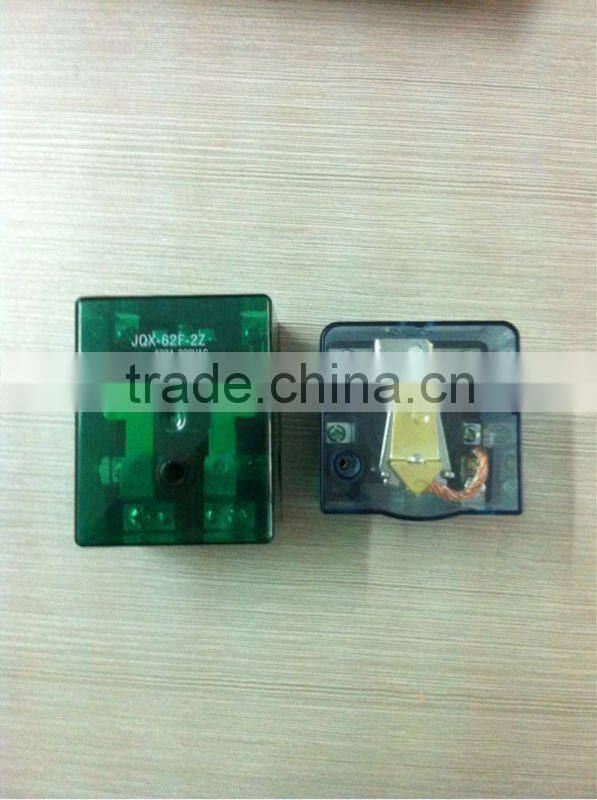

JQX-62F power relay is warmly welcome in Asian & European market, especially Middle East, etc.Power Relay JQX-62F/1Z, JQX-62F/2Z
Features:
1. High switching capacity
2. Installation type: Screw, DIN rail mounting
3. Long service life
4. Open type, or Dust-proof cover type
5. 80A operating current
6. The color of cover can be customized
Detailed Product Description
Outline dimensions: 68.2 * 69 * 62
Ambient temperature: -45 - +55oC
Contact specification
| Contact from | 1Z (1H,1D) |
| Contact resistance | ≤100mΩ (1A 6VDC) |
| Contact material | AgCdO AgSnO2 |
| Contact capacity | 80A 250VAC /30VDC |
Technical specification
| Insulation resistance | ≥1000mΩ (500VDC) |
| Dieletric strength | Between coil and contact≥2500VAC 1min |
| Between open contact≥1200VAC 1min | |
| Operate/Release time | ≤40ms/25ms |
| Terminal type | Screw mounting |
Coil specification
| Rated coil power | DC2.0W AC4.0V |
DC Coil data
| Nominal voltage | Operate voltage | Release voltage | Coil resistance |
| VDC | VDC | VDC | Ω ±10% |
| 6 | 4.8 | 0.6 | 18 |
| 12 | 9.6 | 1.2 | 70 |
| 24 | 19.2 | 2.4 | 290 |
| 48 | 38.4 | 4.8 | 1150 |
| 60 | 48.0 | 6.0 | 1800 |
| 110 | 88.0 | 11 | 6050 |
AC Coil data
| Nominal voltage | Operate voltage | Release voltage | Coil resistance |
| VAC | VAC | VAC | Ω ±10% |
| 6 | 4.8 | 1.8 | 9 |
| 12 | 9.6 | 3.6 | 36 |
| 24 | 19.2 | 7.2 | 144 |
| 48 | 38.4 | 14.4 | 576 |
| 110 | 88.0 | 36.0 | 3025 |
| 220/240 | 176 | 72.0 | 12000/14400 |
