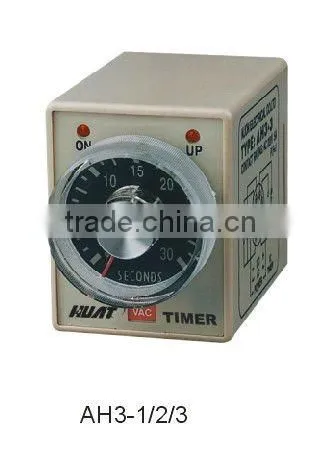

Timer Relay (AH3-1,AH3-2,AH3-3)

Timer Relay (AH3-1,AH3-2,AH3-3) thumbnail-1
Timer Relay (AH3-1,AH3-2,AH3-3) photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KASAN
Model Number:
AH3-1,AH3-2,AH3-3
Contact Supplier Request Quote Chat Now
Yueqing Kasan Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI ETC.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name KASAN
Model Number AH3-1,AH3-2,AH3-3
Theory Time Relay
Usage Protective
Size Miniature
Protect Feature Sealed
Contact Load Low Power

Specifications

1.Timer Relay (AH3-1,AH3-2,AH3-3)
2.Over 10 years manufacturing experience
3.Customized products upon request

Specifications

1.Relay(AH3)
2.Over 10 years manufacturing experience
3.Customized products upon request

Relay(AH3)

AH3-1,AH3-2,AH3-3



- Using CMOS IC, high reliability and stability
- High repeat accuracy ±1%
- Large transparent for easy adjustment and monitor
- Wide variety of type-15 time ranges.(0.1sec to 24hrs)



+ SPECIFICATIONS
MODEL
AH3-1,AH3-2,AH3-3
DIMENSIONS
50H x 40W x 57.5D
58H x 48W x 65D
FULL TIME RANGE
SEC : 1, 3, 6, 10, 12, 30, 60
MIN : 3, 6, 10, 30, 60
H R : 3, 6, 10, 24
MOUNTING
& SOCKET		 SURFACE(-N)
PF085A & SH-3

FLUSH(-Y)
Y-40 & US-08 or Y-40 & P3G-08
RATED VOLTAGE
DC(V) : 12, 24
AC(V) : 12, 24, 110, 220, 240,380,415,440, 50/60 Hz
INDICATOR
OPERATING
ON-UP Two Indicator Lamp
o/p CONTACT MODEL
AH3-1
AH3-2
AH3-3
TIME LIMIT 1C
5A

5A
TIME LIMIT 2C
5A

INSTANTANEOUS 1C
5A



+ CONNECTION DIAGRAMS & TIMING CHARTS
  CONNECTION DIAGRAMS TIMING CHARTS
AH3-1

AH3-2

AH3-3




+ DIMENSION

AH3-



AH3-

Y-40
+
US-08
