The Newest Type Hot Sell Metal Distribution Box/distribution Enclosure
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KASAN
Model Number:
HMC Distribution Box
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Distribution Box/ Distribuiton BoardNegotiableMOQ: 5 Pieces -
Waterproof IP65 Distribution Box-HK SeriesNegotiableMOQ: 5 Pieces
-
Plastic Distribution Enclosure IP65-HK SeriesNegotiableMOQ: 50000 Pieces
-
HT Series Waterproof IP65 Plastic Distribution BoxNegotiableMOQ: 5 Pieces
-
5Ways HT Waterproof Plastic Distribution EnclosureNegotiableMOQ: 5 Pieces
Place of Origin
Zhejiang, China
Brand Name
KASAN
Model Number
HMC Distribution Box
Specifications
Metal enclosure,Electrical Enclosure1.For use any instrument enclosure,electric,hydraulic
2.3Y guarantte
3.ISO,CE,NEMA3r

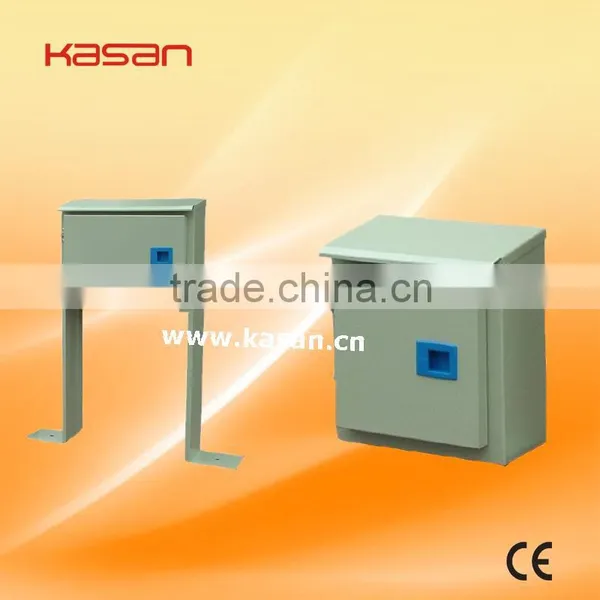

The newest type hot sell metal distribution box/distribution enclosure
Features: Power distribution / Metal enclosure
(1)Body and door manufactured in 1.2/1.5mm sheet steel.
(2)Mounting Plate with folded edge in 2.0mm sheet steel.
(3)Finished with thermosetting epoxy polyester powder coating.
(4)Mounting Plate in smooth finish.
(5)IP65 Protection
(6)Dimensions of products(only part, for more details you can contact with us)
(7)Foot length:300mm
(8) MCB,MCCB Install: acceptable
Technic data:
| MATERIAL: | DOBY | CS | DOOR | CS | INSTALLATION BOARD: | CS | ||
| THICKNESS: | DOBY | 1.0mm | DOOR | 1.5mm | INSTALLATION BOARD: | 2.0mm | FOOT 1.Omm | |
| MODEL: | HEIGHT(MM) | WIDTH(MM) | DEEPTH(MM) | FOOT | ||||
| HMC | 202011F | 200 | 200 | 110 | 300 | |||
| HMC | 203011F | 200 | 300 | 110 | 300 | |||
| HMC | 204011F | 200 | 400 | 110 | 300 | |||
| HMC | 205011F | 200 | 500 | 110 | 300 | |||
Metal enclosure are complete with:
-2 zinc passivated rails to be fixed on the door
-Mounting plate
-Gland plate and gasket
-package with hardware for earth connection and screws to mount all components
-Locking system with 3mm double-bar key
-
