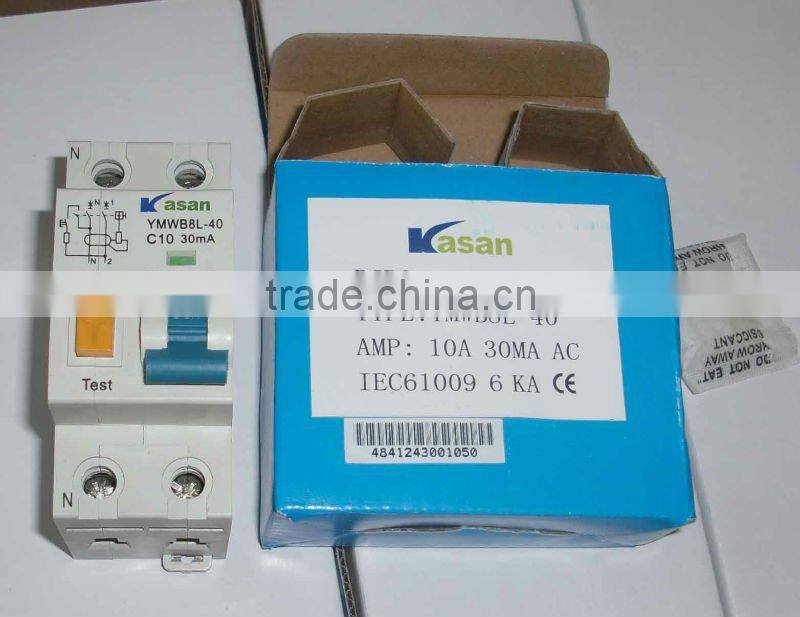

Rccb Rcd Elcb Rcbo Circuit Breaker

Specifications

1. Rated current: 6A,10A,16A,20A,25A,32A,40A.
2. Rated residual operating current: 0.01A, 0.03A, 0.1A, 0.3A.
3. ICN:6000A



Residual Current Operated Circuit Breaker with overcurrent protection

(Electro magnetic)
Application
    The product serves in the line of AC 50HZ, rated voltage 230V and rated current up to 40A to automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value. It can effectively protect personal security and avoid the damage to equipments.
    The circuit-breaker can also function as overload and shortcircuit protection and unfrequent changeover of line under normal condition.
    The product is conformity with GB16917.1,IEC61009-1 standards.
Main Technical Data
1.  Rated current: 6A,10A,16A,20A,25A,32A,40A.
2.  Rated residual operating current: 0.01A, 0.03A, 0.1A, 0.3A.
3.  Tripping characteristics: B(3ln~5ln), C(5ln~10ln).
4.  According to behaviour in presence of d.c. Components:Type A, Type AC.
5.  Icn: 6000A
6.  Rated residual current operated making and breaking capacity Im: 500A
7. Rated residual non-operated current: Ino:0.5In
Feature
1.Without auxiliary power supply, the product is designed with strong immunity and extending protection range against residual current.
2. With higher rated ultimate short circuit, up to 6KA.
3. Reliable, accurate and convenient adjustment of product instantaneous action is ensured.
4. Service life of product has been greatly enhanced through specially designed trippingmechanism.

voltage(V)	Shell frame size rated current Inm(A)	pole	Neutral	rated current (InA)	rated short-circuit breaking capacity		Rated residual operating current Inm(A)	Rated non-residual operating current Inm(A)	Rated residual operating time    (S)
					breaking capacity IcuS	COS
230	100	1	N	40.50.63.80.100	10000	0.5	30                  50                     100            200	15                        25                        50                      100	<0.1
230	100	2			10000	0.5			<0.1
400	100	3			6000	0.5			<0.1
230/400	100	3	N		6000	0.5			<0.1
230/400	100	4			6000	0.5			<0.1
230	60	1	N	40,         50,             60,	10000	0.5	30                   50                  100               200	15                        25                        50                      100	<0.1
230	60	2			10000	0.5			<0.1
400	60	3			6000	0.5			<0.1
230/400	60	3	N		6000	0.5			<0.1
230/400	60	4			6000	0.5			<0.1
