Good Quality Air Conditioner Contactor 1P,2P,3P

Good Quality Air Conditioner Contactor 1P,2P,3P thumbnail-1
Good Quality Air Conditioner Contactor 1P,2P,3P photo-1
US$ 0.6 - 0.8 MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KASAN Air Conditioner Contactor
Model Number:
SC Air Conditioner Contactor
Contact Supplier Request Quote Chat Now
Yueqing Kasan Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name KASAN Air Conditioner Contactor
Model Number SC Air Conditioner Contactor
Electricity Type AC
Number of Pole 3
Phase Other, 3P

Good Quality Air Conditioner Contactor 1P,2P,3P





1.Application



This series contactor is mainly applicable to a line of AC 50Hz or 60Hz, rated working voltage up to 600V and rated working current up to 60A, used to close or and to switch off the line. It complies to IEC947-4-1 .Straight-through wiring, replaces 1.5 pole devices used primarily in residential central air conditioning

Replaces many type 117 contactors used by OEM’sUniversal style mounting brackest fits existing mounting holes Screw terminals and quick connect terminals for easy installation.





2.Specification









Coil rating 1Pole contactors 2 pole contacts
Nominal coil voltage 24 120 208/240 277 24 120 208/240 277
Nominal coil resistance Ohms 18 420 1800 2500 11 237 1000 1600
Maximum pick up voltage 18 88 177 221 18 88 177 221
Maximum drop out voltage 6-15 20-70 40-140 50-165 6-15 20-70 40-140 50-165
Nominal rush Va@50Hz 31 31 31 31 33 33 33 33
Nominal rush Va@60Hz 28 28 28 28 30 30 30 30
Nominal rush Va@50Hz 6 6 6 6 8 8 8 8
Nominal rush Va@60Hz 5 5 5 5 6.5 6.5 6.5 6.5
Maximum coil voltage 30 132 264 300 30 132 132 300





Coil rating 3Pole contactors 4 pole contacts
Nominal coil voltage 24 120 208/240 277 24 120 208/240 277
Nominal coil resistance Ohms 7 180 720 900 6 150 600 750
Maximum pick up voltage 18 88 177 220 18 88 177 220
Maximum drop out voltage 6-15 20-70 40-140 50-165 6-15 20-70 40-140 65-185
Nominal rush Va@50Hz 65 65 65 65 62 62 62 62
Nominal rush Va@60Hz 60 60 60 60 59 59 59 59
Nominal rush Va@50Hz 7.5 7.5 7.5 7.5 9 9 9 9
Nominal rush Va@60Hz 6 6 6 6 7 7 6 7
Maximum coil voltage 30 132 264 300 30 132 264 300

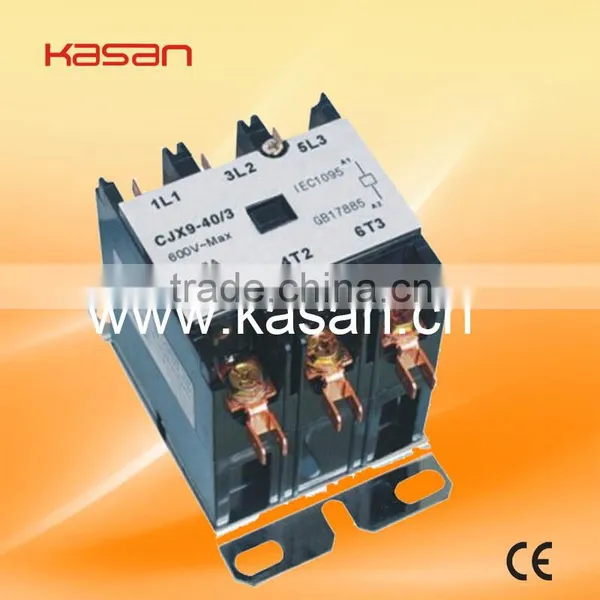

3. Photo of Item and Package



Good Quality Air Conditioner Contactor 1P,2P,3P





Good Quality Air Conditioner Contactor 1P,2P,3PGood Quality Air Conditioner Contactor 1P,2P,3PGood Quality Air Conditioner Contactor 1P,2P,3P



Good Quality Air Conditioner Contactor 1P,2P,3P

Yueqing KASAN Electric Co.,LTD, is one of the best manufacturer and exporter companies in Liushi,Wenzhou. We specialize in export various low voltage electrical products with over 50 series and more than 6000 specifications have been producing electrical goods for more than 10 years in this line, which also a BV assessed gold supplier on Alibaba.

Our Promise to customer:

    1.     Quality Guaranteed

    2.     Delivery time guarantee

    3.     Provide superior service to fit customer need

Good Quality Air Conditioner Contactor 1P,2P,3PGood Quality Air Conditioner Contactor 1P,2P,3P



Good Quality Air Conditioner Contactor 1P,2P,3PGood Quality Air Conditioner Contactor 1P,2P,3PGood Quality Air Conditioner Contactor 1P,2P,3PGood Quality Air Conditioner Contactor 1P,2P,3PGood Quality Air Conditioner Contactor 1P,2P,3PGood Quality Air Conditioner Contactor 1P,2P,3P

FAQ:

Q 1: what is your minimum order quantity for whole of your products ?
A1: Most of the items no have MOQ requirement, you can even buy 1pc

Q 2: how about the delivery time ?
A 2: It depend on your order quantity, some items we have in stock, but some items need produce.

Q 3: Could you offer Form A or C/O ?
A3: It totally no problem. We can issue Form A and C/O as per customer’s need once boat leave.

Q 4: Would you accept OEM ?
A 4: OEM. totally no problem for us. But it require bigger Q’ty than normal.

Q 5: We want to know month capacity.
A 5: 360000pcs/month

Q 6: Where is your market?
A6:Our products are popular in US,UK,Ireland,Sweden,France,South of America, Asia, many of Africa  countries and so on.

Q 7: what kind of certificate you have ?
A 7: Our company already achieve ISO, and for products, we have CE, SEMKO,CB, VDE(pending) .

Q 8: what kind of payment terms can you offer ?
A 8: Normal terms of payment in international business such as T/T, Western Union, Paypal, L/C at sight

Usual way of payment for by sea goods:

30% advance ,70% balance before shipment

Compensation term:

Q9: If we bought your products, but found quality problem, how to solve?

A9: After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
