Definite Propose Contactor 3P 50A 230V 50/60Hz

Definite Propose Contactor 3P 50A 230V 50/60Hz thumbnail-1
Definite Propose Contactor 3P 50A 230V 50/60Hz photo-1
US$ 0.6 - 0.8 MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KASAN Definite Propose Contactor
Model Number:
SC-3P-50A-230V Definite Propose Contactor
Contact Supplier Request Quote Chat Now
Yueqing Kasan Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name KASAN Definite Propose Contactor
Model Number SC-3P-50A-230V Definite Propose Contactor
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, 230V
Main Circuit Rating Current Other, 50A

Definite Propose  Contactor 3P 50A 230V 50/60Hz



1.Application



This series contactor is mainly applicable to a line of AC 50Hz or 60Hz, rated working voltage up to 600V and rated working current up to 60A, used to close or and to switch off the line. It complies to IEC947-4-1 .Straight-through wiring, replaces 1.5 pole devices used primarily in residential central air conditioning

Replaces many type 117 contactors used by OEM’sUniversal style mounting brackest fits existing mounting holes Screw terminals and quick connect terminals for easy installation.





2.Specification









Coil rating 1Pole contactors 2 pole contacts
Nominal coil voltage 24 120 208/240 277 24 120 208/240 277
Nominal coil resistance Ohms 18 420 1800 2500 11 237 1000 1600
Maximum pick up voltage 18 88 177 221 18 88 177 221
Maximum drop out voltage 6-15 20-70 40-140 50-165 6-15 20-70 40-140 50-165
Nominal rush Va@50Hz 31 31 31 31 33 33 33 33
Nominal rush Va@60Hz 28 28 28 28 30 30 30 30
Nominal rush Va@50Hz 6 6 6 6 8 8 8 8
Nominal rush Va@60Hz 5 5 5 5 6.5 6.5 6.5 6.5
Maximum coil voltage 30 132 264 300 30 132 132 300





Coil rating 3Pole contactors 4 pole contacts
Nominal coil voltage 24 120 208/240 277 24 120 208/240 277
Nominal coil resistance Ohms 7 180 720 900 6 150 600 750
Maximum pick up voltage 18 88 177 220 18 88 177 220
Maximum drop out voltage 6-15 20-70 40-140 50-165 6-15 20-70 40-140 65-185
Nominal rush Va@50Hz 65 65 65 65 62 62 62 62
Nominal rush Va@60Hz 60 60 60 60 59 59 59 59
Nominal rush Va@50Hz 7.5 7.5 7.5 7.5 9 9 9 9
Nominal rush Va@60Hz 6 6 6 6 7 7 6 7
Maximum coil voltage 30 132 264 300 30 132 264 300

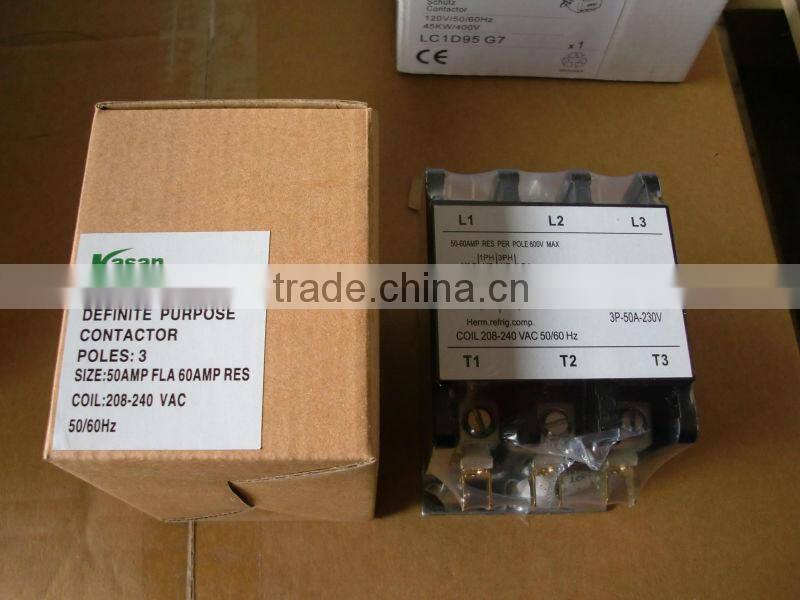

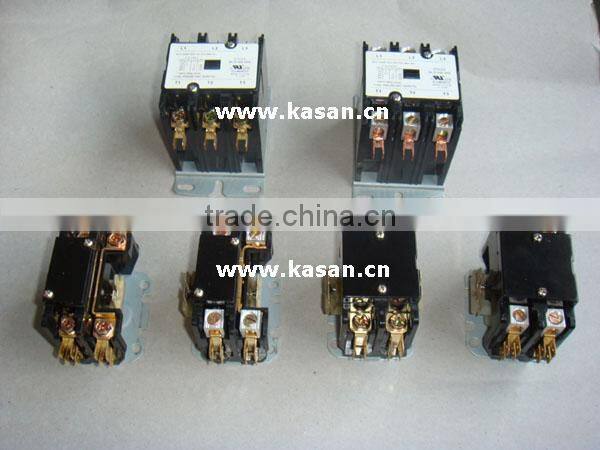

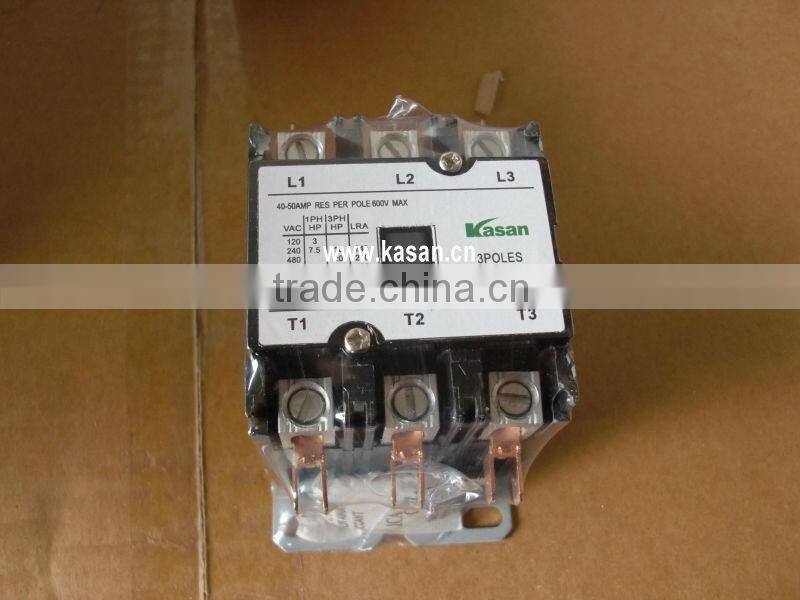

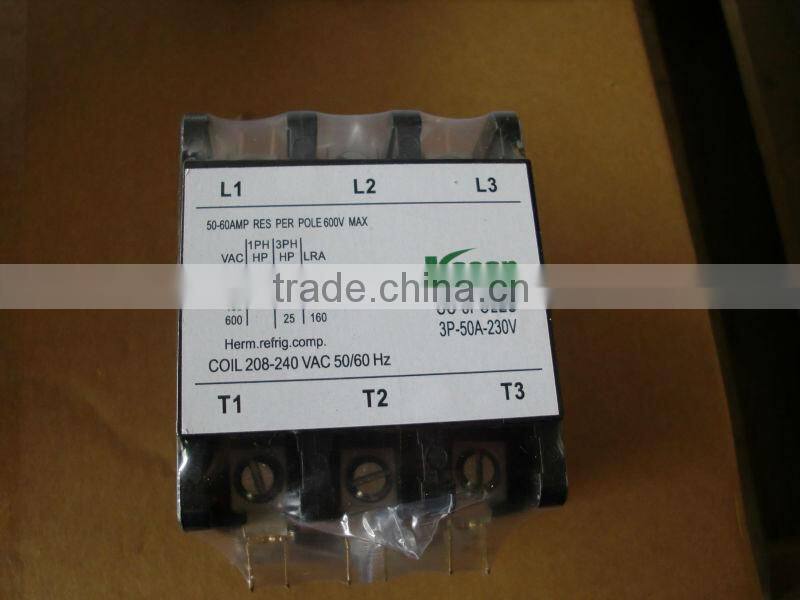

3. Photo of Item and Package



Definite Propose Contactor 3P 50A 230V 50/60HzDefinite Propose Contactor 3P 50A 230V 50/60HzDefinite Propose Contactor 3P 50A 230V 50/60HzDefinite Propose Contactor 3P 50A 230V 50/60Hz



 Definite Propose Contactor 3P 50A 230V 50/60Hz

Yueqing KASAN Electric Co.,LTD, is one of the best manufacturer and exporter companies in Liushi,Wenzhou. We specialize in export various low voltage electrical products with over 50 series and more than 6000 specifications have been producing electrical goods for more than 10 years in this line, which also a BV assessed gold supplier on Alibaba.

Our Promise to customer:

    1.     Quality Guaranteed

    2.     Delivery time guarantee

    3.     Provide superior service to fit customer need

Definite Propose Contactor 3P 50A 230V 50/60HzDefinite Propose Contactor 3P 50A 230V 50/60Hz

Definite Propose Contactor 3P 50A 230V 50/60HzDefinite Propose Contactor 3P 50A 230V 50/60HzDefinite Propose Contactor 3P 50A 230V 50/60HzDefinite Propose Contactor 3P 50A 230V 50/60HzDefinite Propose Contactor 3P 50A 230V 50/60HzDefinite Propose Contactor 3P 50A 230V 50/60Hz

Definite Propose Contactor 3P 50A 230V 50/60Hz
