What makes us better than others
YT-P2 Nailless plywood box machine
This Roll Forming Machine consist of sheet feeding device, roll forming main machine, hydraulic system, PLC controller.
Working Flow
sheet feeding--roll forming--automatic cutting--run out table
Main Parameter
No | Item | Parameter | Note | |
1 | Suitable | Type | Pre-paint Steel Aluminum |
|
Width | 40mm-42mm |
| ||
Thickness | 0.65mm-0.8mm |
| ||
2 | Product | Length | Any length | Adjustable |
3 | Machine | Active Shaft | NO.45 steel tempered |
|
Roller | NO.45 steel chrome plated |
| ||
Cutting Blade | Cr12 quenched |
| ||
4 | Power | Type | 380V/3PH/50HZ |
|
Total | 7.5KW |
| ||
Hydraulic | 4KW |
| ||
5 | Speed | Forming Speed | 15-20m/min | Adjustable |
Product Speed | 7-10m/min | Adjustable | ||
6 | Transmission | Chain,Sprocket |
| |
7 | Main Machine Structure | Wall Panel |
| |
8 | Type Of Cutting | Length-set cutting |
| |
9 | Control System | PLC | Mitsubishi(Japan) |
|
Encoder | Omron(Japan) |
| ||
Sensor | Japan |
| ||
10 | Product Support | Run out table |
| |
11 | Electric System | Schneider(France) |
| |
12 | Power System | Servo | TECO(Taiwan) |
|
Reducer | Xingxing(Taiwan) | |||
Detailed Picture

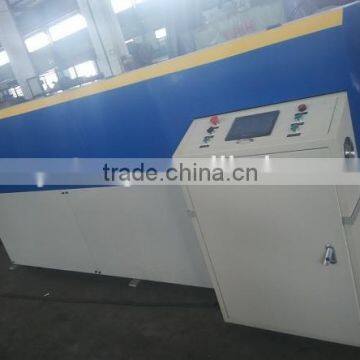

Nailless / Foldable / Collapsible / No-nail Plywood box machine
Software

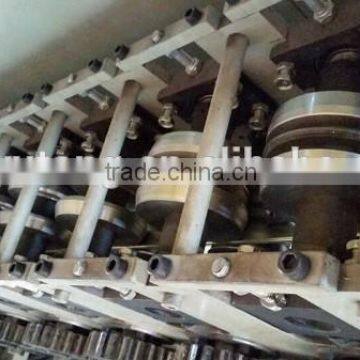

Rollers
moulds
safty shield
Steel Strip / Belt / Band
buttons
Nailless / Foldable / Collapsible / No-nail Plywood box
If you have any question pls let us know when you feel free, thank you!
