YT-R7 Cold Roll Forming Machine

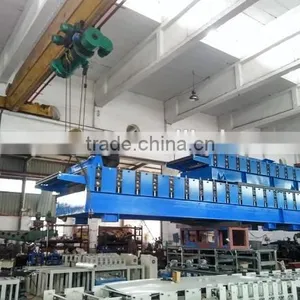

YT-R7 Cold Roll Forming Machine thumbnail-1

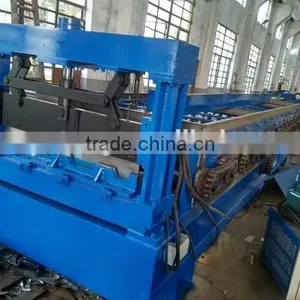

YT-R7 Cold Roll Forming Machine thumbnail-2

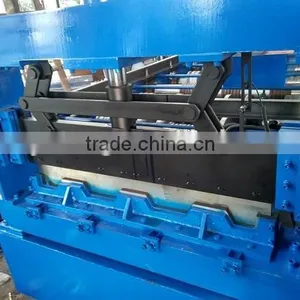

YT-R7 Cold Roll Forming Machine thumbnail-3

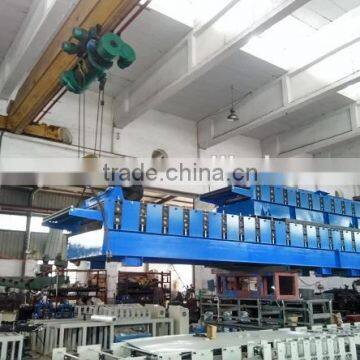

YT-R7 Cold Roll Forming Machine photo-1

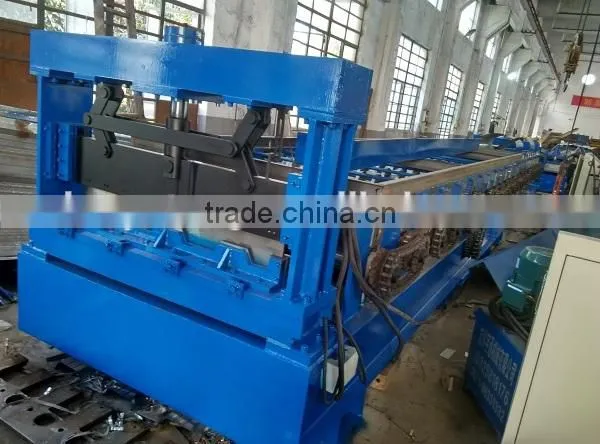

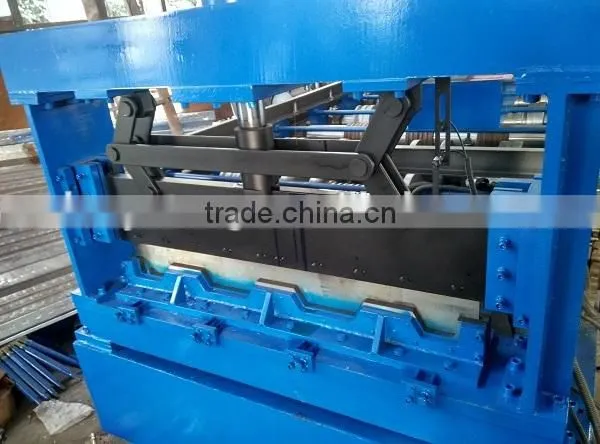

YT-R7 Cold Roll Forming Machine photo-2
YT-R7 Cold Roll Forming Machine photo-3
US$ 1 - 69,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Yutong
Contact Supplier Request Quote Chat Now
Hangzhou Yutong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name Yutong
Model Number YT-R7
Voltage 380V, 380v/50hz/3phase
Weight 16000KG, 16000kgs
Certification EU CE Certificate, ISO9001 2008 Authentication
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas
Type Other, Metal forming machine
Tile Type Other, Glaze Steel
Power(W) 22kw
Dimension(L*W*H) 16.8m x 1.78m x 1.72m

Specifications

Floor deck Forming Machine
1) Diameter of shaft: 90mm
2) Thickness of wall panel: 20mm
3) rollers be digital processed



1.Process flow

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – Run out table



2.Technical parameter

Item

Specification



Material

Type

galvanized coils

Thickness(mm)

0.8-1.2mm

Yield strength(mpa)

235

Roller material

45#Chrome steel

Forming speed(m/min)

15-18

Output speed(m/min)

8

Speed adjusting mode

AC Frequency

Roller drive

Decelerating motor + Chain drive

Cutting mode

Hydraulic cutting

Cutter material

Cr12 mould steel

Length measurement

Encoder

Control system

Mitsubishi PLC & transducer

Operating mode

Button + Mitsubishi Touch screen

Main motor power(kw)

11KW x 2(Up to profile)

Hydraulic station motor power(kw)

 4 KW



3. Components of machine

Decoiler

1set

Feeding & guiding device

1set

Main roll forming machine

1set

Hydraulic cutting system

1set

Controlling system

1set

Run out table

1set



4. Pictures

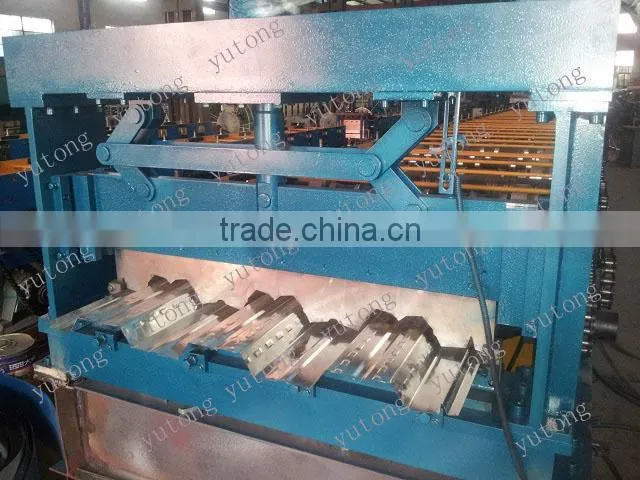

Roll forming machine

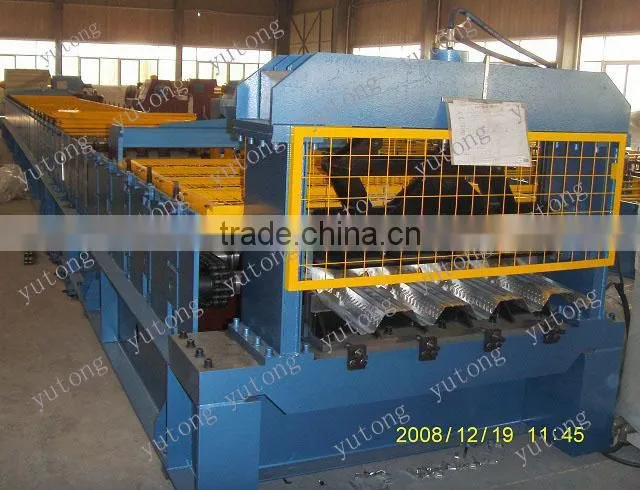

YT-R7 Cold roll forming machine

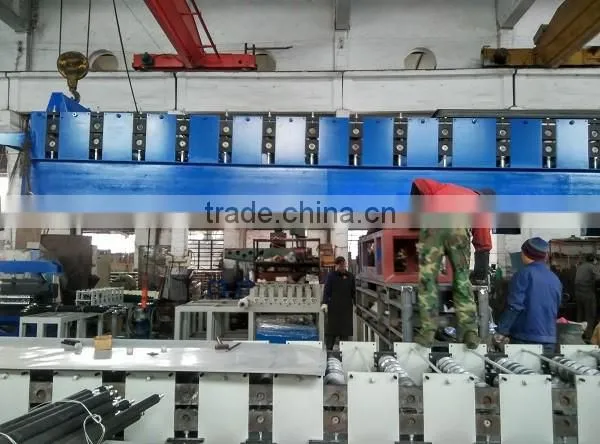

YT-R7 Cold roll forming machine

YT-R7 Cold roll forming machine

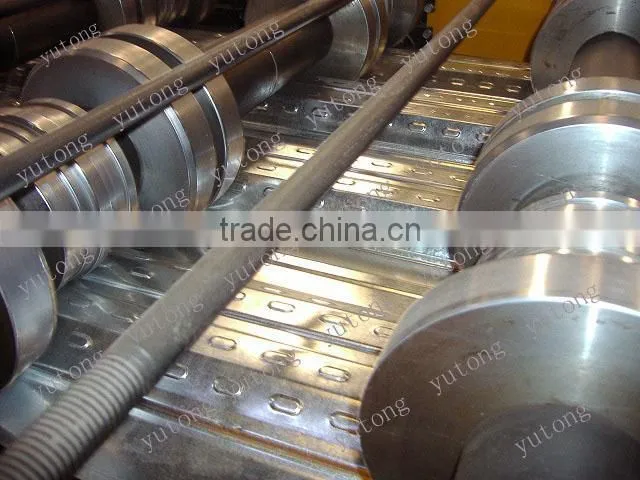

CNC processed high precision roller with chrome coated, ensure the roll forming precision and lifetime



YT-R7 Cold roll forming machine

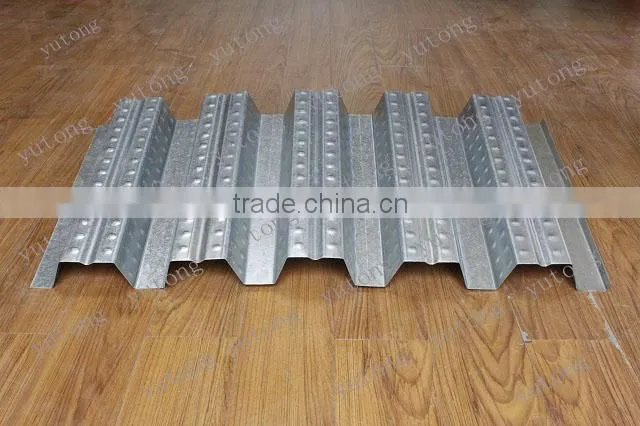

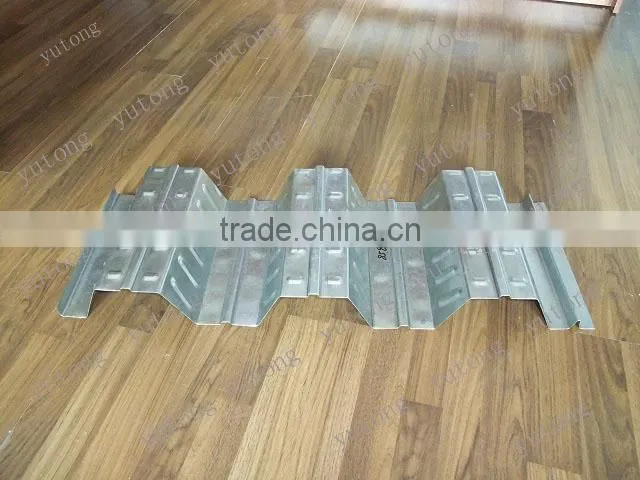

Profile

YT-R7 Cold roll forming machineYT-R7 Cold roll forming machine

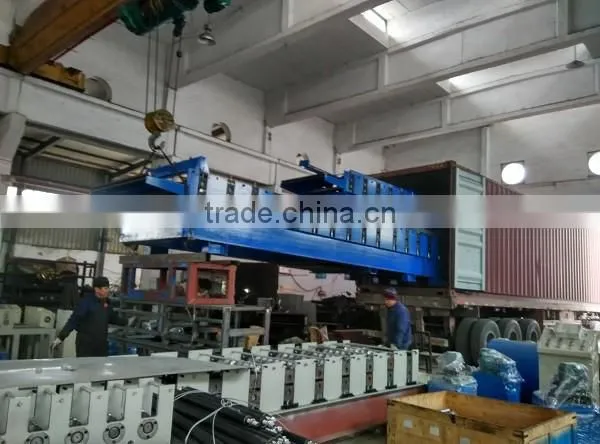

Container Loading

YT-R7 Cold roll forming machine

YT-R7 Cold roll forming machineYT-R7 Cold roll forming machine
