Automatic hydraulic steel coil decoiler with coil car for sale
We produce many diffrent kinds of hydraulic decoiler,the Max. width of coil and capacity are up to customers.
Our marketing and design staff will respectfully listen to your definite requirements,design and produce your famous equipment.
Specifications
1.Reliable and stable
2.Fast deliver
3.easy operation
4.high productivity
5.PLC control system
6.The decoiler can be auto-adjusted according to the inner diameter of the coil.
7.The machine is stable.
8.Coil Expansion: Hydraulic
Main parameters
Expanding Range |
Φ480~Φ520mm |
Capacity |
5 Ton |
Max width for coil |
1300mm |
Power of hydraulic station |
4KW |
The motor power |
4KW |
Hydraulic pressure |
25Mpa |
Material of shaft |
Gcr45 steel |
Size of decoiler |
About (H*L*W)1.8M*2.5M*1.2M |
Weight of equipment |
About 4.2 Ton |
Electric condition |
380V/3Phase/50HZ(or depend on customers requirement) |
Decoiling type |
motor driving |

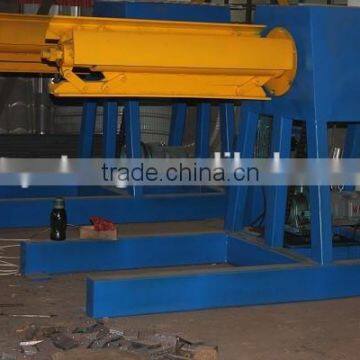

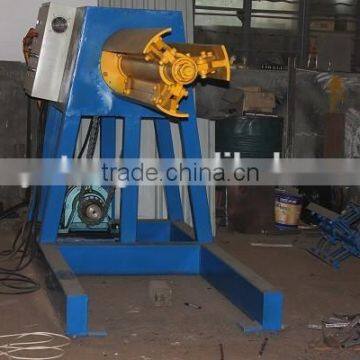

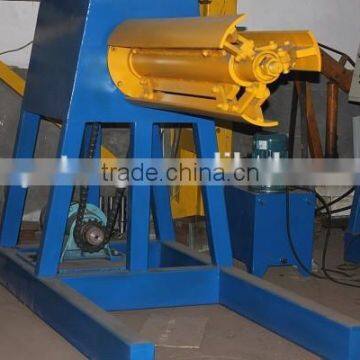

Pictures
Automatic Hydraulic decoiler without car coil
The function of decoiler is to support raw material for all kinds of roll forming machines.
Specification
1.Suitable to process: color steel coil, steel coil, galvanized coil and so an.
2.Fast deliver
3.easy operation
4.high productivity
5.PLC control system
6.The decoiler can be auto-adjusted according to the inner diameter of the coil.
7.The machine is stable.
8.Coil Expansion: Hydraulic
Main parameters
Expanding Range |
Φ480~Φ520mm |
Capacity |
5 Ton |
Max width for coil |
1300mm |
Power of hydraulic station |
4KW |
The motor power |
4KW |
Hydraulic pressure |
25Mpa |
Material of shaft |
Gcr45 steel |
Size of decoiler |
About (H*L*W)1.8M*2.5M*1.2M |
Weight of equipment |
About 3 Ton |
Packaging Detail
main body of machine nake loaded into container, covered with plastic film, spare parts in wooden box.
Delivery Detail: 30days
After-sale Service
1. we will provide the technical support for the whole life of the equipment
2. We offer the technical support for whole life of our machines
3. We can send the technicians to install and train the workers in the clients’ factories.
4.If buyers need the technician to go abroad
If you have any question pls let us know when you feel free, thank you!
