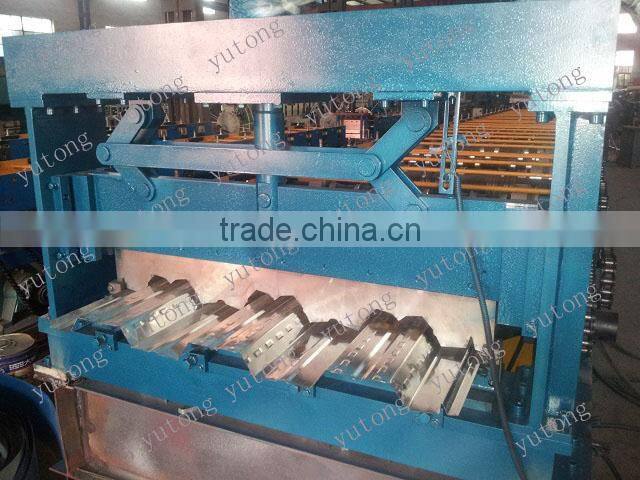

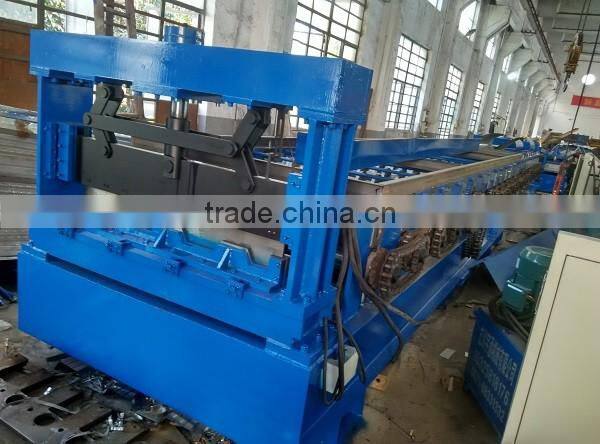

YT-R7 Forming machine

1.Process flow

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – Run out table

2.Technical parameter

Item		Specification
Material	Type	galvanized coils
	Thickness(mm)	0.8-1.2mm
	Yield strength(mpa)	235
Roller material		45#Chrome steel
Forming speed(m/min)		15-18
Output speed(m/min)		8
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Encoder
Control system		Mitsubishi PLC & transducer
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		11KW x 2(Up to profile)
Hydraulic station motor power(kw)		4 KW

3. Pictures

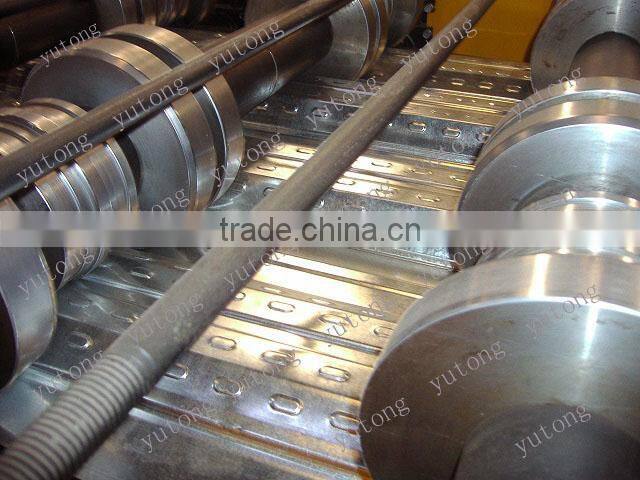

CNC processed high precision roller with chrome coated, ensure the roll forming precision and lifetime

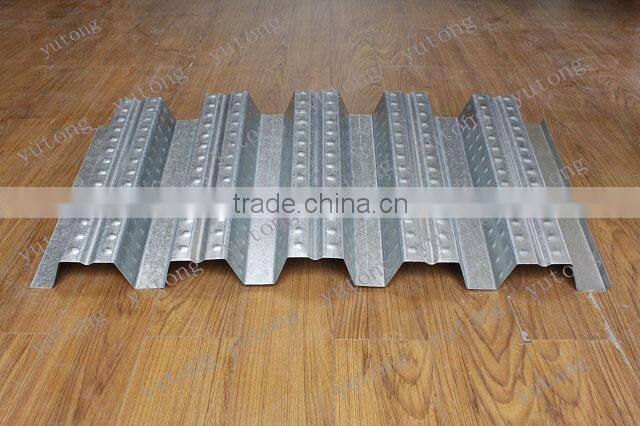

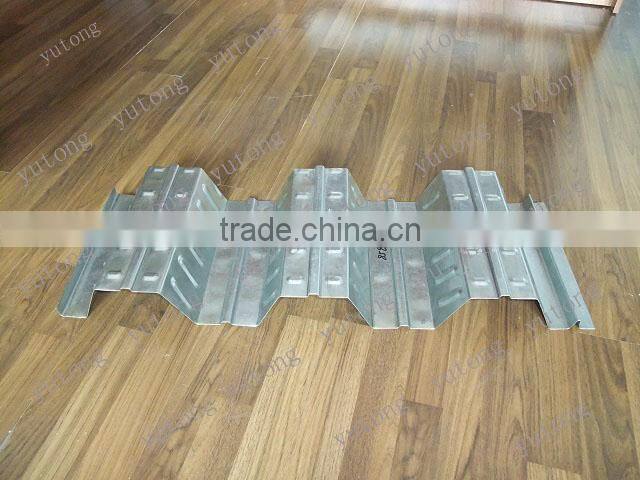

Profile

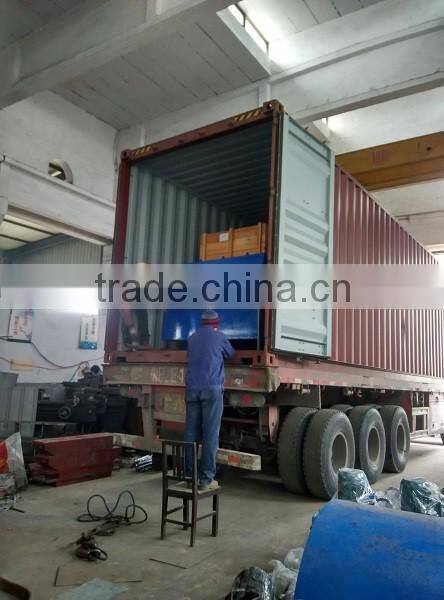

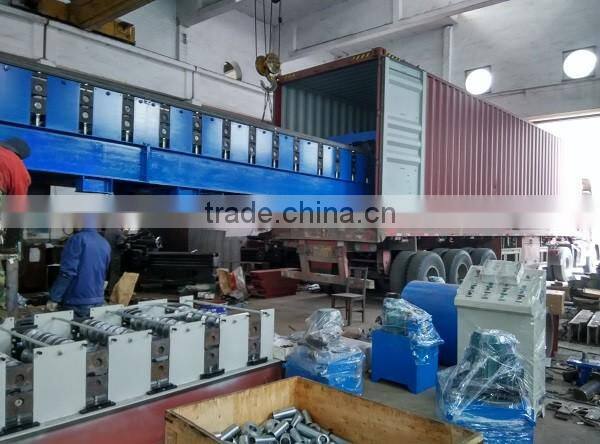

Container Loading

If you have any question pls let us know when you feel free, thank you!
