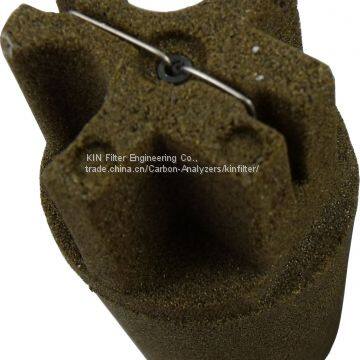

Thermal Analysis Carbon Cup for Molten Iron Analysis
US$ 0.1 - 0.5
MOQ: 1 Piece
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
21 days
Related Products
-
Thermocouple Types R With Refractory Cotton With Fast and Stable ReactionUS$ 0.1 - 0.5MOQ: 1 Piece -
High Silica Fiberglass Mesh FilterUS$ 0.1 - 0.5MOQ: 1 Piece
-
Ceramic Foam Filter for Casting Industry to Filter Molten Metal LiquidUS$ 0.1 - 0.5MOQ: 1 Piece
-
Circular Carbon and Sulphur Analyzer Carbon Cups Thermal Analysis CupsUS$ 0.4 - 0.8MOQ: 1 Piece
-
Thermal Analysis Carbon Cup for Molten Iron AnalysisUS$ 0.1 - 0.5MOQ: 1 Piece
Place of Origin
China
Product Description
Thermal Analysis cup composition
1. Resin bonded sand
- Sand (SiO2 > 94% and Silt content - Thermoplastic phenol resin 6-10% of sand
- Urotropine (resin hardener) 10-15% of resin
2. Tellurium grains
3. Silica coating
4. K- type thermocouple tube
Production
Well-graded and clean sand, thermoplastic phenol resin and Urotropine (resin hardener) are dry mixed at the temperature of 500 degree Celsius to produce "resin bonded sand". This resin bonded sand is shot into the pre-heated mold with having the K-type thermocouple tube inside. At the temperature of 250 degree Celsius, the cup is formed by the resin bond. This cup is coated inside with silica for being thermal insulation and then filled in the cup with 15 gram of Tellurium. By means of drying this coated cup at the temperature of 80 degree Celsius for 4 hours, the carbon cup is ready for the casting control.
Application
The expendable carbon cup (thermal analysis cup) is for determining the Carbon equivalent, % Carbon and % Silicon in molten iron by using the principle of thermal analysis. The advantages of this carbon cup are as follows:
1. With Tellurium grain, the complete white iron solidification can be met
2. Fast thermocouple response
3. Precisely measuring the temperature of melting iron sample
4. Provide uniform cooling curve
5. High accuracy of the content of Carbon and Silicon
6. Improve the casting process control
Standard Packing
100 pieces a carton
Carton Size (cm)
28x54x21
Gross Weight (kg)
10.00
1. Resin bonded sand
- Sand (SiO2 > 94% and Silt content - Thermoplastic phenol resin 6-10% of sand
- Urotropine (resin hardener) 10-15% of resin
2. Tellurium grains
3. Silica coating
4. K- type thermocouple tube
Production
Well-graded and clean sand, thermoplastic phenol resin and Urotropine (resin hardener) are dry mixed at the temperature of 500 degree Celsius to produce "resin bonded sand". This resin bonded sand is shot into the pre-heated mold with having the K-type thermocouple tube inside. At the temperature of 250 degree Celsius, the cup is formed by the resin bond. This cup is coated inside with silica for being thermal insulation and then filled in the cup with 15 gram of Tellurium. By means of drying this coated cup at the temperature of 80 degree Celsius for 4 hours, the carbon cup is ready for the casting control.
Application
The expendable carbon cup (thermal analysis cup) is for determining the Carbon equivalent, % Carbon and % Silicon in molten iron by using the principle of thermal analysis. The advantages of this carbon cup are as follows:
1. With Tellurium grain, the complete white iron solidification can be met
2. Fast thermocouple response
3. Precisely measuring the temperature of melting iron sample
4. Provide uniform cooling curve
5. High accuracy of the content of Carbon and Silicon
6. Improve the casting process control
Standard Packing
100 pieces a carton
Carton Size (cm)
28x54x21
Gross Weight (kg)
10.00
