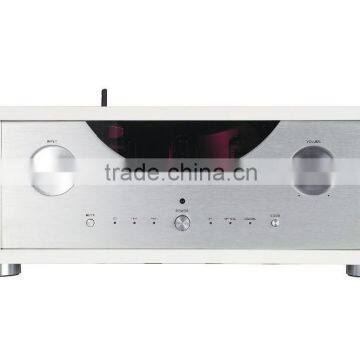

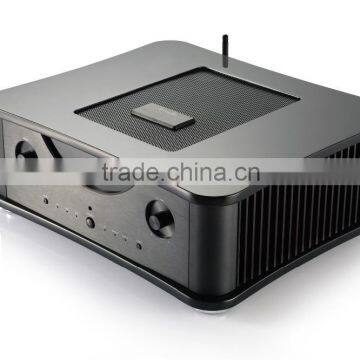

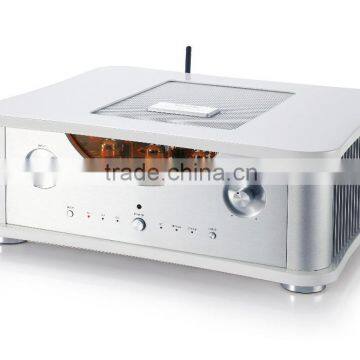

Digital wireless bluetooth receiver 12A * 7 electron tube amplifier integrated digital stereo amplifier

Digital wireless bluetooth receiver 12A * 7 electron tube amplifier integrated digital stereo amplifier

Digital wireless bluetooth receiver 12A * 7 electron tube amplifier integrated stereo amplifier

Technical Data

• Frequency response: 20 Hz - 20 kHz ±0.5 dB
• Maximum output power at 8 Ohm: 2 x 150 Watt (RMS)
• Maximum output power at 4 Ohm: 2 x 250 Watt (RMS)
• Input sensitivity: 400 mV
• Total Harmonic Distortion: < 0.1% (1 kHz, 1 W)
• Signal-to-noise ratio: > 90 dB
• Input impedance: 47 kOhm

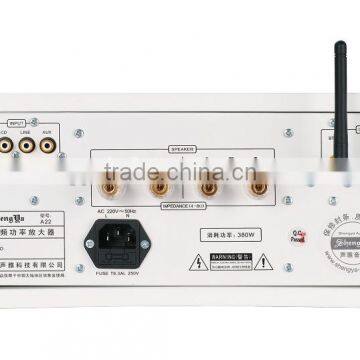

• Input: 4 x stereo RCA
• Output: 4 x 2 Speaker terminals
• Dimensions (WxHxD): 430 x 155 x 375 mm
• Weight: 16 kg
• Colour: black/silver
• Tubes: 1 x 12AX7,   1 x 12AU7

Detail Description

• The most successful Shengya amplifier of all time

  The logical development of an amplifier legend starting from A-10CS to A-17CS, leading to the A-22CS, an amplifier that is almost unrivalled in its price range and has improved the few minor weaknesses of the previous models, and has received an up to date Bluetooth, Optical, and Coaxial input.

  The correct structure decides!

  Under the leadership of Shengya R&D department, the circuit design was completely revised and improved. Thus, in the output stage section a phase reserve of 90° was reached by making various changes. This phase reserve provides a much better transient response to complex loads (loudspeakers). Because the amplifier always works virtually during normal operation in state of the transient oscillation - Music represents transient pulses – the improvements can be heard elementary. Musicality and sound are much better than its predecessor. Even the most difficult loudspeakers can be powered easily. The amplifier always dominates the complex load (loudspeaker) without sounding strained.

  Even better!

  Here, the tube-like musicality is maintained and an analytical coldness never comes in the sound. Another advantage of the improved circuit design is a greatly improved signal to noise ratio. It results in an excellent playback quality also on high efficiency speakers such as the Impulse series of Dynavox: Noise was once. Enjoy explosive live performance as a result of excellent dynamics. Moreover, the volume control has been finely adjusted. Thus, the volume level can be set precisely using remote control.

Q1:How's the delivery time?

A: Usually it will take about 30-35 days for production.

Q2: Can you produce according to customers'design?

A: Sure, we are professional ktv audio manufacturer,OEM &ODM are welcome.

Q3: What's the payment term?

A: We accept T/T, 30% deposit and 70% balance before shipping.

Q4: Tell me the standard of package?

A: For the small capacity, inside filling the foams, outside using carton, but for big capacity, we should use strong wooden case for protection.
