Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > FRN Series - 3W Fixed Metal Glaze Film Flame Proof Resistors (High Voltage / High Resistance Value)
FRN Series - 3W Fixed Metal Glaze Film Flame Proof Resistors (High Voltage / High Resistance Value)
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
THUNDER
Model Number:
RLN
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RLN Series - 1/2W Fixed Metal Glaze Film Flame Proof Resistors (High Voltage / High Resistance Value)NegotiableMOQ: 2000 Pieces -
CH Series - 10W Fixed High Power Fixed Type & Adjustable Type Wire Wound ResistorsNegotiableMOQ: 50 Pieces
-
AH Series - 5W Fixed Aluminum Housed WireWound ResistorsNegotiableMOQ: 100 Pieces
-
MPR Series - 2W Fixed Metal Plate Non-Inductive Cement ResistorNegotiableMOQ: 1000 Pieces
-
CH Series - 10W Fixed High Power WireWound Resistors (Non-Inductive Optional)NegotiableMOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
THUNDER
Model Number
RLN
Type
Fixed Resistor
Technology
Other, Metal Glaze
Package Type
Throught Hole
Resistance
5K ~ 500M OHM
Resistance Tolerance
1%, 2%, 5%
Rated Power
3W
Temperature Coefficient
200PPM
Operating Temperature
-55 ~ 155 Degree C
Specifications
3W Fixed Metal Glaze Film Resistors- High Resistance : 500M ohm
- High Reliability
- High Wattage
- Flame Proof

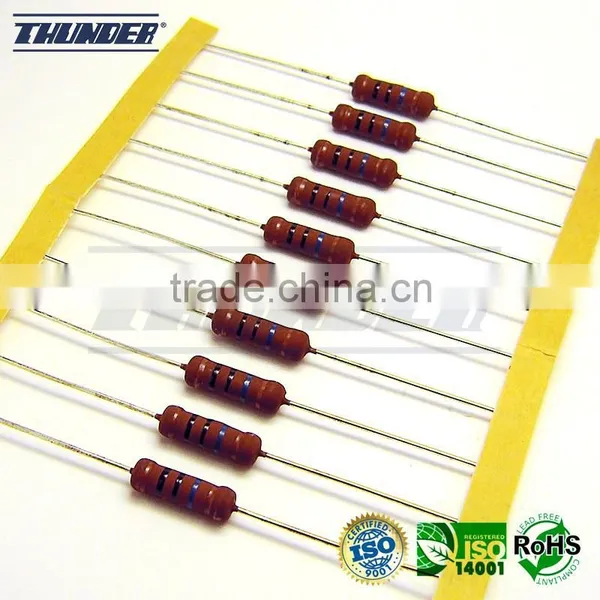

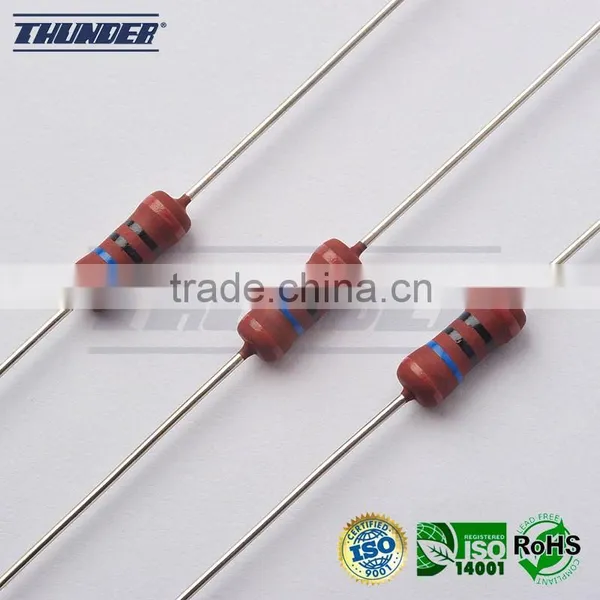

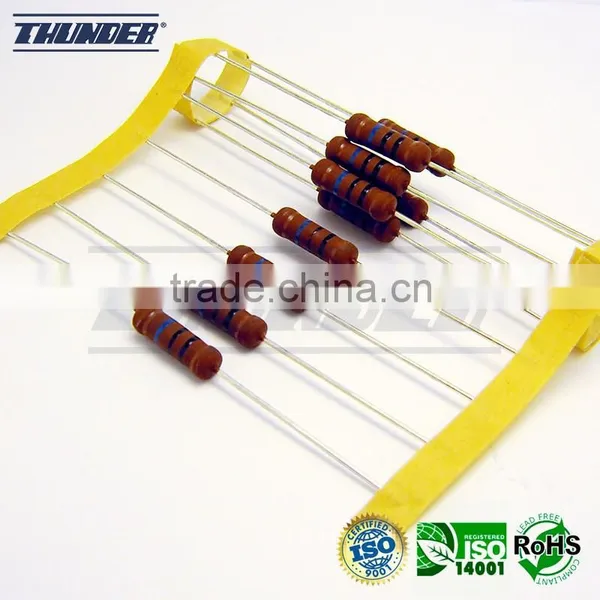

3W Fixed Metal Glaze Film Flame Proof Resistors (High Voltage / High Resistance Value)
| TYPE | Power Rating | Max. Working Voltage | Resistance Range |
| RLN1/4W | 0.25W | 500V | 100Ω~300MΩ |
| RLN1/2W | 0.5W | 700V | 100Ω~300MΩ |
| RLN1W | 1W | 1000V | 100Ω~300MΩ |
| RLN2W | 2W | 1500V | 100Ω~300MΩ |
- Properties:
- Temperature coefficient of resistance: +/-200ppm/degrees Celsius
- Short time overload: +/- (1%+ 0.05 ohm)
- Dielectric withstanding voltage: no evidence of damage
- Insulation resistance: > 1000M ohms
- Terminal strength: no evidence of damage
- Moisture load life: +/- (5%+ 0.05 ohm)
- Load life at 70 degrees Celsius: +/- (5%+ 0.05 ohm)
- Temperature cycling: +/- (1%+
- 0.05 ohm)
- Resistance to soldering heat: +/- (1%+ 0.05 ohm)
- Solderability: >95%
- Resistance to solvent: no evidence of damage
- Flame-resistant: no evidence of damage
- Resistance tolerance: +/-1%, +/-2%, +/-5%, +/-10%

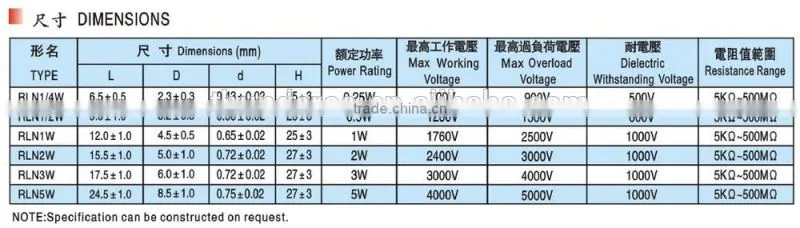

- Series available:
- RL/RLN/RLF1/4W:
- Dimensions (mm): 6.5+/- 0.5 (L); 2.3+/- 0.3 (D); 0.6 +/- 0.05 (d); 28 +/- 3 (H)
- Resistance: 100 to 33M ohms
- Power rating: 0.25W
- Maximum working voltage: 500V
- Maximum overload voltage: 700V
Dielectric withstanding voltage: 500V
- RL/RLN/RLF1/2W
- Dimensions (mm): 9.0 +/- 1.0 (L); 3.2 +/- 0.5 (D); 0.7+/- 0.05 (d); 28 +/- 3 (H)
- Resistance: 100 to 33M ohms
- Power rating: 0.5W
- Maximum working voltage: 700V
- Maximum overload voltage: 1000V
- Dielectric withstanding voltage: 700V
- RL/RLN/RLF1W
- Dimensions: 12.0 +/- 1.0 (L); 4.5 +/- 0.5 (D); 0.8+/- 0.05 (d); 32 +/- 3 (H)
- Resistance: 100 to 33M ohms
- Power rating: 1W
- Maximum working voltage: 1000V
- Maximum overload voltage: 1500V
- Dielectric withstanding voltage: 1000V
- RL/RLN/RLF2W:
- Dimensions (mm): 15.5 +/-1.0 (L); 5.0 +/- 1.0 (D); 0.8 +/- 0.05 (d); 35+/- 3 (H)
- Resistance: 100 to 33M ohms
- Power rating: 2W
- Maximum working voltage: 1500V
- Maximum overload voltage: 2000V
Dielectric withstanding voltage: 1000V
- RL/RLN/RLF1/4W:
- Characteristics:
- High resistance
- High reliability
- High precision
Packaging & Shipping

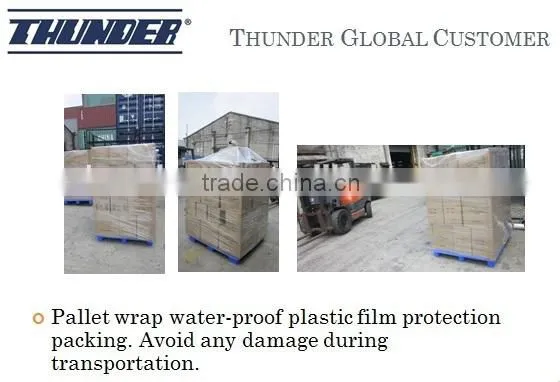

Standard Packing : Plastic Pallet wrapped by water proof plastic film
Optional Packing : Strong Metal Pallet with wood cover to protect products withour damages during transportation.
Company Information
Thunder Group was established in Taiwan Taipei in 1971, which has produced resistors more than 40 years. We have provided our products around the world including Vishat Dale Electronics, Panasonic, and Funkushima Futaba. We believe our professional experience can offer you best quality resistors with the most competitive price and fast lead-time.

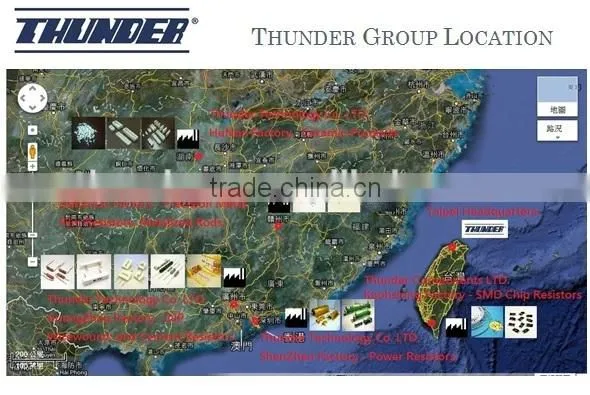

Thunder Group Location

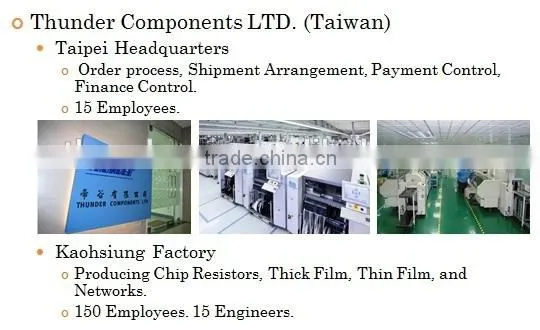

Taipei Headquarters & Kaohsiung SMD Chip Resistor Factory

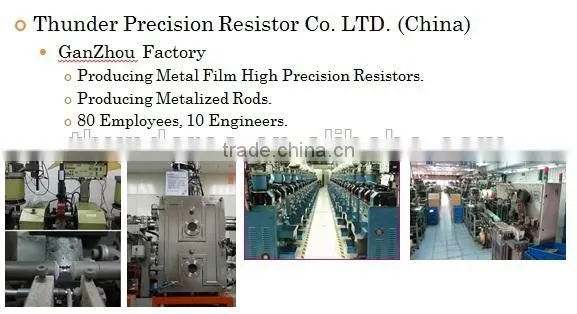

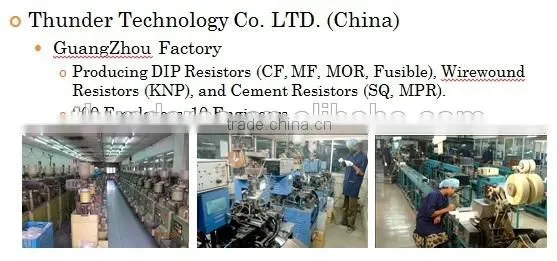

GuangZhou Factory

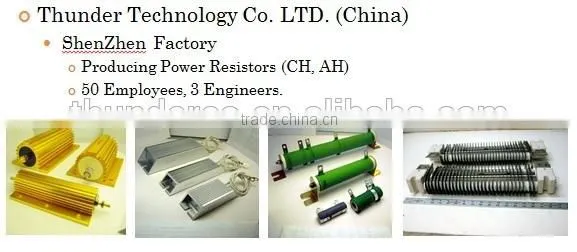

ShenZhen Factory

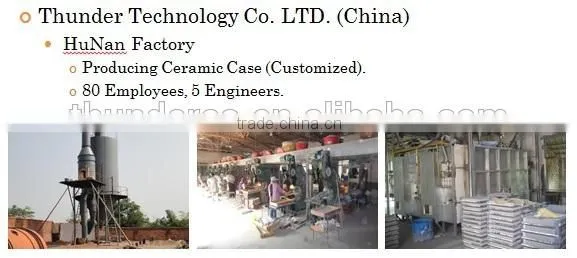

HuNan Factory
GabZhou Factory
Contact Us

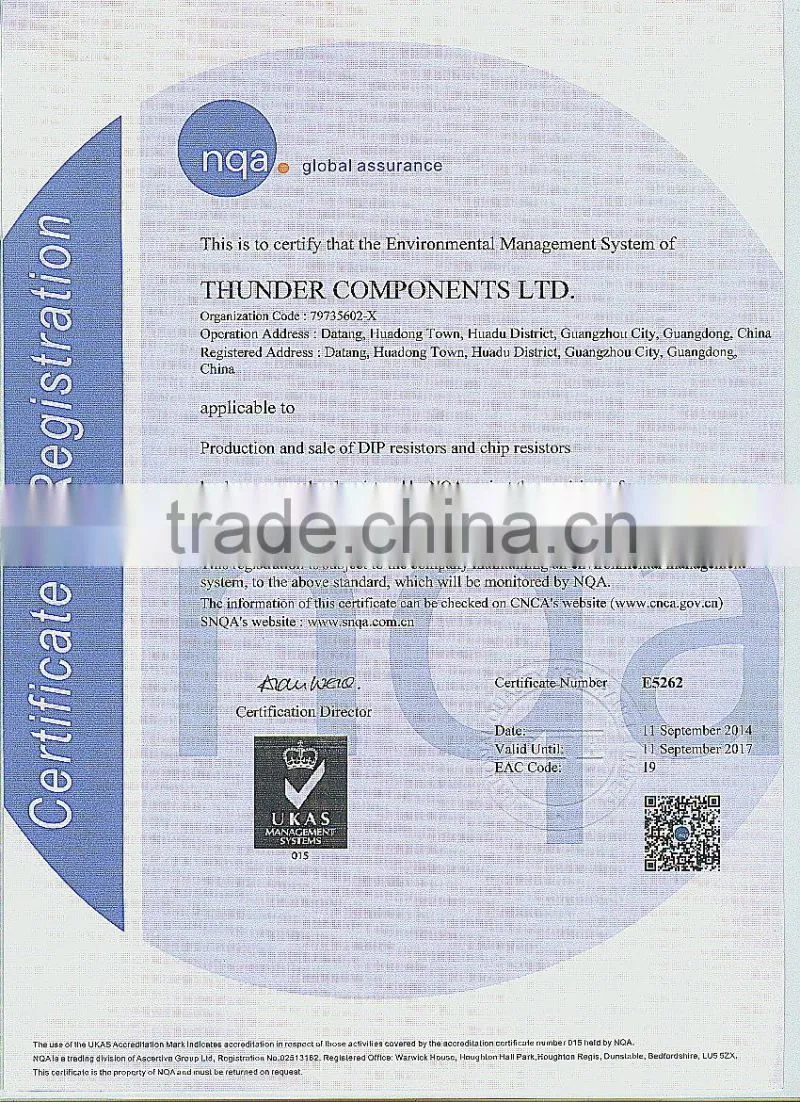

Certifications

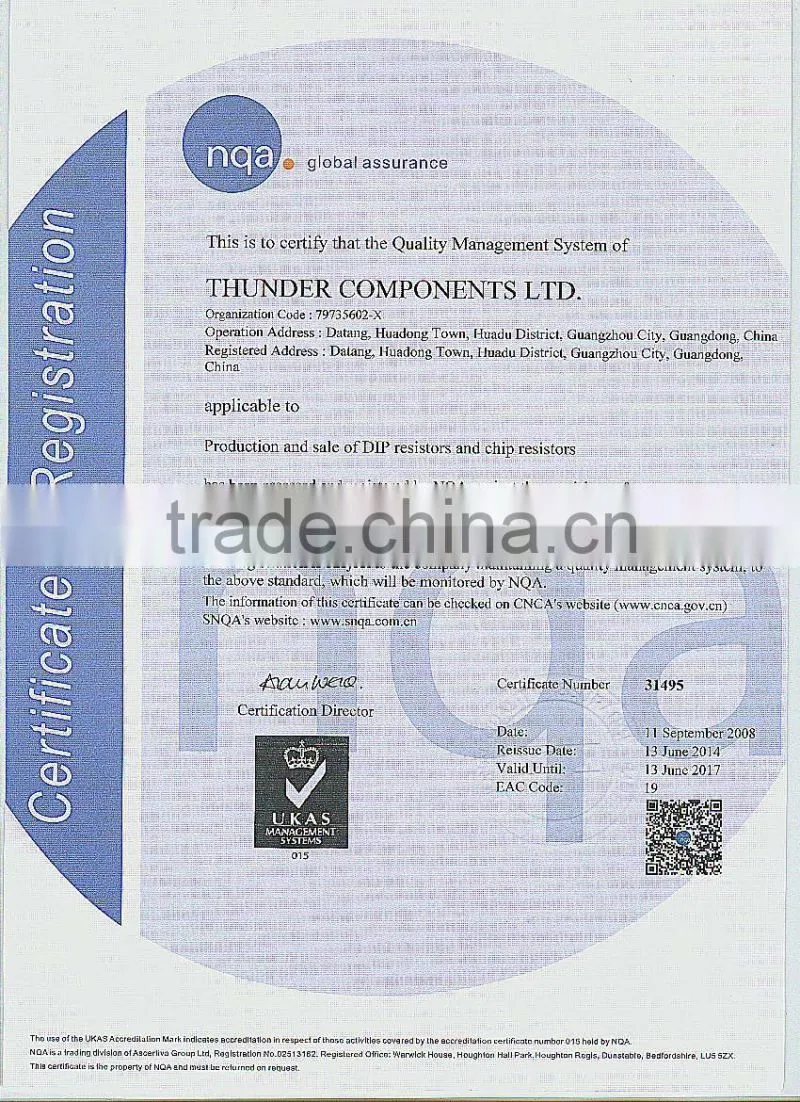

ISO 9001:2008
