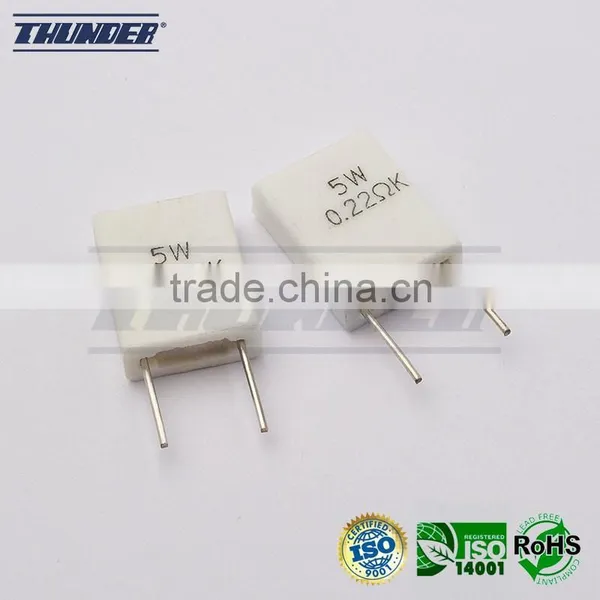

MPR Series - 5W Fixed Metal Plate Non-Inductive Cement Resistor
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
THUNDER
Model Number:
MPR
Type:
Fixed Resistor
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MPR Series - 3W Fixed Metal Plate Non-Inductive Cement ResistorNegotiableMOQ: 1000 Pieces -
10000W Fixed High Power WireWound Resistors (Non-Inductive Optional)NegotiableMOQ: 1 Piece
-
5000W Fixed High Power WireWound Resistors (Non-Inductive Optional)NegotiableMOQ: 1 Piece
-
4000W Fixed High Power WireWound Resistors (Non-Inductive Optional)NegotiableMOQ: 1 Piece
-
2000W Fixed High Power WireWound Resistors (Non-Inductive Optional)NegotiableMOQ: 1 Piece
Brand Name
THUNDER
Model Number
MPR
Type
Fixed Resistor
Technology
Cermet
Package Type
Throught Hole
Resistance
Under 1ohm
Resistance Tolerance
1% ~ 10%
Rated Power
5W
Temperature Coefficient
300PPM
Operating Temperature
-55~155 Degree C
Specifications
5W Fixed Metal Plate Cement Resistor- Non-Inductive
- High Stability
- High Precision
- High Reliable
Packaging & Shipping
Standard Packing : Plastic Pallet wrapped by water proof plastic film
Optional Packing : Strong Metal Pallet with wood cover to protect products withour damages during transportation.
Company Information
Thunder Group was established in Taiwan Taipei in 1971, which has produced resistors more than 40 years. We have provided our products around the world including Vishat Dale Electronics, Panasonic, and Funkushima Futaba. We believe our professional experience can offer you best quality resistors with the most competitive price and fast lead-time.
Thunder Group Location
Taipei Headquarters & Kaohsiung SMD Chip Resistor Factory
GuangZhou Factory
ShenZhen Factory
HuNan Factory
GabZhou Factory
Contact Us
Certifications
ISO 9001:2008
ISO 14001:2004

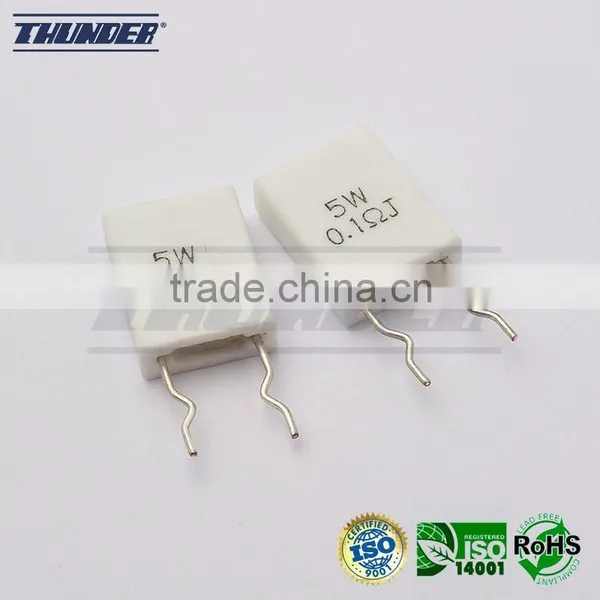

5W Fixed Metal Plate Non-Inductive Cement Resistor
| Rated | Resistance | Dimension : mm | |||||
| Power | Range,(Ω) | A | B | C | P-+1 | L | d |
| 2W | 0.01Ω - 0.051Ω | 8-+1.0 | 13-+1.0 | 4.5-+1.0 | 7-+1 | 0.6 | |
| 3W | 0.01Ω - 0.051Ω | 13-+1.0 | 14-+1.0 | 5-+1.0 | 9-+1.0 | 7-+1 | 0.6 |
| 5W | 0.01Ω - 0.051Ω | 18-+1.0 | 14-+1.0 | 5-+1.0 | 7-+1 | 0.8 | |
| 7W | 0.01Ω - 0.051Ω | 18-+1.0 | 26-+1.0 | 5-+1.0 | 9-+1.0 | 7-+1 | 0.8 |
| 10W | 0.01Ω - 0.068Ω | 20-+1.0 | 26-+1.0 | 5-+1.0 | 20-+1.0 | 7-+1 | 0.8 |
Key Specifications/Special Features:
- Metal plate (cement type) resistors
- Non-inductive
- With rated power
- Dimensions (mm):
- 2W: 8 +/- 1.0 (A) x 13 +/- 1.0 (B) x 4.5 +/-1.0 (C) x 9 +/-1.0 (P +/- 1) x 7 +/- 1 (L) x 0.8 or 0.6 (d)
- 3W: 13 +/- 1.0 (A) x 14 +/-1.0 (B) x 5 +/-1.0 (C) x 9 +/-1.0 (P +/- 1) x 7 +/-1 (L) x 0.8 or 0.6 (d)
- 5W: 18 +/-1.0(A) x 14 +/-1.0(B) x 5 +/-1.0 (C) x 9 +/-1.0 (P+/-1) x 7 +/-1 (L) x 0.8 or 0.6 (d)
- 10W: 20 +/- 1.0 (A) x 26 +/- 1.0 (B) x 5 +/- 1.0 (C) x 20 +/- 1.0 (P +/- 1) x 7 +/- 1 (L) x 0.8 (d)
- Resistance:
- 2W: 0.1 to 0.51 ohms
- 3W: 0.1 to 0.51 ohms
- 5W: 0.1 to 0.51 ohms
- 10W: 0.15 to 0.68 ohms
- Tolerance: +/-5%, +/-10%
