AR Series - Thick Film Resistor Networks (Array) (SIP), B Type

Name: AR Series - Thick Film Resistor Networks (Array) (SIP), B Type
Brand: THUNDER
SKU: 134819147

Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

THUNDER

Model Number:

Type:

Other, Resistors Network

Thunder Components Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

GuangZhou

Delivery Detail:

Delivery time depends on order quantity.

Brand Name THUNDER

Model Number RA

Type Other, Resistors Network

Technology Thick Film

Package Type Throught Hole

Resistance 10R~1M

Resistance Tolerance 1%~5%

Rated Power B Type : 0.2W, Others : 0.125W

Temperature Coefficient 200PPM

Operating Temperature -55~155 Degree C

Specifications

Thick Film Resistor Networks (Array) (SIP)
- High Reliability
- High Stability
- Minature, High Density Package
- Precision

Thick Film Resistor Networks (Array) (SIP), B Type

Substrate: 96% a aluminum provides superior thermal properties and cooler operation
Resistors and Conductors: thick film materials with proven reliable performance
Terminals: clamped and soldered to substrate to ensure mechanical and electrical integrity. Solder coated copper alloy provides high electrical conductivity and thermal transfer. Good performance in D.I water cleanliness
High Temperature Solder: used to prevent reflow under printed circuit board assembly operations
Conformal coating: is applied over an organic primary protection undercoat to isolate network elements from physical and environmental hazards and to ensure reliable performance
Date Codes: are provided on all devices for lot tractability. (except for 4 pin)

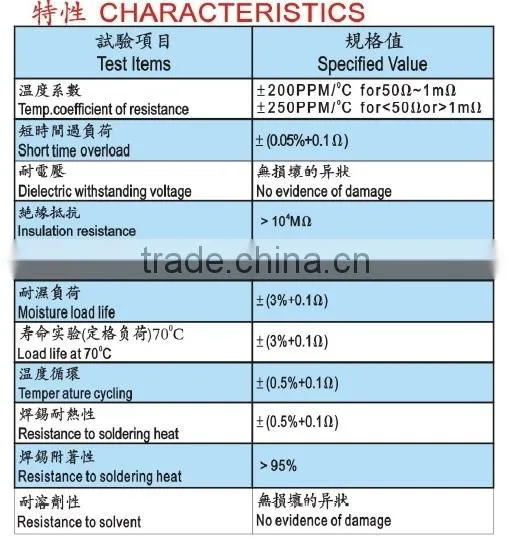

Characteristic

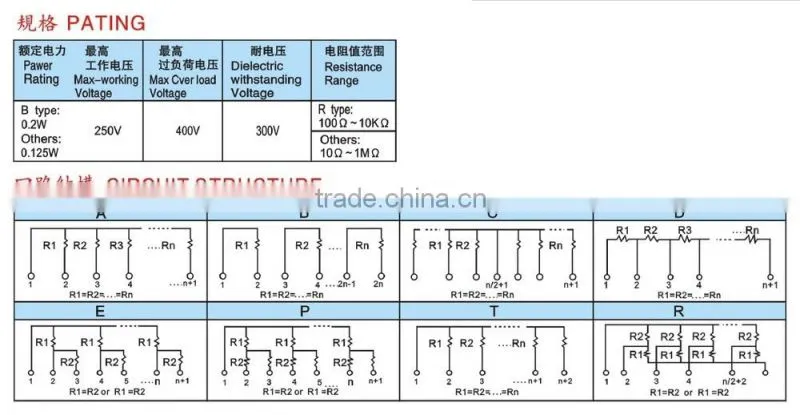

Circuit Structure

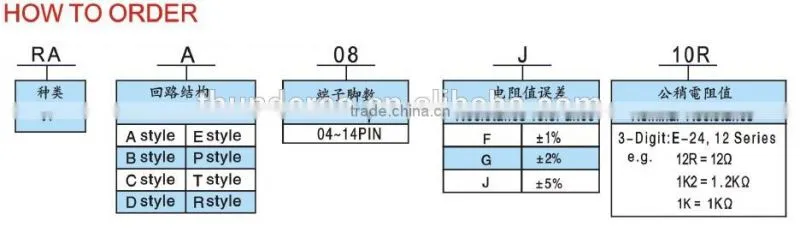

How to Order

Packaging & Shipping

Standard Packing : Plastic Pallet wrapped by water proof plastic film

Optional Packing : Strong Metal Pallet with wood cover to protect products withour damages during transportation.
