Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > TC2450 Current Sensing Thick Film Resistors for Automotive Engine Control
TC2450 Current Sensing Thick Film Resistors for Automotive Engine Control
US$ 0.01 - 1
MOQ: 15000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Thunder
Model Number:
RL
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TC2451 Current Sensing Thick Film Resistors for Disk DriverUS$ 0.006 - 1MOQ: 15000 Pieces -
TC2453 Electronic Components Ultra Low Ohm Metal Strip Shunt ResistorsUS$ 0.05 - 1MOQ: 15000 Pieces
-
TC2454 Passive Components Ultra Low Ohm Metal Strip Shunt ResistorsUS$ 0.05 - 1MOQ: 15000 Pieces
-
TC2455 Surface Mount Ultra Low Ohm Metal Strip SMD Shunt ResistorsUS$ 0.05 - 1MOQ: 15000 Pieces
-
TC2456 Ultra Low Ohm Metal Film SMD Shunt Resistors for Power BankUS$ 0.05 - 1MOQ: 15000 Pieces
Place of Origin
Taiwan, China
Brand Name
Thunder
Model Number
RL
Type
Fixed Resistor
Technology
Thick Film
Package Type
Surface Mount
Resistance
10M~976M ohm
Resistance Tolerance
1% 5%
Rated Power
1/16W~2W
Temperature Coefficient
±200~±1500 ppm
Operating Temperature
-55~155 DegreeC
Product Description

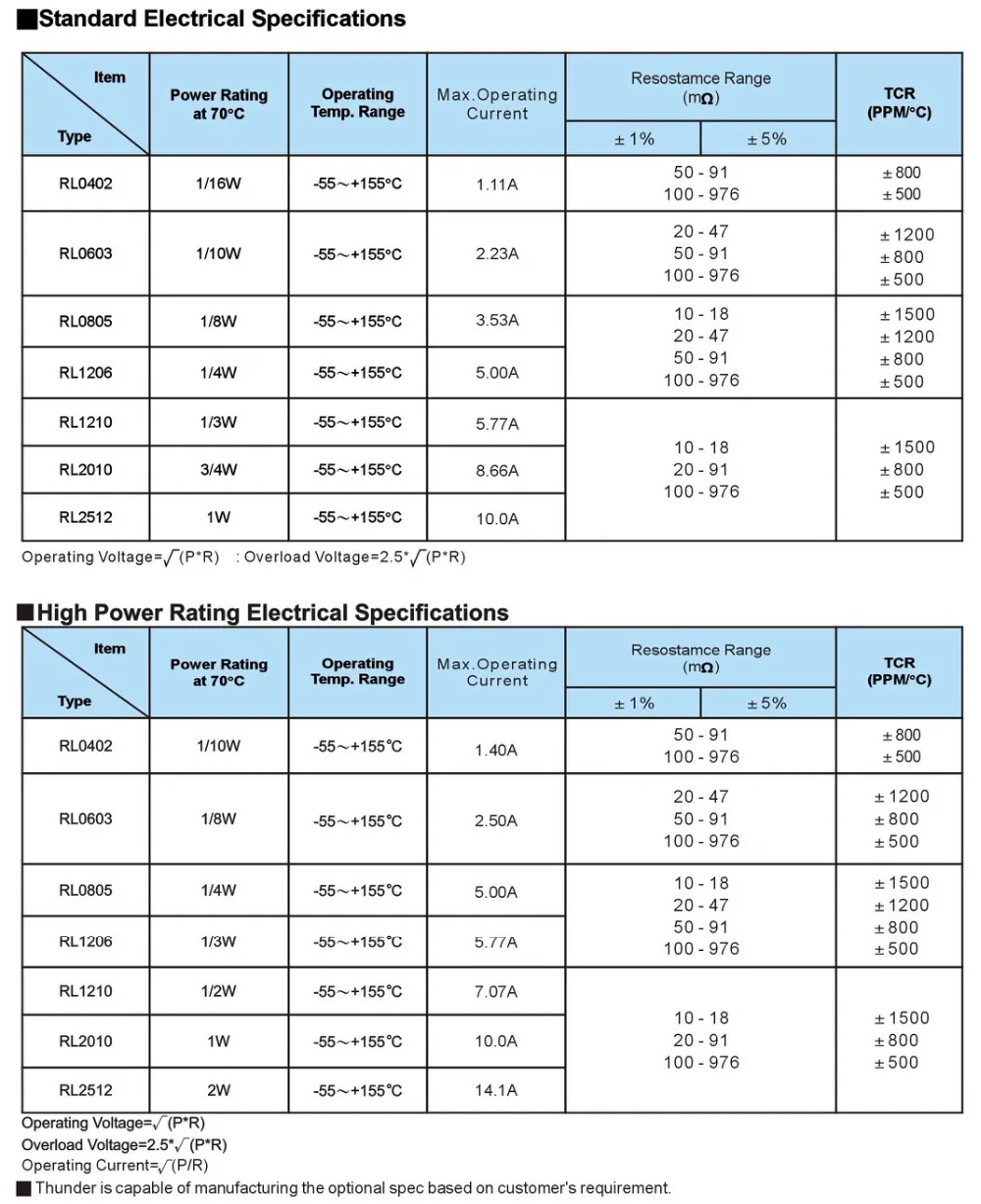

RL Current Sensing Thick Film Resistors SMD Chip Resistors 1/16W 1/10W 1/8W 1/4W 1/3W 3/4W 1W Resistance 10~976 ohm
Dimensions(mm)
You May Like
Throught Hole Carbon Film DIP Resistors
Passive Components Fusible Wire Wound Cement Resistors
Electronic Components Thick Film Chip Resistors SMD
Passive Components High Power Rating Thick Film Chip Resistors
Passive Components Current Sensing SMD Chip Resistors
Features
* Low Inductance
* Highly Reliable Multilayer Electrode Construction
* Higher Component abd Equipment Reliability
* Reduce Size of Final Equipment Reliability
* Highly Reliable Multilayer Electrode Construction
* Higher Component abd Equipment Reliability
* Reduce Size of Final Equipment Reliability
Applications
* Power Management Application
* Switching Power Supply
* Over Current Protection in Audio Application
* Voltage Regulation Module (VRM)
* DC-DC Converter, Battery Pack, Charger, Adaptor
* Automotive Engine Control
* Disk Driver
* Portable Devices (PDA, Cell Phone)
* Switching Power Supply
* Over Current Protection in Audio Application
* Voltage Regulation Module (VRM)
* DC-DC Converter, Battery Pack, Charger, Adaptor
* Automotive Engine Control
* Disk Driver
* Portable Devices (PDA, Cell Phone)
Packaging & Shipping
Standard Packing : Plastic Pallet wrapped by water proof plastic film
Pallet wrap water-proof plastic film protection packing. Avoid any damage during transportation.
Strong Metal Pallet wrap wood cover protection packing. Avoid any damage during transportation.
