RC 0201 - Thick Film SMD High Voltage Chip Resistors
Negotiable
MOQ: 15000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Thunder
Model Number:
RC
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TC2382 Electronic Components Passive Components Thick Film Chip Resistors SMDUS$ 0.0003 - 1MOQ: 15000 Pieces -
TC2383 Electronic Components Thick Film Chip Resistors SMDUS$ 0.0003 - 1MOQ: 15000 Pieces
-
TC2385 Electronics Surface Mount Fixed Resistor Thick Film SMD Chip ResistorsUS$ 0.01 - 1MOQ: 15000 Pieces
-
TC2386 Electronics Surface Mount Thick Film SMD Chip ResistorsUS$ 0.01 - 1MOQ: 15000 Pieces
-
TC2389 Electronics Resistor Series Power Thick Film SMD Chip ResistorsUS$ 0.01 - 1MOQ: 15000 Pieces
Place of Origin
Taiwan, China
Brand Name
Thunder
Model Number
RC
Type
Fixed Resistor
Technology
Thick Film
Package Type
Surface Mount
Resistance
1R~100M ohm
Resistance Tolerance
1% 5%
Rated Power
1/20W
Temperature Coefficient
100~200ppm
Operating Temperature
-55~155 DegreeC
Specifications

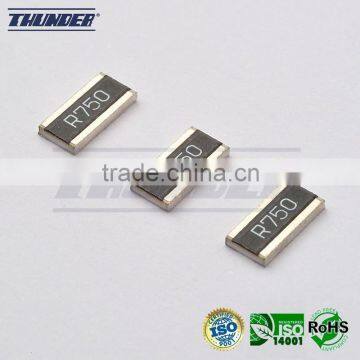

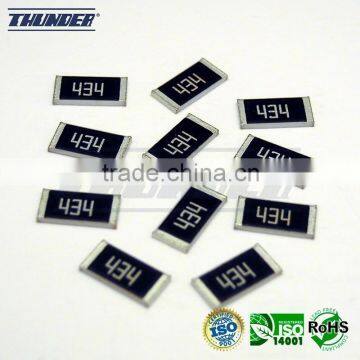

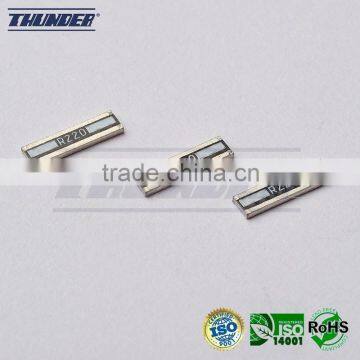

RC 0201 - Thick Film Chip Resistors- Extremely Thin/Light
- High Reliable Multilayer Electrode Construction
- High Stable
RC 0201 - Thick Film Chip Resistors

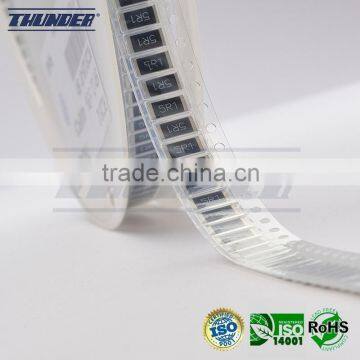

| Type : | Thick Film and Thin Film Chip Resistors | ||||
| Style : | 201 | 402 | 603 | 805 | 1206 |
| Power Rating : | 1/20W | 1/16W | 1/10W | 1/8W | 1/4W |
| Operating Temp. Range : | -55 ~ 155 | -25 ~ 125 | -55 ~ 155 | ||
| Max. Working Voltage : | 15V | 50V | 50V | 150V | 200V |
| Max. Overload Voltage : | 50V | 100V | 100V | 300V | 400V |
| Dielectric Withstand Voltage : | 50V | 100V | 100V | 300V | 500V |
| Style : | 1210 | 2010 | 2512 | 3616 | 4022 |
| Power Rating : | 1/3W | 3/4W | 1W | 2W | 3W |
| Operating Temp. Range : | -25 ~ 125 | -55 ~ 155 | |||
| Max. Working Voltage : | 200V | 200V | 200V | 200V | 200V |
| Max. Overload Voltage : | 400V | 400V | 400V | 400V | 400V |
| Dielectric Withstand Voltage : | 500V | 500V | 500V | 500V | 500V |
| Tolerance : | +- 0.1%, 0.5%, 1%, 5% | ||||
| Temperature Coefficient : | 25PPM 50PPM 100PPM | ||||
| Packing : | Tape/ Reel | ||||

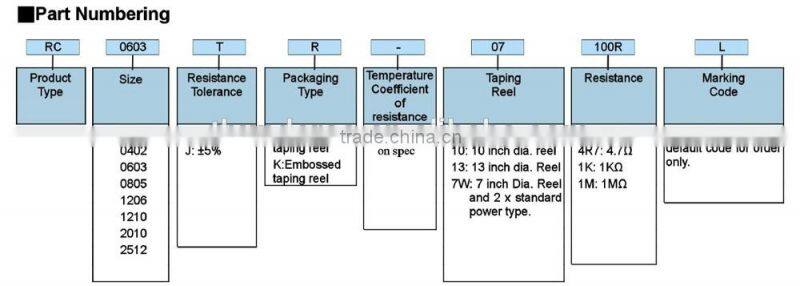

- Chip resistors:
- Thick film RC series
- Thin film RT/RJ series
- Lower value RL series

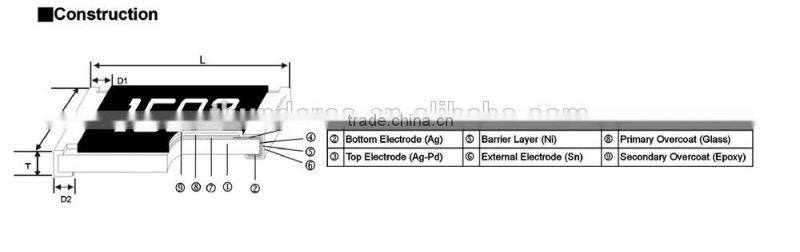

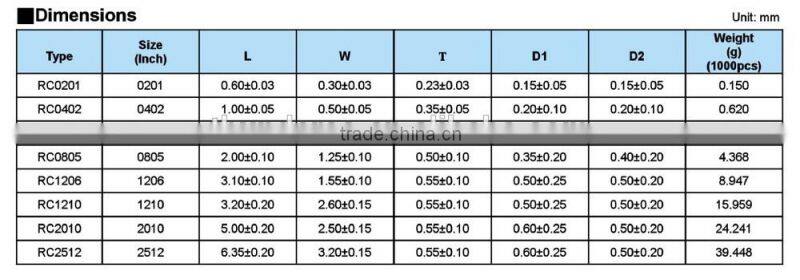

- Dimensions(mm)
- RC0201/RT0201/RJ0201: 0.60 +/- 0.10 (L) x 0.30 +/- 0.05 (W) x 0.25 +/- 0.05 (H) x 0.15 +/- 0.10 (I1) x 0.15 +/- 0.10 (I2)
- RC0402/RT0402/RJ0402: 1.00 +/- 0.10 (L) x 0.50 +/- 0.05 (W) x 0.35 +/- 0.05 (H) x 0.20 +/- 0.10 (I1) x 0.25 +/- 0.10 (I2)
- RC0603/RT0603/RJ0603: 1.60 +/- 0.10 (L) x 0.80 +/- 0.10 (W) x 0.45 +/- 0.10 (H) x 0.25 +/- 0.15 (I1) x 0.25 +/- 0.15 (I2)
- RC0805/RT0805/RJ0805: 2.00 +/- 0.10 (L) x 1.25 +/- 0.10 (W) x 0.50 +/- 0.10 (H) x 0.35 +/- 0.20 (I1) x 0.35 +/- 0.20 (I2)
- RC1206/RT1206/RJ1206: 3.10 +/- 0.10 (L) x 1.60 +/- 0.10 (W) x 0.55 +/- 0.10 (H) x 0.45 +/- 0.20 (I1) x 0.40 +/- 0.20 (I2)
- RC1210/RT1210/RJ1210: 3.10 +/- 0.10 (L) x 2.60 +/- 0.15 (W) x 0.55 +/- 0.10 (H) x 0.50 +/- 0.20 (I1) x 0.50 +/- 0.20 (I2)
- RC2010/RT2010/RJ2010: 5.00 +/- 0.10 (L) x 2.50 +/- 0.15 (W) x 0.55 +/- 0.10 (H) x 0.60 +/- 0.20 (I1) x 0.50 +/- 0.20 (I2)
- RC2512/RT2512/RJ2512: 6.35 +/- 0.10 (L) x 3.20 +/- 0.15 (W) x 0.55 +/- 0.10 (H) x 0.60 +/- 0.20 (I1) x 0.50 +/- 0.20 (I2)

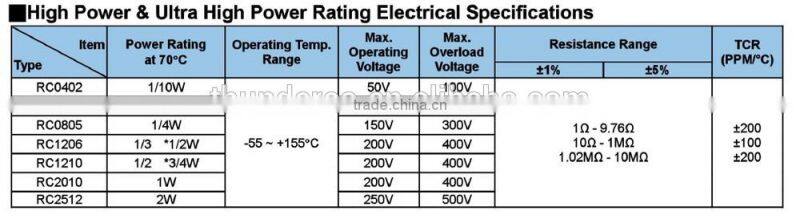

- Electrical properties
- RC0201:
Power rating at 70 degrees Celsius: 1/20W
Operating temperature: -55 to +155 degrees Celsius
Maximum working voltage: 15V
Maximum overload voltage: 50V
Dielectric withstand voltage: 50V
Resistance E24 tol. +/-2% , +/-5%: 10 to 1M ohms
Zero-ohm jumper: <0.05 ohms
TCR +/-200ppm/degrees Celsius: 10 ohms < R,> - RC0402:
Power rating at 70 degrees Celsius: 1/16W
Operating temperature: -55 to +155 degrees Celsius
Maximum working voltage: 50V
Maximum overload voltage: 100V
Dielectric withstand voltage: 100V
Resistance: E24 tol. +/-2%, +/-5%: 10 to 1M ohms
E96 tol. +/-0.5% , +/-1%: 2.2 to 4.7M ohms
TCR +/- 100ppm/degrees Celsius: 10 ohms =/ R,
TCR +/-200ppm/ - degrees Celsius: 10 ohm < R, ul ohm<>
- RC0603, RC0805, RC1206, RC1210, RC2010, RC2512 are available
- RC0201:
- Resistance tolerance:
- RT0201/RT0402/RT0603/RT0805/RT1206/RT1210/RT2010/RT2512: +/- 0.1% ; +/- 0.25% ; +/- 0.5% ; +/-1%
- (+/-0.01%; +/-0.05% on request)
- RJ0201/RJ0402/RJ0603/RJ0805/RJ1206/RJ1210/RJ2010/RJ2512: +/- 1%
- RL0603/RL0805/RL1206/RL1210/RL2010/RL2512: +/- 1% ; +/- 2% ; +/- 5%
