RH 0603 1% - Thick Film High Resistance Value Chip Resistors

RH 0603 1% - Thick Film High Resistance Value Chip Resistors thumbnail-1

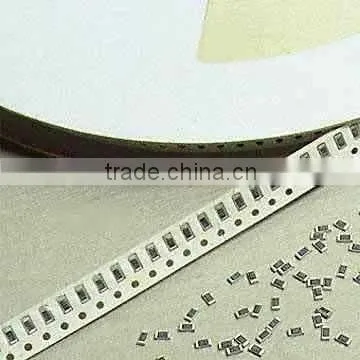

RH 0603 1% - Thick Film High Resistance Value Chip Resistors photo-1
Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Model Number:
RH
Type:
Fixed Resistor
Contact Supplier Request Quote Chat Now
Thunder Components Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Model Number RH
Type Fixed Resistor
Technology Thick Film
Package Type Surface Mount
Resistance 10M ~ 100M OHM
Resistance Tolerance 1% 5%
Rated Power 1/10W, 1/8W
Temperature Coefficient 200ppm
Operating Temperature -55 ~ 125 Degree C

Specifications

RH 0603 1%-Thick Film High Resistance Value Chip Resistors
- Extremely Thin/Light
- High Reliable Multilayer Construction

RH 0603 1%-Thick Film High Resistance Value Chip Resistors



Type : Thick Film and Thin Film Chip Resistors
Style : 201 402 603 805 1206
Power Rating : 1/20W 1/16W 1/10W 1/8W 1/4W
Operating Temp. Range : -55 ~ 155 -25 ~ 125 -55 ~ 155
Max. Working Voltage : 15V 50V 50V 150V 200V
Max. Overload Voltage : 50V 100V 100V 300V 400V
Dielectric Withstand Voltage : 50V 100V 100V 300V 500V

Style : 1210 2010 2512 3616 4022
Power Rating : 1/3W 3/4W 1W 2W 3W
Operating Temp. Range :   -25 ~ 125 -55 ~ 155
Max. Working Voltage : 200V 200V 200V 200V 200V
Max. Overload Voltage : 400V 400V 400V 400V 400V
Dielectric Withstand Voltage : 500V 500V 500V 500V 500V

Tolerance : +- 0.1%, 0.5%, 1%, 5%
Temperature Coefficient : 25PPM 50PPM 100PPM
Packing : Tape/ Reel
  • Chip resistors:
    • Thick film RC series
    • Thin film RT/RJ series
    • Lower value RL series
  • Dimensions(mm)
    • RC0201/RT0201/RJ0201: 0.60 +/- 0.10 (L) x 0.30 +/- 0.05 (W) x 0.25 +/- 0.05 (H) x 0.15 +/- 0.10 (I1) x 0.15 +/- 0.10 (I2)
    • RC0402/RT0402/RJ0402: 1.00 +/- 0.10 (L) x 0.50 +/- 0.05 (W) x 0.35 +/- 0.05 (H) x 0.20 +/- 0.10 (I1) x 0.25 +/- 0.10 (I2)
    • RC0603/RT0603/RJ0603: 1.60 +/- 0.10 (L) x 0.80 +/- 0.10 (W) x 0.45 +/- 0.10 (H) x 0.25 +/- 0.15 (I1) x 0.25 +/- 0.15 (I2)
    • RC0805/RT0805/RJ0805: 2.00 +/- 0.10 (L) x 1.25 +/- 0.10 (W) x 0.50 +/- 0.10 (H) x 0.35 +/- 0.20 (I1) x 0.35 +/- 0.20 (I2)
    • RC1206/RT1206/RJ1206: 3.10 +/- 0.10 (L) x 1.60 +/- 0.10 (W) x 0.55 +/- 0.10 (H) x 0.45 +/- 0.20 (I1) x 0.40 +/- 0.20 (I2)
    • RC1210/RT1210/RJ1210: 3.10 +/- 0.10 (L) x 2.60 +/- 0.15 (W) x 0.55 +/- 0.10 (H) x 0.50 +/- 0.20 (I1) x 0.50 +/- 0.20 (I2)
    • RC2010/RT2010/RJ2010: 5.00 +/- 0.10 (L) x 2.50 +/- 0.15 (W) x 0.55 +/- 0.10 (H) x 0.60 +/- 0.20 (I1) x 0.50 +/- 0.20 (I2)
    • RC2512/RT2512/RJ2512: 6.35 +/- 0.10 (L) x 3.20 +/- 0.15 (W) x 0.55 +/- 0.10 (H) x 0.60 +/- 0.20 (I1) x 0.50 +/- 0.20 (I2)
  • Electrical properties
    • RC0201:
      Power rating at 70 degrees Celsius: 1/20W
      Operating temperature: -55 to +155 degrees Celsius
      Maximum working voltage: 15V
      Maximum overload voltage: 50V
      Dielectric withstand voltage: 50V
      Resistance E24 tol. +/-2% , +/-5%: 10 to 1M ohms
      Zero-ohm jumper: <0.05 ohms
      TCR +/-200ppm/degrees Celsius: 10 ohms < R,>
    • RC0402:
      Power rating at 70 degrees Celsius: 1/16W
      Operating temperature: -55 to +155 degrees Celsius
      Maximum working voltage: 50V
      Maximum overload voltage: 100V
      Dielectric withstand voltage: 100V
      Resistance: E24 tol. +/-2%, +/-5%: 10 to 1M ohms
      E96 tol. +/-0.5% , +/-1%: 2.2 to 4.7M ohms
      TCR +/- 100ppm/degrees Celsius: 10 ohms =/ R,
      TCR +/-200ppm/
    • degrees Celsius: 10 ohm < R, ul ohm<>
    • RC0603, RC0805, RC1206, RC1210, RC2010, RC2512 are available
  • Resistance tolerance:
    • RT0201/RT0402/RT0603/RT0805/RT1206/RT1210/RT2010/RT2512: +/- 0.1% ; +/- 0.25% ; +/- 0.5% ; +/-1%
    • (+/-0.01%; +/-0.05% on request)
    • RJ0201/RJ0402/RJ0603/RJ0805/RJ1206/RJ1210/RJ2010/RJ2512: +/- 1%
    • RL0603/RL0805/RL1206/RL1210/RL2010/RL2512: +/- 1% ; +/- 2% ; +/- 5%
