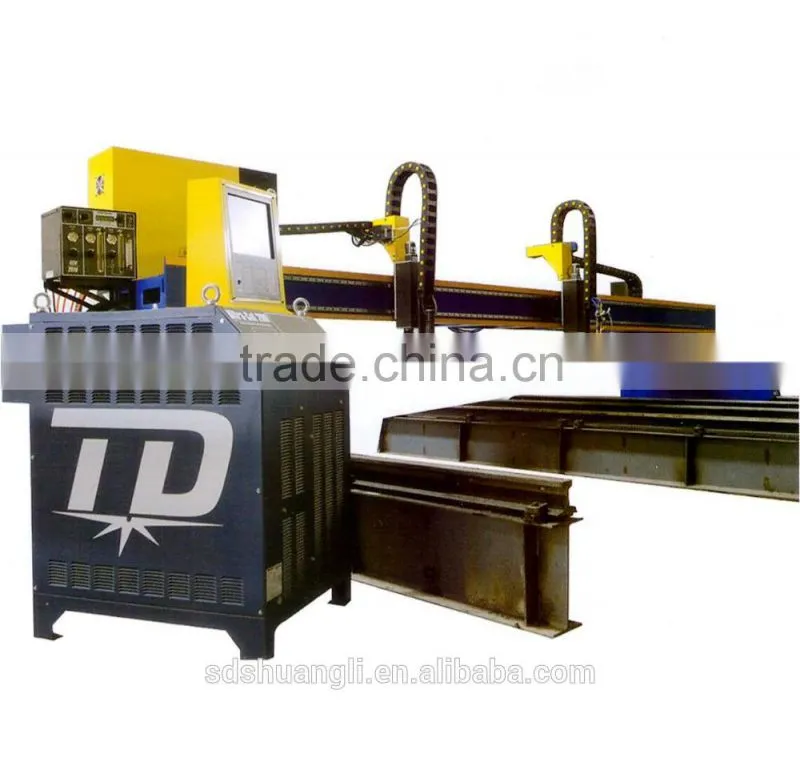

Gantry CNC Cutting MachineGantry 3000*8000mm stainless steel plate cnc plasma oxyfuel cutting machine
Specification (cnc plasma cutter):
| Model No. | SLP1212 |
| X, Y Working Size | 1200x1200mm |
| Machine Structure | Welded with thick-wall square steel tube |

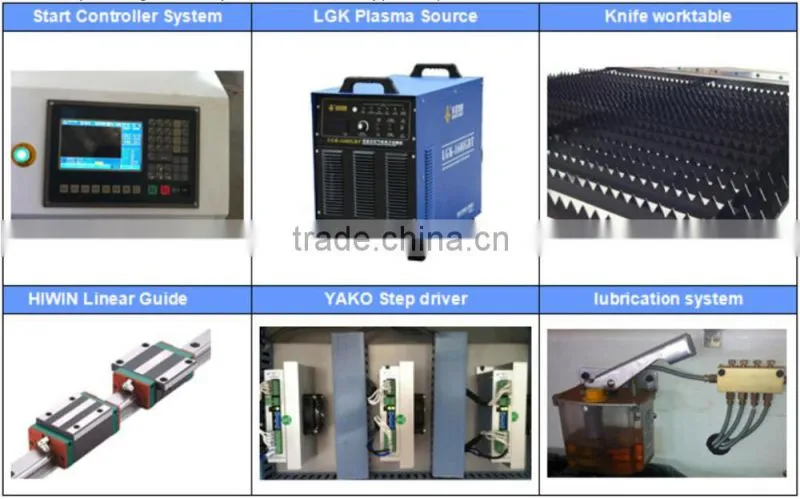

| X, Y, Z Guide Rail | Hiwin 20 square linear guide way made in Taiwan |
| X, Y, Z Transmission | X, Y axis gear rack and pinion, Z axis cylinder |
| X, Y, Z Driver | Fractionized stepper motor |
| CNC Control System | START control system with automatic capacitance-height controller and automatic arc-height adjuster |
| Interface | USB |
| Program System and Software Compatibility | Ucancam V9 (Type 3, Artcam, FastCAM, Mastercam etc) |
| Working Dictate | G-code |
| Cutting Thickness | Mild steel 3-32mm, stainless steel 6-25mm, aluminium 6-25mm |
| Cutting Speed | Details please refer to the technical file of Hyperthem PMX105 as appendix. |
| Plasma Generator | Hypertherm Powermax105 made in USA |
| Documents Transmission | USB |
| Working Mode | Untouched arc stricking |
| Power Supply | AC380V+/-10% or AC220V+/-10% |
Parameter of the steel plate cutting machine :
Model |
3000mm |
4000mm |
5000mm |
6000mm |
7000mm |
8000mm |
X axis effective working size |
2300mm |
3300mm |
4300mm |
5300mm |
6300mm |
7300mm |
Y axis effective working size |
It is do as customer request |
|||||
Drive model |
Bilateral rack and pinion drive |
|||||
Cutting thickness |
Flame cutting thickness :6-200mm(can also cut 300mm) |
|||||
Plasma cutting thickness depends on the plasma power | ||||||
Torch quantity |
Multi plasma/flame /Multiple sets of straight |
|||||
Moving speed |
20-10000mm/min |
|||||
Cutting speed |
10-6000mm/min |
|||||
Input power |
220V/380V |
|||||
-------Machine shelf is 8mm thick steel plate welded thicker than the other manufacturers to improve the structural strength of the machine, and enhance life.
-------The front beam bezel 20mm, after a one-time large gantry milling machine milling together, increasing the surface finish. Rail groove is disposable after a large milling machine milling together, increasing the beam rail straightness and parallelism, to ensure the positioning accuracy.
-------Adopt hollow beam design: increased structural strength, to remove the hard power, heat, and prevent the rack deformation.
-------Longitudinal Transmission: bilateral rack and pinion drive, no gap, soft fitPros: You can prevent excessive wear gear rack, and increased life expectancy
-------Lifting Body: The changeling wheel concentric rotation tight structure, not easy to damage other manufacturers use the slider is easily broken, but not easy to repair, delay the construction period.
-------Transmission sublanceMain gun driven by a traction rope sublance drive, using rope drive, flexible, not easy to break.
-------World’s top branded components and circuits ensure long service life.
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
