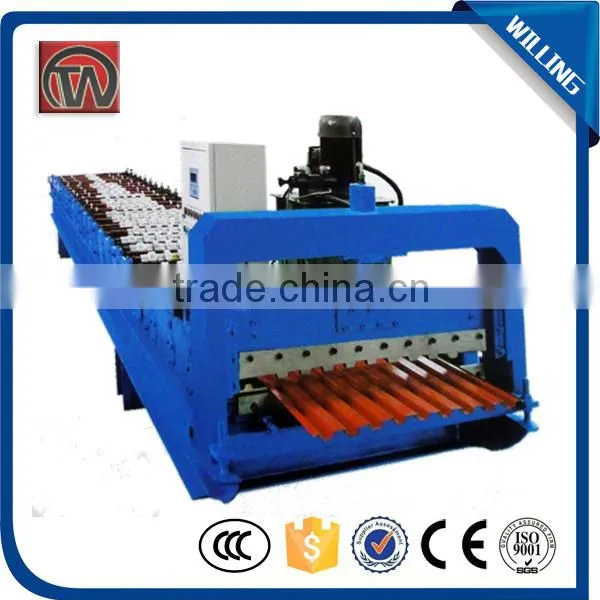

Help CenterAluminium Steel Door Frame and Window Making Machine
Related Products
-
Wall/Roof/Door Panel Roll Forming Machine With CEUS$ 9,000 - 10,000MOQ: 1 Set -
Australian Style Rolling Shutter Door Roll Forming MachineUS$ 9,000 - 10,000MOQ: 1 Set
-
Automatic Steel Colored Shutter MachineUS$ 12,000 - 23,000MOQ: 1 Set
-
Corrugated Iron Roofing Sheet pu Shutter Door Roll Forming MachineUS$ 12,000 - 23,000MOQ: 1 Set
-
Roof/wall Panel Shutter Slates Roll Forming MachineUS$ 12,000 - 23,000MOQ: 1 Set
No |
|
Technical Specification |
1 |
Manual Uncoiler |
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm |
2 |
Feeding Table |
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
3 |

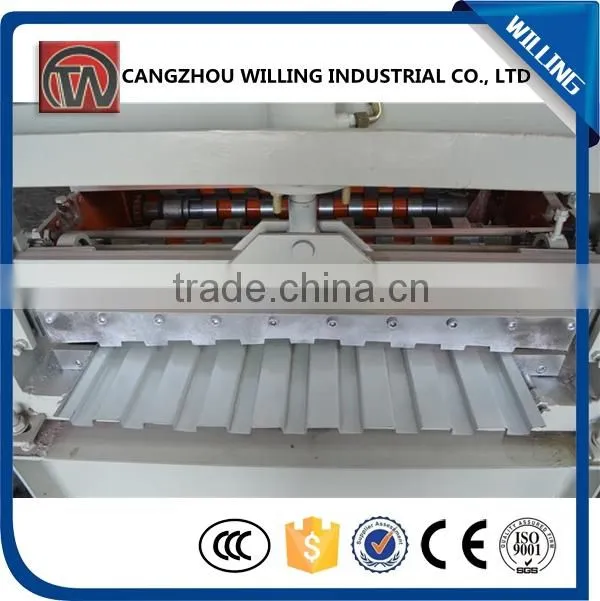

Main Roll Forming Machine |
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped |
4 |
Hydraulic System Computer Control Cabinet |
Power:5.5kw,Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |
5 |
Shearing Mechanism |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
6 |
Output Table
|
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. |
7.Guarantee:
A: Guaranteed against malfunctions due to manufacturing defects for 1.0 year after date of purchase. Space parts will be made free of charge,but freight cost should be paid by buyer.
B: Space parts will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
8.Commissioning:
1 technician for 7 working days from seller to buyer’s side for the instruction of installation and commissioning as well training. An English-Chinese interpreter will be send by seller in case of the buyer asks. All the expenses of them including local transportation, food, laundry and accommodation in buyer’s country and visa,international tickets will be on the buyer side. The hotel shall be equivalent or better than the level of a Chinese 3 star hotel. The buyer shall provide each person USD 100 per day as pocket money.
9.Payment terms
- 30% by TT in advance
- 70% is paid before the shipment by TT
10.Delivery time: 30 days after the down payment is received
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material information, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou airport: By air From Guangzhou to Beijing airport; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
