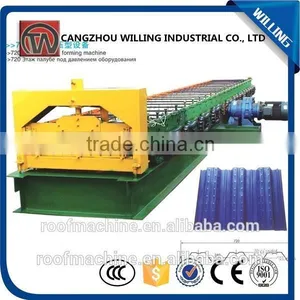

The metal deck formed by this machine has strong strength with high pitches.
It's best to be used as the floor of high buildings, and the cost of such floor is low.

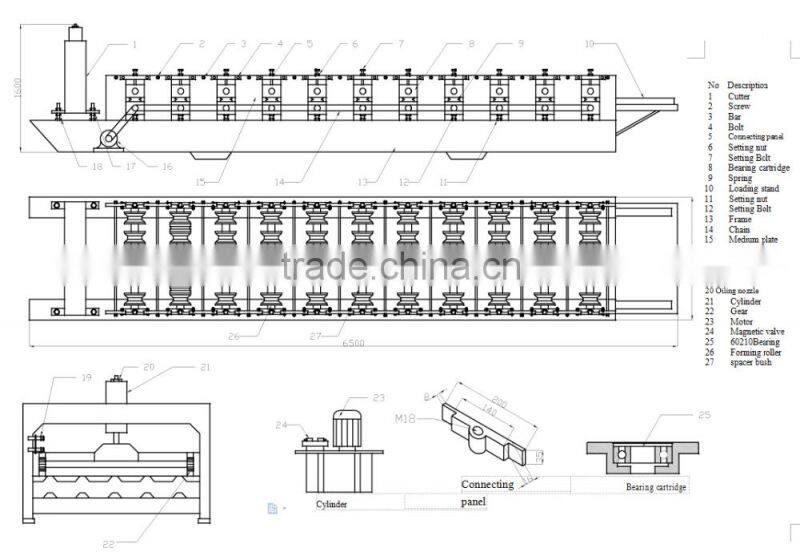

The whole line consists of un-coiler, feeding section, roll forming machine with
protect guard, Hydraulic pressing and post-cut device, PLC control system, etc.
Processes: Man-made uncoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table
Specifications:
No. |
Item |
Description |
1 |
Suitable material |
Color steel sheet ,galvanized steel sheet, Aluminium sheet |
2 |
Working speed |
8-15m/min |
3 |
Main motor power |
22kw with cycloidal reducer |
4 |
Hydraulic station power |
7.5kw |
5 |
Electrical control system |
PLC control system with famous brand |
6 |
Thickness of material |
0.8mm~1.2mm |
7 |
Shaft diameter |
90mm |
8 |
Roller station |
27 stations |
9 |
Material expand axis |
1000mm-1250mm |
10 |
Dimension |
1500x1500x1500mm |
11 |
Driving mode |
Chain |
12 |
Electric tension |
380V 3phase 50HZ or as the customer's requirements |
|
13
|
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
14 |
Material of cutting |
Cr12 mould steel with quenched treatment |
15 |
Working time |
Can be 24 hours |
16 |
Workers |
1-2 only |
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $100/days
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material information, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou airport: By air From Guangzhou to Beijing airport; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
