Help CenterHydraulic PLC Control Metal Roofing Sheet Curving Machine
Related Products
-
CE/ISO9001 Certification Roll Forming Machine for Crimping MachineUS$ 5,000 - 15,000MOQ: 1 Set -
Roof Ridge Tile Brake Hose Crimping Machine for SaleUS$ 4,000 - 10,000MOQ: 1 Set
-
Wholesale Profile Roll Forming Machine Pressure MachineUS$ 4,000 - 10,000MOQ: 1 Set
-
Superior Quality Colored Grazed Steel Roof Tile Hydtaulic Hose Crimping MachineUS$ 4,000 - 10,000MOQ: 1 Set
-
Metal Stud and Track Cable Manufacuring EquipmentUS$ 4,000 - 10,000MOQ: 1 Set
Specifications
1: Crimping Curve the Roof Panel
2: Min. Curving Radius:500mm
3: Forming Speed:2.0m/min
4: Punching Die:45 Steel chromplate

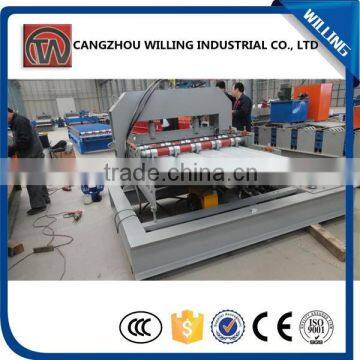

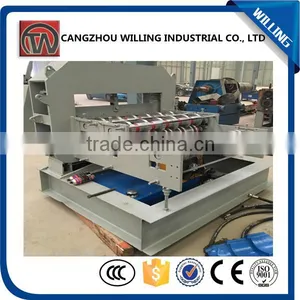

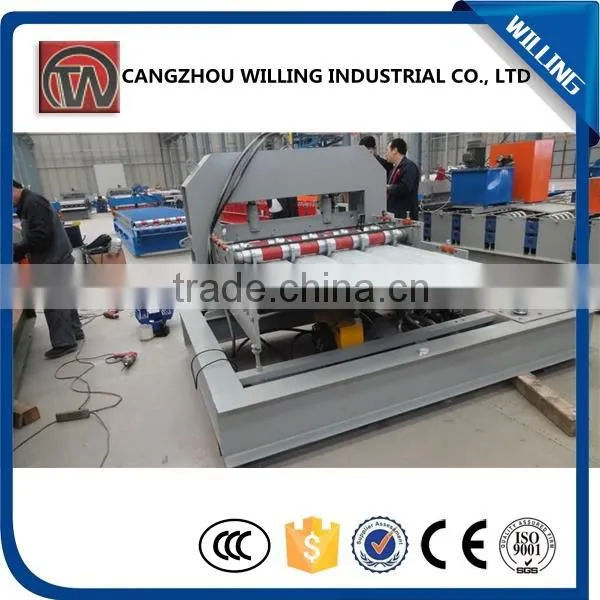

This machine consists of feeding device, curving&pressing device and electric control system. It adopts the formed pressing die to press the “pit” on the formed panels and make the panel curved. By changing the distance of the wave mark and adjusting the depth of “pit” can form into the panels with different radian. This machine adopts the PLC control to realize the automatic controlling of wave mark space and the free-set of wave mark space data.
Technical Parameters
No | Item | Parameter | Remark | |
1 | Suitable
Material | Type | Color coating steel |
|
Thickness(mm) | 0.4-0.7 | According to customer's requirement | ||
Yield Strength(Mpa) | 230-300 |
| ||
2 | Forming Speed(m/min) | 2.0 | Not including cutting time | |
3 | Material of Punching Die | 45chromeplate | with hard chromized | |
4 | Min. Curving Radius | 500mm |
| |
5 | Power source | Type | 380V/3PH/50HZ | According to customer's requirement |
7.Guarantee:
A: Guaranteed against malfunctions due to manufacturing defects for 1.0 year after date of purchase. Space parts will be made free of charge,but freight cost should be paid by buyer.
B: Space parts will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
8.Commissioning:
1 technician for 7 working days from seller to buyer’s side for the instruction of installation and commissioning as well training. An English-Chinese interpreter will be send by seller in case of the buyer asks. All the expenses of them including local transportation, food, laundry and accommodation in buyer’s country and visa,international tickets will be on the buyer side. The hotel shall be equivalent or better than the level of a Chinese 3 star hotel. The buyer shall provide each person USD 100 per day as pocket money.
9.Payment terms
- 30% by TT in advance
- 70% is paid before the shipment by TT
10.Delivery time: 30 days after the down payment is received
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material information, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou airport: By air From Guangzhou to Beijing airport; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
