Specifications
1)400X Hand-held Fiber Microscope2)Power Source: 3 X AAA batteries
3)Light Source: white LED, rated for 100,000 hours
400X Hand-held Fiber Microscope FMC CL-400
Detailed Product Description:
The Fiber Microscopes are used for inspecting fiber terminations in the field. With their good optical performance and integrated laser safety filters, they provide the most critical view of fiber end faces. This renders scratches highly visible and is the clear choice for field termination in sensitive installations.
Specification:

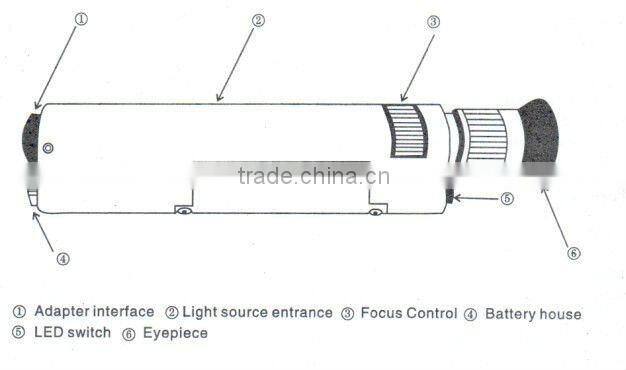

Model list: FMC CL-400
Power Source: 3 X AAA batteries
Light Source: white LED, rated for 100,000 hours
Weight: 0.69 Kg
Size: 225mmL X 32mm diameter, 8.76” x 1.25” diameter
Controls: Fine Focus control wheel
Switch: 1.Momentary on/off switch for light source.
2. Two minutes delayed on/off switch
Safety Filter: Built in IR filter
Adapter Interface: interchangeable universal slip grip tips, or dedicated connector type.
Color: Black. Or Sliver
OL-Series Hand Held Fiber Microscope
This lightening method provides a clear view of core condition and cleanliness. The light from the white LED hits the end-face at an angle, making the core clearly visible and allowing the user to readily see any surface debris or contamination. The amount of scratches seen on the ferrule is limited, allowing technicians to polish to a low loss level without wasting time over-polishing
200x Image with Oblique Illumination
CL-Series Hand Held Fiber Microscope
Light is introduced into the optical path (axis) so that it comes out the tip of the objective and strikes the sample perpendicular to the fiber end-face. It produces excellent detail of scratches and contamination. For critical examination of polish quality, we strongly recommend the CL-Series Hand Held fiber Microscope.
200x Image with Coaxial Illumination
How to choose between the OL-Series and the CL-Series?
Both series of our Hand Held Fiber Microscope (OL-Series and CL-Series) provide excellent views of the ferrule end face. We recommend 400x magnification for single-mode and 200x magnification for multi-mode:
(1)If you frequently terminate fiber and have received professional training, you are probably best served by our CL-Series microscope.
(2)If you only occasionally terminate fiber, and are unsure, you might consider the OL-Series.
Our Advantages:
1.Professional enginer to ensure the quality;
2.Factory and manufacturer to ensure the price;
3.Product line to ensure the lead time;
4.What are you waiting for?Just RUSH YOUR ORDER!

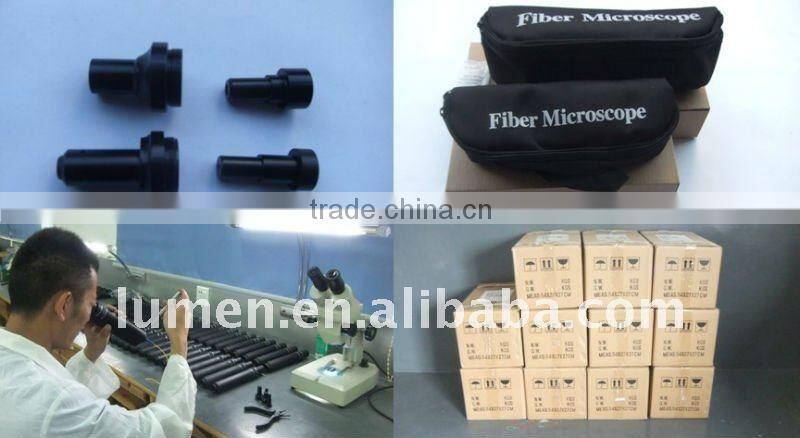

Factory:
Product:
Product Line:
What are you waiting for?Just RUSH YOUR ORDER!
