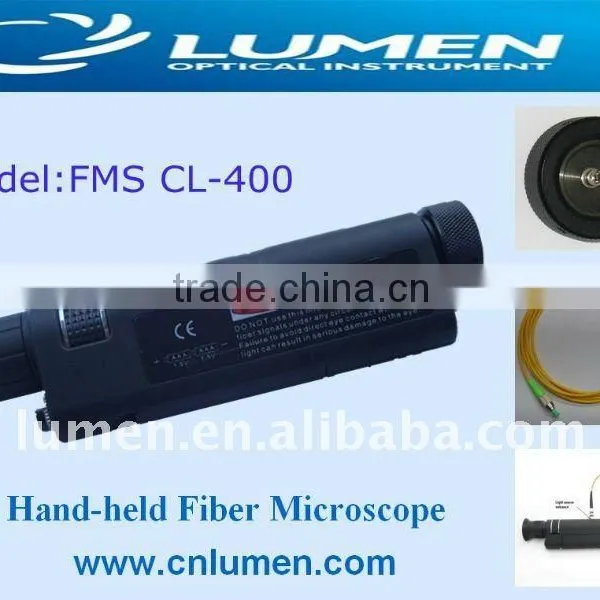

FMS CL-400 Hand-held Mini Fiber Microscope
- 50000 Piece / Pieces per Month
- FUZHOU
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Fujian, China | Brand Name: | Lumen | Model Number: | FMSCL-400 |
Product Description
Specifications
1) Power Source: 2X AAA batteries2) Light Source: white LED, rated for 100,000 hours
3) Weight: 0.35 Kg
Detailed Product Description:
The Fiber Microscopes are used for inspecting fiber terminations in the field. With their good optical performance and integrated laser safety filters, they provide the most critical view of fiber end faces. This renders scratches highly visible and is the clear choice for field termination in sensitive installations.
Specification:
Model list: FMS CL-400
Power Source: 2XAAA batteries
Light Source: White LED, rated for 100,000 hours
Weight: 0.35 Kg
Size: 190mm/7.48”L X 45mm/1.77”D

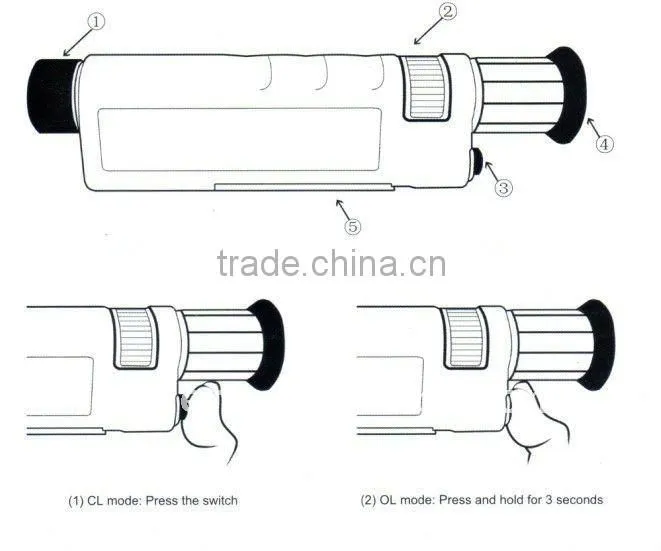

Controls: Momentary on/off switch for light source, Fine Focus control wheel
Switch: 1. Automatic on/off switch for light source
2. Two minutes delayed on/off switch
Safety Filter: Built in IR filter
Adapter Interface: user interchangeable adapters.
Color: Black.
OL-Series Hand Held Fiber Microscope
This lightening method provides a clear view of core condition and cleanliness. The light from the white LED hits the end-face at an angle, making the core clearly visible and allowing the user to readily see any surface debris or contamination. The amount of scratches seen on the ferrule is limited, allowing technicians to polish to a low loss level without wasting time over-polishing.
200x Image with Oblique Illumination
CL-Series Hand Held Fiber Microscope
Light is introduced into the optical path (axis) so that it comes out the tip of the objective and strikes the sample perpendicular to the fiber end-face. It produces excellent detail of scratches and contamination. For critical examination of polish quality, we strongly recommend the CL-Series Hand Held fiber Microscope.
200x Image with Coaxial Illumination
How to choose between the OL-Series and the CL-Series?
Both series of our Hand Held Fiber Microscope (OL-Series and CL-Series) provide excellent views of the ferrule end face. We recommend 400x magnification for single-mode and 200x magnification for multi-mode:
(1)If you frequently terminate fiber and have received professional training, you are probably best served by our CL-Series microscope.
(2)If you only occasionally terminate fiber, and are unsure, you might consider the OL-Series.
Our Advantages:
1.Professional enginer to ensure the quality;
2.Factory and manufacturer to ensure the price;
3.Product line to ensure the lead time;
4.What are you waiting for?Just RUSH YOUR ORDER!
