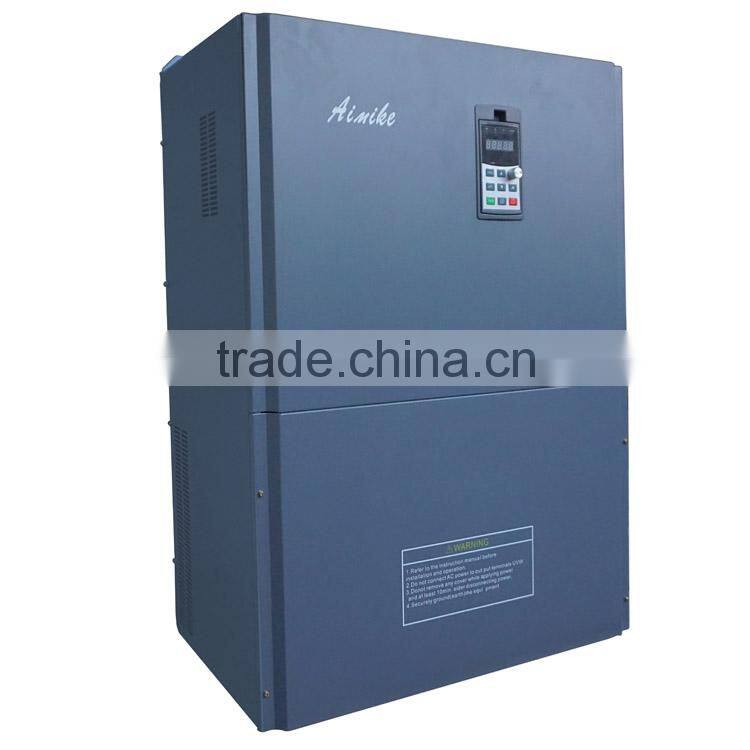

110KW 160KW Power Inverter China

Name: 110KW 160KW Power Inverter China
Brand: Aimike
Availability: InStock

FOB Price

US$ 4,212 - 4,530 / Piece

1 Piece(Min. Order)

Port ShenZhen China
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Aimike
Model Number	AMK3800-4T1850G/2000P	Output Power	Other, 185kw
Output Type	Triple	Size	530916347 MM (WHD)
Weight	98KG	Input Voltage	380V
Output Voltage	0-380V	Type	DC/AC Inverters
Output Frequency	0-3000HZ	Output Current	360A

Product Description

185KW 3phase 380V ac frequency converter&inverter

AMK3800 series inverter is the 2nd generation of high performance current vector inverter researched and developed independently by our company. It has adopted fully new design concept and modular design idea. Compare with traditional inverters, no matter on performance, functions, reliability, maintainability and workability or other aspects, it has been improved essentially.

Specifications frequency converter allied electronics

1.low unloading current

2.perfect protections

3.Patents/CE/ROHS

4.High effiency and Good price

Aimike inverter performance characteristics

Aimike inverter can automatic energy-saving operation; Aimike inverter can increase the rate of power saving utmost.

Aimike inverter can maximum limit keep voltage stability.

Aimike inverter can be tested to automatic over-current and over-voltage protection; Aimike inverter can protect customers utmost equipment and frequency converter.

Aimike inverter can automatically detect the load function.

Aimike frequency converter has the advanced current closed-loop vector control algorithm; Aimike load response of the inverter can be quickly, to get the best output performance.

Aimike frequency converter has the unique adaptive control technology, and unique pulse width modulation technology; Aimike inverter can make optimal control performance.

use the SVPWM optimized modulation technology to improve product stability and longevity.

Aimike inverter adopts flexible control method, such as RS - 485 control, PI regulation, multistage speed, process control, etc.

Working Principle of 3phase ac frequency converter&inverter

Aimike inverter generally consists of rectifier, filter, inverter driving circuit, protection circuit and a controller (MCU/DSP) and other parts. Firstly, when the current of single-phase or three-phase AC power through a rectifier and capacitor filter, it will form fixed amplitude DC voltage and put on the inverter, the output terminal of the inverter will obtain a pulse wave with certain shape, after uses the on-off control of inverter power element. By changing the width of rectangular pulse and inverter’s output frequency to control the amplitude of voltage and output frequency respectively so the the inverter can control output voltage and frequency at the same time that to meet the requirements of U/f Coordinated control. The advantage of PWM is to eliminate or suppress low order harmonic wave, and make the motor run at the voltage with approximate sine wave.

Item		Item Description
Input	Rated voltage, Frequency	Single phase 220V 50/60Hz Three phase380V 50/60Hz
Input	Permitted Working Voltage Range	Waveform Range: ≤±20%; voltage unbalance rate:
Output	Rated voltage	0-380V
	Frequency	0-3000Hz
	Overload Capacity	G Type: 150% rated current for 1 minute; 180% rated current for 1 second; 200% rated current instantaneous protection P Type: 120% rated current for 1 minute; 150% rated current for 1 second; 180% rated current instantaneous protection
Main Control Performance	Control Method	0: Common V/F control 1: Advance V/F Control 2: Open loop current vector control 3: Close loop vector control 4: Separated type V/F control
	Modulation Method	Space Vector Modulation
	Speed Adjustment Range	1:50
	Start-up Torque	At 0.5Hz, 150% rated torque (vector V/F control)
	Frequency Accuracy	Figure Setting: Max frequency X ± 0.01%; Analog setting: Max frequency X ± 0.2%;
	Frequency Resolution	Figure Setting: 0.01; Analog setting: Max frequency X ± 0.05;
Continued	Torque Boost	Automatic Torque Boost, Manual Torque Boost 0.1-30.0%
	V/F Curve	0: Linear curve 1: Reducing torque curve 1 (1.3 power) 2: Reducing torque curve 1 (1.5 power) 3: Reducing torque curve 1 (1.7 power) 4: square curve 5: user setting V/F curve
	Acceleration and deceleration curve	Three methods: linear acceleration and deceleration, S curve acceleration and deceleration, min acceleration and deceleration; 4 kinds of acceleration and deceleration time, optional time unit (min/s)
	DC braking	Shutdown DC braking start frequency: 0.00Hz-max output frequency; braking time: 0.0-50.0s; braking current: 0.0%-150.0% rated current
	Automatic Voltage Regulation (AVR )	When the grid voltage is changed, it can maintain constant output voltage automatically.
	Automatic current limiting	It takes automatic current limiting in operation to prevent frequent over-current fault stripping.
	Automatic Carrier Regulation	Regulate the carrier frequency automatically according to the load features and temperature features.
Customized function	Weaving swing frequency	Weaving swing frequency control can achieve fixed swing frequency and varied swing frequency functions.
	Frequency combination function	Running command channels and frequency setting channels can be combined randomly.
	Fixed length function	Length to shutdown function, max length of 65.535 KM
	Jogging	Jogging frequency range: 0,00Hz- max output frequency; jogging acceleration and deceleration time 0.1-3600.0s, which is settable; jogging interval is 0.1-3600.0s, which is settable;
	Multi-velocity operation	It can achieve multi-velocity operation through built-in PLC or control terminals.
	Built-in Process closed-loop control	It is convenient to form closed-loop control system.
Running Function	Run command channel	Operation panel, control terminal, serial port, which can be switched via multiple kinds of methods
	Frequency setting channel	Figure setting, analog voltage setting, analog current setting, pulse setting, serial port setting, terminal setting, multi-velocity setting, which can be switched via multiple kinds of methods
	Auxiliary frequency setting	It can achieve flexible auxiliary frequency trimming and frequency combination calculation.
	Pulse output terminal	0-50Hz pulse square wave signal output can achieve output of setting frequency, output frequency and other physical values.
	Analog output terminal	2 paths of analog signal output, optional 0/4-20mA or 0/2-10V respectively. It can achieve output of setting frequency, output frequency and other physical values.
Operation Panel	LED display	It can display 61 kinds of parameters, such as setting frequency, output frequency, output voltage, output current and so on.
	LCD display	Option, Chinese/English prompt operation content
	Parameter copy	Option. Use operation panel to achieve rapid uploading and downloading of parameters.
	Key function selection	Define the effect range of partial keys to prevent misoperation.
Protection Function		Losing phase protection (option), over-current protection, overvoltage protection, under-voltage protection, overheat protection, overload protection, and off load protection etc.
Environment	Using place	Indoor, no direct sunshine shining, without dust, corrosive gas, flammable gas, oil mist, steam, water drip or salinity etc.
	Altitude	Derating using for more than 1000m, derate 10% for every 1000m rising
	Environment temperature	-10°C-+40°C (When ambient temperature is 40°C-50°C, please take derating using.)
	Humidity	5%-95% RH, without condensing
	Vibration	Less than 5.9m/s2 (0.6g)
	Storage temperature	-40°C-+70°C
Structure	Protection class	IP20
Structure	Cooling method	forced air cooling, with fan control

Specification of 185kw 3phase ac frequency converter&inverter

Place of Origin	Guangdong,China(Mainland)
Brand Name	Aimike
Model Number	Amk3800-4T1850G
Output Power	185Kw
Output Type	Triple
Size	530347916MM(WDH)
Weight	68.5KGS
Input Volage	380V
Output voltage	0-380V
color	black
Shell	metal
Modules	integrated ICBT (Infineon & Fuji)
Material	all components from international famous brand
Adaptation motor power	0.75kw -- 630kw
Delivery time	3day -- deliver faster

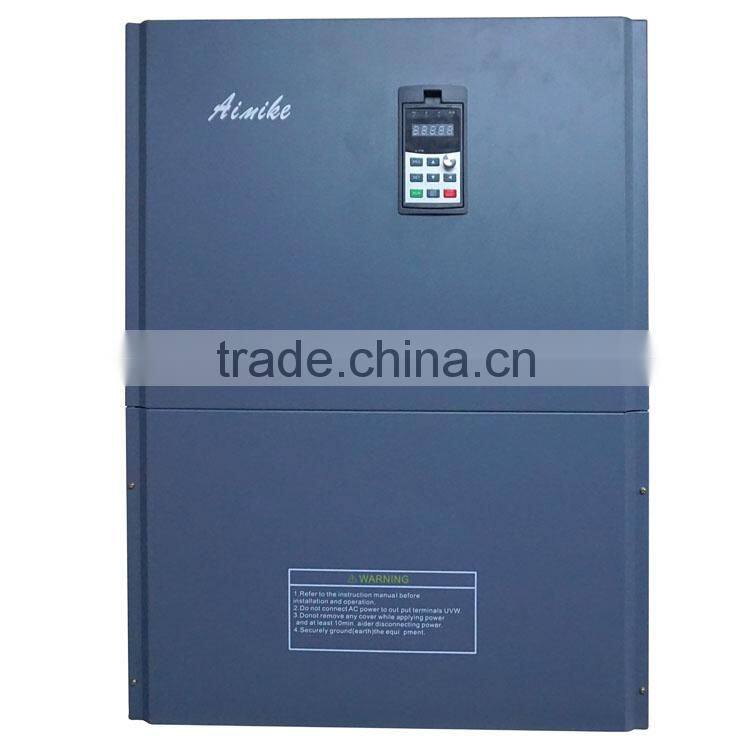

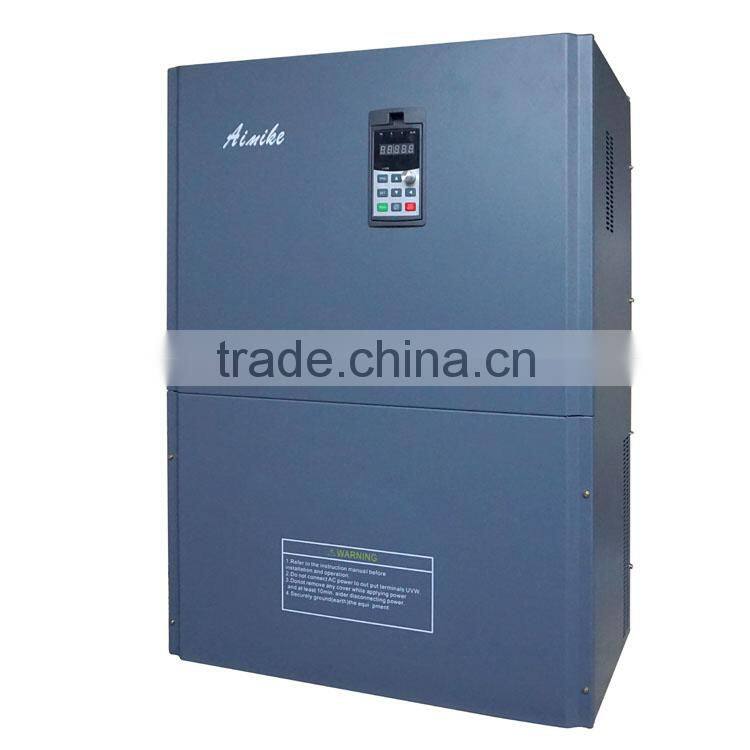

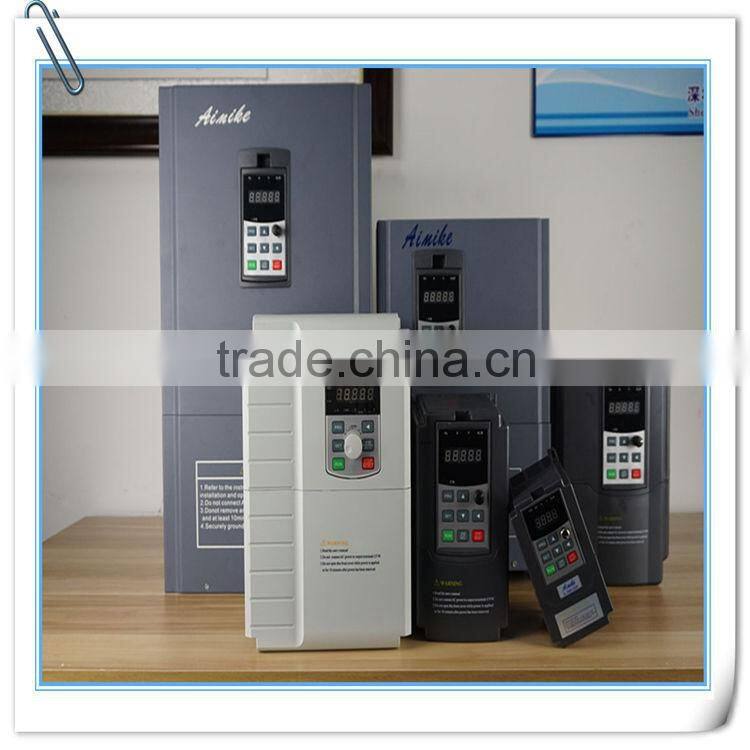

Picture of 3phase ac frequency converter&inverter

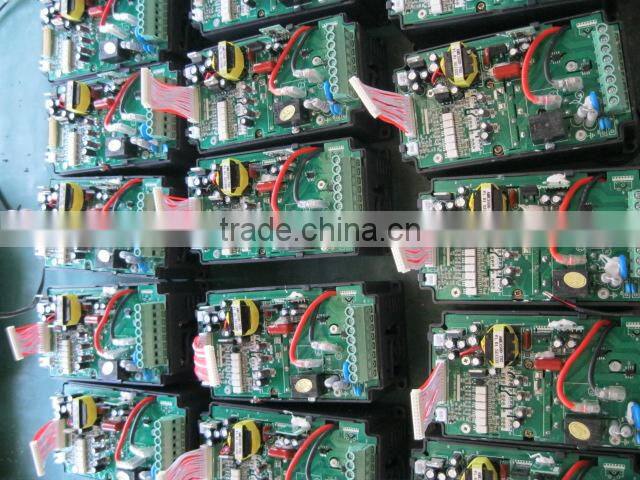

Production Line

Testing

Application

Food machine	Improve efficiency and reduce cost Frequency inverter with wide range speed brings strong anti-over-load ability.
Packing machine	High stable accuracy and dynamic response performance low noise and rich functions.
Textile machine	Smooth start, big torque at low speed Good ACC and DEC performance Widely applied to textile machines, such as sizing machine, spreading machine, sensitization machine, weft straightener, drawing-in machine, roving machine and so on.
Automatic production line	Convenient for central control with strong communication function Strong anti-current-impact ability.

Options of ac frequency converter&inverter

LKD Remote Keyboard Carrier

LKD Keyboard

Braking Resistor

Reactor

Network cable

Lead Time

1.Sample order will be delivered from our factory within 1-7 working days.

2.General orders will be delivered from our factory within 7-10 working days.

3.Big orders will delivered from our factory within 30 working days at most.

Warranty

1 year warranty from the date of delivery and responsible lifetime. If the product is exceed warranty or damaged by transportation, improper operation, human element, force majeure,it is not under warranty.

Please Notes

1.Power: 0.75KW-630KW

2.Standard export package, suitable for long distance transportation.

3.Product attached one AMK operation Panel.

4.Network cable, bland filler panel or other options would be chose and charged.

5.The above price does not make include tax,tax needs an extra charge of 17 %.

6.The charges of packing are bore by buyers.

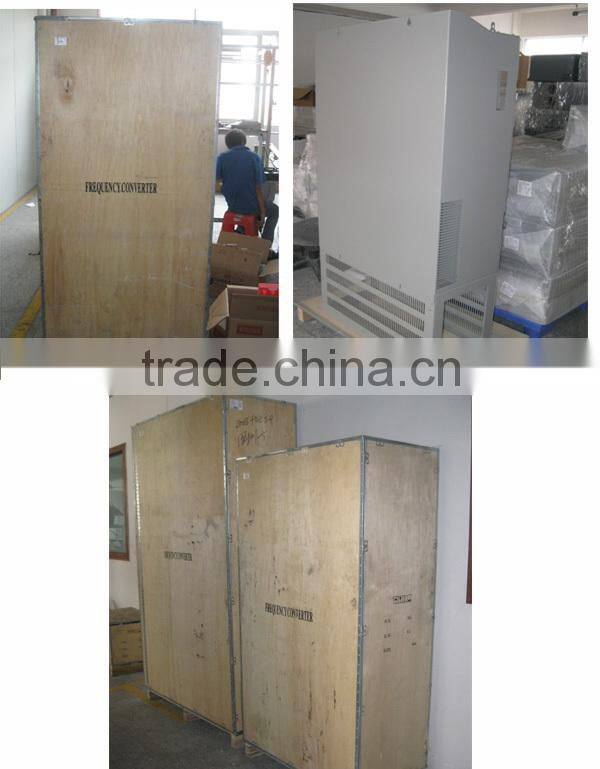

Packaging & Shipping

Packaging Detail: We use different kind of cartons for different products from Carton/honeycomb carton and wood-plate boxes.

Shipment : By air or by sea or by your own forwarding agent.

Our Services

The good construction warranty-1 years and responsible lifetime

Any questions from you are welcome and will be replied in 24 hours

Our professional service before and after sale

The free inverter samples after your first 3 orders.
