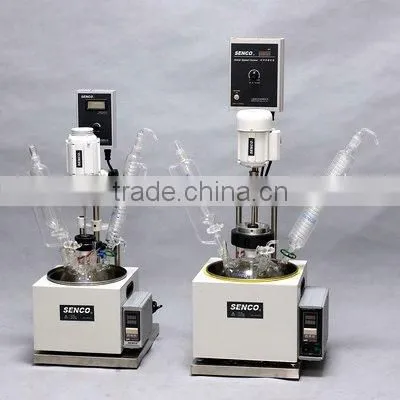

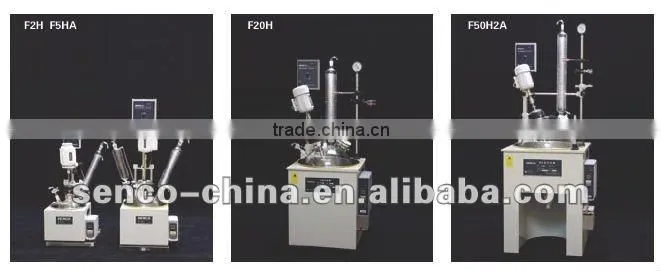

1-5L SENCO Multifunctional Reactor-- Bath Temp: RM~180C
- 10 Unit / Units per Month
- Shanghai
You May Like
-
Up Discharge Pilot Multifunctional Reactor-SENCO
-
20L Multifunctional Reactor-SENCO China made -optional function
-
50L Multifunctional Reactor - Single Glass Reactor Incline Stereo Stir Heating Sys inbuild SENCO
-
F20H2A Single-layer Glass Reactor-SENCO
-
50L Multifunctional Reactor F50H2A SENCO China made,
-
F20H2B MultiFunctional Glass Reactor
Product Details
Place of Origin | Shanghai, China | Brand Name | SENCO | |
Model Number | FH Series (1-5L) |
Product Description
Specifications
5L below MultiFunctional Reactor- Bath Temp: RM~180C
- Distillation function optional
- Easy Assembly, Opr, and Maintenance

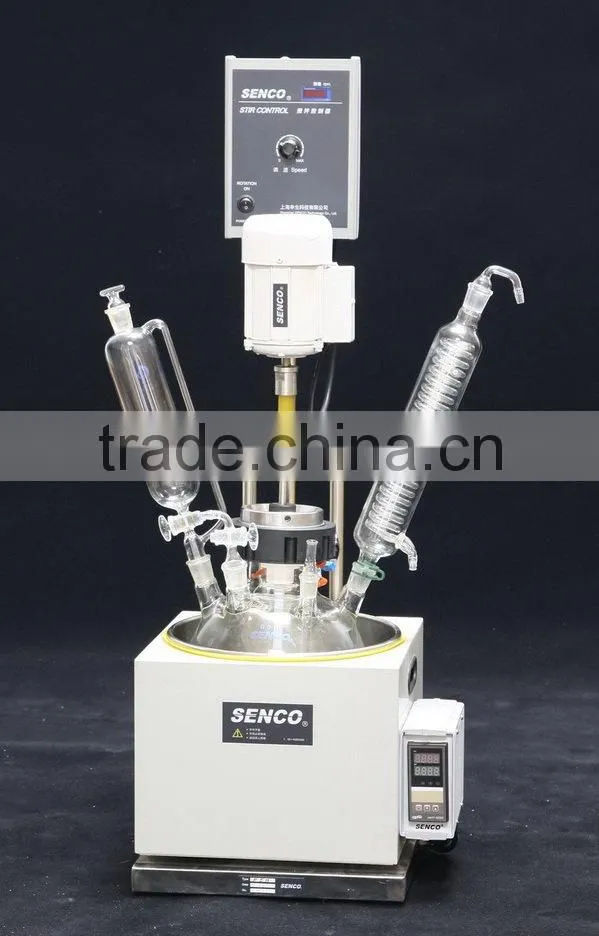

1-5L SENCO Multifunctional Reactor
----------------------------------------------------------------------------------------------------------------------------------------------------
1-5L Reaction flask, with180C intelligent temperature control bath;
Vacuum Rate: <399pa
Operation Temperature: RT~180C
Function included:
- Standard : Stirring, Reflux Condensing, Charging, Temp. Measuring, (Dripping)
- Optional : Distillation-Receiving
- F5HA equipped with Frequency Conversion Stir and can be modified to high speed stir or viscosity stir at request.
The apparatus has very good sealing performance, is easy to be assembled, disassembled and maintained. Few wearing parts need to be replaced. Very suitable for reaction experiment of small to mid amount reactant.
Standard Model | F2H | F2HA | F5HA | ||
Parameters | 1 | Reaction Flask (L) | 2L | 2L | 5L |
2 | Neck No. of Reaction Flask | 4 | 5 | 5 | |
3 | Rotation Speed (rpm) | 60-1300 | 60-1300 | 40-720 | |
4 | Toque (Ncm) | 33 | 33 | 80 | |
5 | Bath Power (kW) | 1.5kW | 1.5kW | 2kW | |
6 | Static Temp. Control Range & Wave (°C) | 0-180 ±0.2 | 0-180 ±0.2 | 0-180 ±0.2 | |
7 | Bath Size, Capacity, Material | Ø24x15, 5L, SUS304 | Ø28x20, 11L, SUS304 | ||
8 | Power | 220V, 7A | 220V, 7A | 220V, 16A | |
9 | Dimensions (cm) | 36x30x90H | 36x30x90H | 39x33x100H | |
Configurations | 10 | Frequency Conversion Speed Control | / | / | - Y - |
11 | Digital Display | Bath Temp., Rotation Speed | |||
12 | PTFE Seal Assembly | - Y - | - Y - | - Y - | |
13 | Charging Valve | - Y - | - Y - | - Y - | |
14 | Temp. Measure Neck | - Y - | - Y - | - Y - | |
15 | Vacuum Meter * | / | / | - O - | |
16 | Bath Drain | - Y - | - Y - | - Y - | |
17 | Reflux Condensing | - Y - | - Y - | - Y - | |
18 | Distillation Receiving * | - O - | - O - | - O - | |
19 | Drip Set (0.1~1L) | / | 0.25L | 0.25L | |
20 | Low Speed Power Stir * | / | / | - O - | |
Safety Features | 21 | Over-current Protection | - Y - | - Y - | - Y - |
22 . | No-spark Electronic Control | / | / | - Y - | |
Symbol Instruction: - Y - (Equipped), - O - (Optional), - / - (N/A) ( * - Only available when ordering of product, not for separate sale)
|
SENCO is a reputed top brand among Chinese Suppliers for Rotary Evaporators and Reactors. She is professional in D&E, Manufacturing and Oversea Customer Support.
It is a technology oriented company with professor and engineering team who have developed quite some patented unique technologies and designs which make SENCO products featured in Safe, Durable and Efficient.
Hope you will have chance to try our services, products, to work with our people.
A different experience--Simple & Relexed
SENCO Reactor, Glass Reactor, Heating Reactor, Vacuum Reactor, Integrative Reaction Flask, 1L 2L 5L, Experimental / lab model, Drip, Distillation, Oil Bath, High Vacuum,
