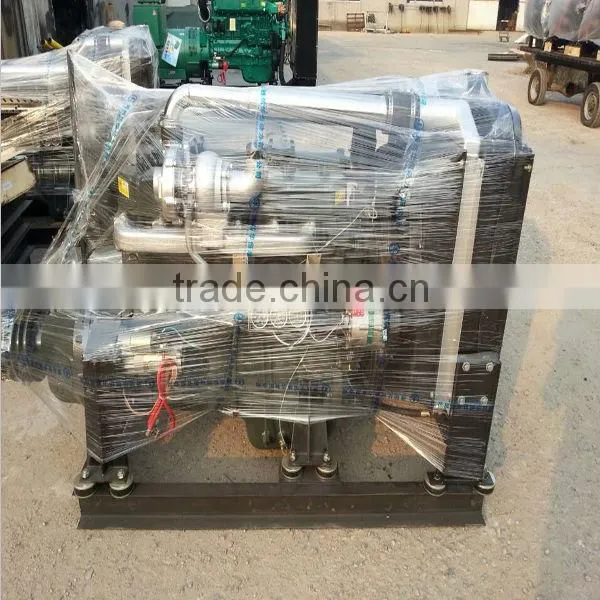

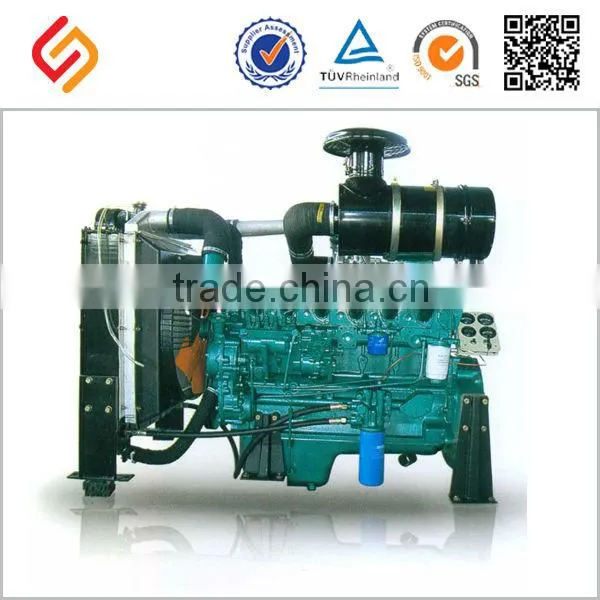

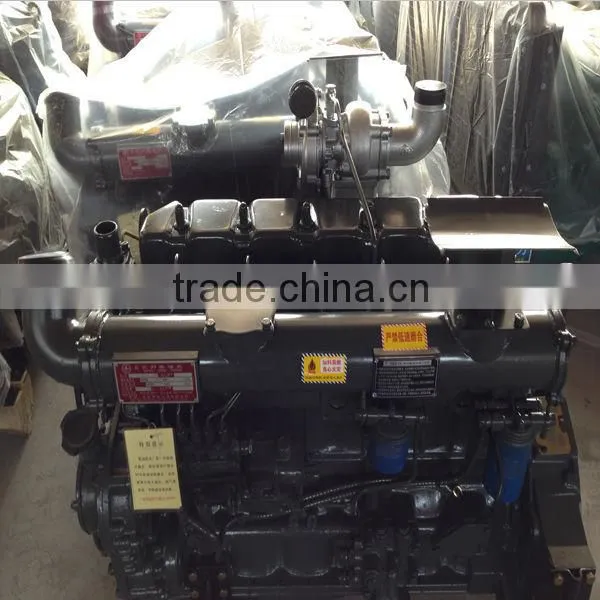

Brand New Design R6105AZLD Small Sailboat Diesel Marine Engine
US$ 500 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
weifang
Model Number:
R6105AZLD
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brand New Design R6105AZLD Chinese Small Sailboat Diesel Marine EngineUS$ 500 - 3,000MOQ: 1 Set -
Brand New Design R6105AZLD Small Sailboat Diesel Marine Engine Heavy EngineUS$ 500 - 3,000MOQ: 1 Set
-
Brand New Design R6105AZLD 50hp Small Sailboat Diesel Engine Used Motor OilUS$ 500 - 3,000MOQ: 1 Set
-
30.1KW Generator Set or Water Pump Setmachine EngineUS$ 900 - 1,200MOQ: 1 Set
-
Brand New Design R6105AZLD 50hp Small Sailboat Used Diesel EnginesUS$ 500 - 3,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
weifang
Model Number
R6105AZLD
Output Type
AC Three Phase
Speed
1500 r/min
Frequency
50Hz
Rated Power
110kw
Rated Voltage
400/230V
Rated Current
198A
diesel marine engine Description:
1>Main Technical Paramnters of R6105 Diesel Engine:
| Model | Number of Cylinder-Bore*Stroke(mm) | Intake Type | Rated Power/Speed(KW/r/min) |
Fuel Consumption g/kw.h |
Net Weight(kg) | Application |
| R6105AZLCD | 6-105*130 | Turbocharge and intercoolded |
110/1500 | 224 | 685 | Auxiliary and Main Marine Engine |
| R6105D1 | 6-105*125 | Natural Aspirated | 58/1500 | 231 | 525 | Genset |
| R6105ZD1 | 6-105*125 | Turbocharged | 84/1500 | 231 | 570 | Genset |
| R6105AZD | 6-105*130 | Turbocharged | 90/1500 | 231 | 575 | Genset |
| R6105ZLD | 6-105*125 | Turbocharge and intercoolded | 100/1500 | 224 | 595 | Genset |
| R6105AZLD | 6-105*130 | Turbocharge and intercoolded | 110/1500 | 224 | 600 | Genset |
| R6105IZLD | 6-105*135 | Turbocharge and intercoolded | 132/1500 | 224 | 610 | Genset |
| R6105D2 | 6-105*125 | Natural Aspirated | 68/1800 | 231 | 525 | Genset |
| R6105ZD2 | 6-105*125 | Turbocharged | 94/1800 | 231 | 570 | Genset |
| R6105P | 6-105*125 | Natural Aspirated | 72/2000 | 239 | 625 | Stationary Work |
| R6105ZP | 6-105*125 | Turbocharged | 105/2000 | 239 | 670 | Stationary Work |
| R6105ZG-20 | 6-105*125 | Turbocharged | 98/2000 | 239 | 685 | AirCompressor Power |
| R6105AZG-20 | 6-105*130 | Turbocharged | 106/2000 | 239 | 690 | AirCompressor Power |
| R6105AZLG-20 | 6-105*130 | Turbocharge and intercoolded | 124/2000 | 239 | 710 | AirCompressor Power |
| R6105IZLG-18 | 6-105*135 | Turbocharge and intercoolded | 136/1800 | 239 | 730 | AirCompressor Power |
| R6105C | 6-105*125 | Natural Aspirated | 54/1500 | 231 | 600 | Auxiliary and Main MarineEngine |
| R6105ZC | 6-105*125 | Turbocharged | 78/1500 | 231 | 610 | Auxiliary and Main MarineEngine |
| R6105ZLC | 6-105*125 | Turbocharge and intercoolded | 98/1500 | 224 | 680 | Auxiliary and Main MarineEngine |
| R6105AZLC | 6-105*130 | Turbocharge and intercoolded | 110/1500 | 224 | 685 | Auxiliary and Main MarineEngine |
| R6105ZCD | 6-105*125 | Turbocharged | 78/1500 | 231 | 610 | Auxiliary and Main MarineEngine |
| R6105ZLCD | 6-105*125 | Turbocharge and intercoolded | 98/1500 | 224 | 680 | Auxiliary and Main MarineEngine |
2>R6105AZLD Technical Specification
| Model | R6105AZLD |
| Intake Type |
Turbocharge and Intercoolde |
| Rated Power(KW) | 110 |
| Rated Speed(r/min) | 1500 |
| Fuel Consumption(g/kw.h) | <=224 |
| Application | Genset 100KW |
3>Diesel Engine Advantages
| Manufacturer | Our diesel engine manufacturer in China, Diesel Engine Seller and Chinese Diesel Engine |
| Partssupply system | Origin weichai engines |
| D&R | Our team/experts have more than 15 experience in this field |
| Certificates | TUV CE |
| Services | Engineers available to service machinery overseas |
4>Diesel Engine Packaging&Delivery
| Packaging Details | Standard wooden case packed |
| Deliery Details | 7days |
5>Diesel Engine Services
Warranty Iterms |
Our own simple and quick factory |
|
Warranty Period |
12 monthes or 1500 working hours from commissioning date |
|
Parts Replacement |
Parts replacement under warranty will be sent to buyers without charges; |
|
Duty |
Problems caused by customer's incorrect operation will be covered by the user |
|
Maintanence |
Part use for overhual and ordinary maintanence will be offered by us in factory price |
|
Service |
Skillful engineers of us are available dispatched to customers place for training and service |
|
